Trailed Sprayers

IMG_2301

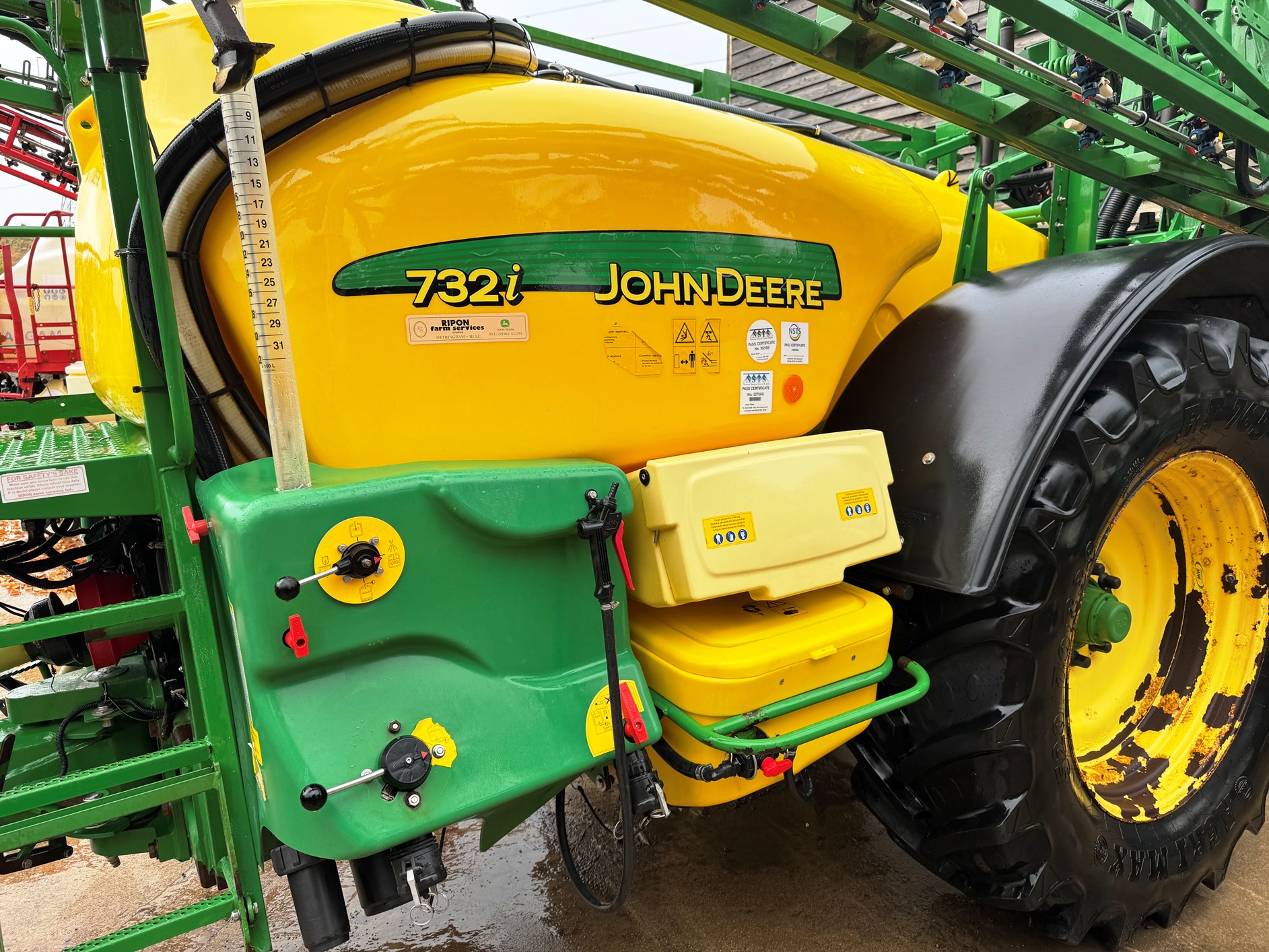

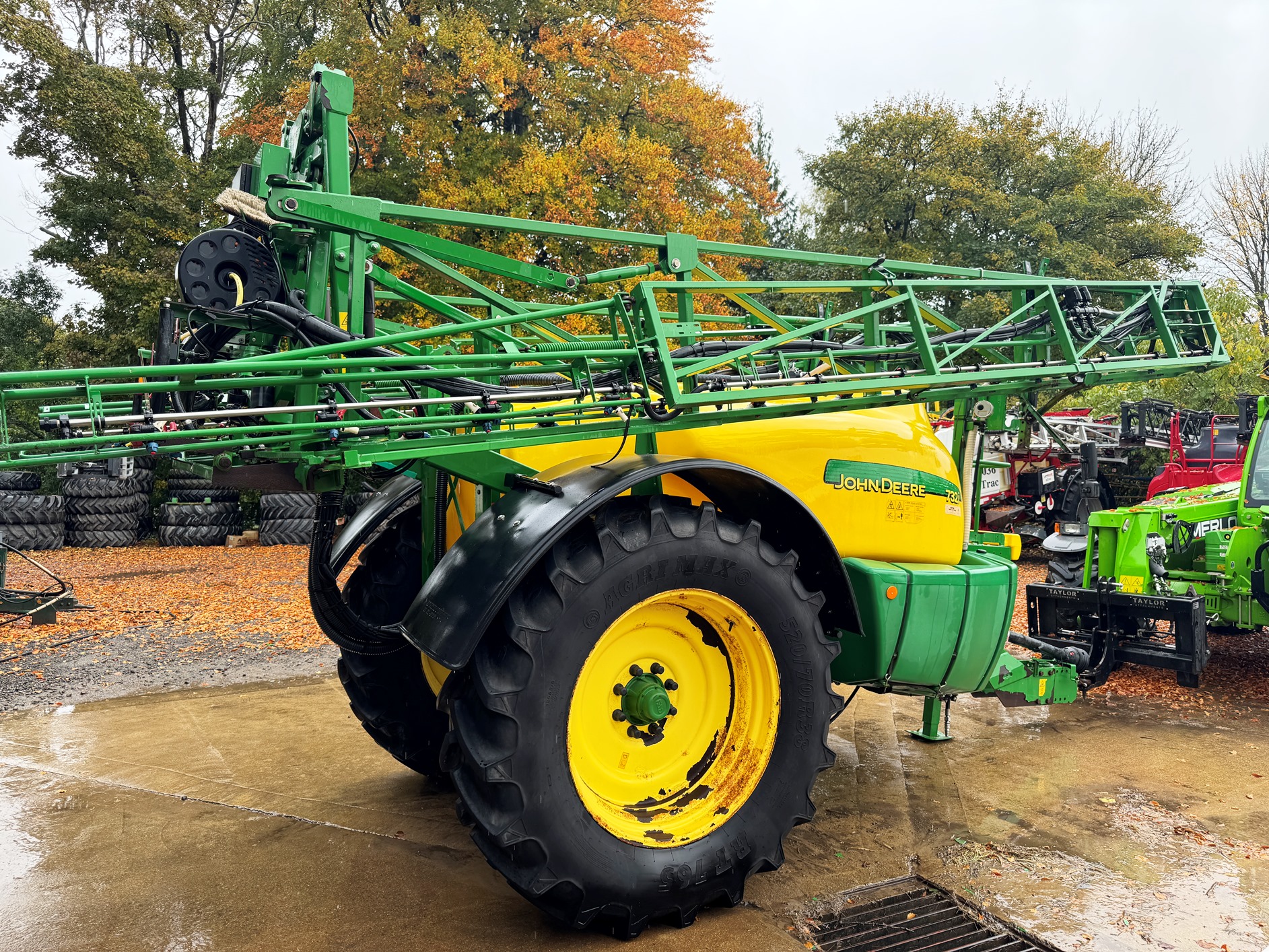

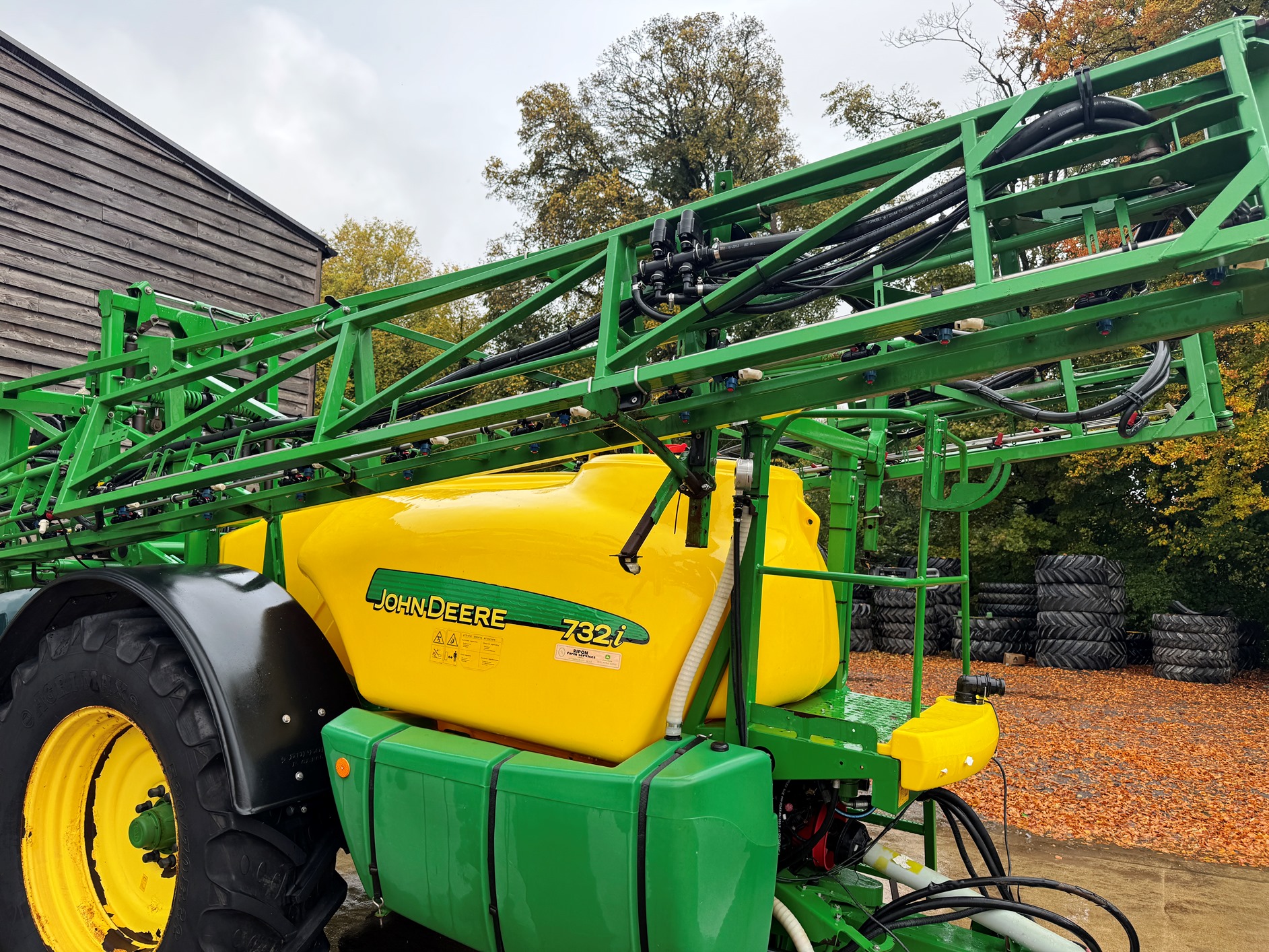

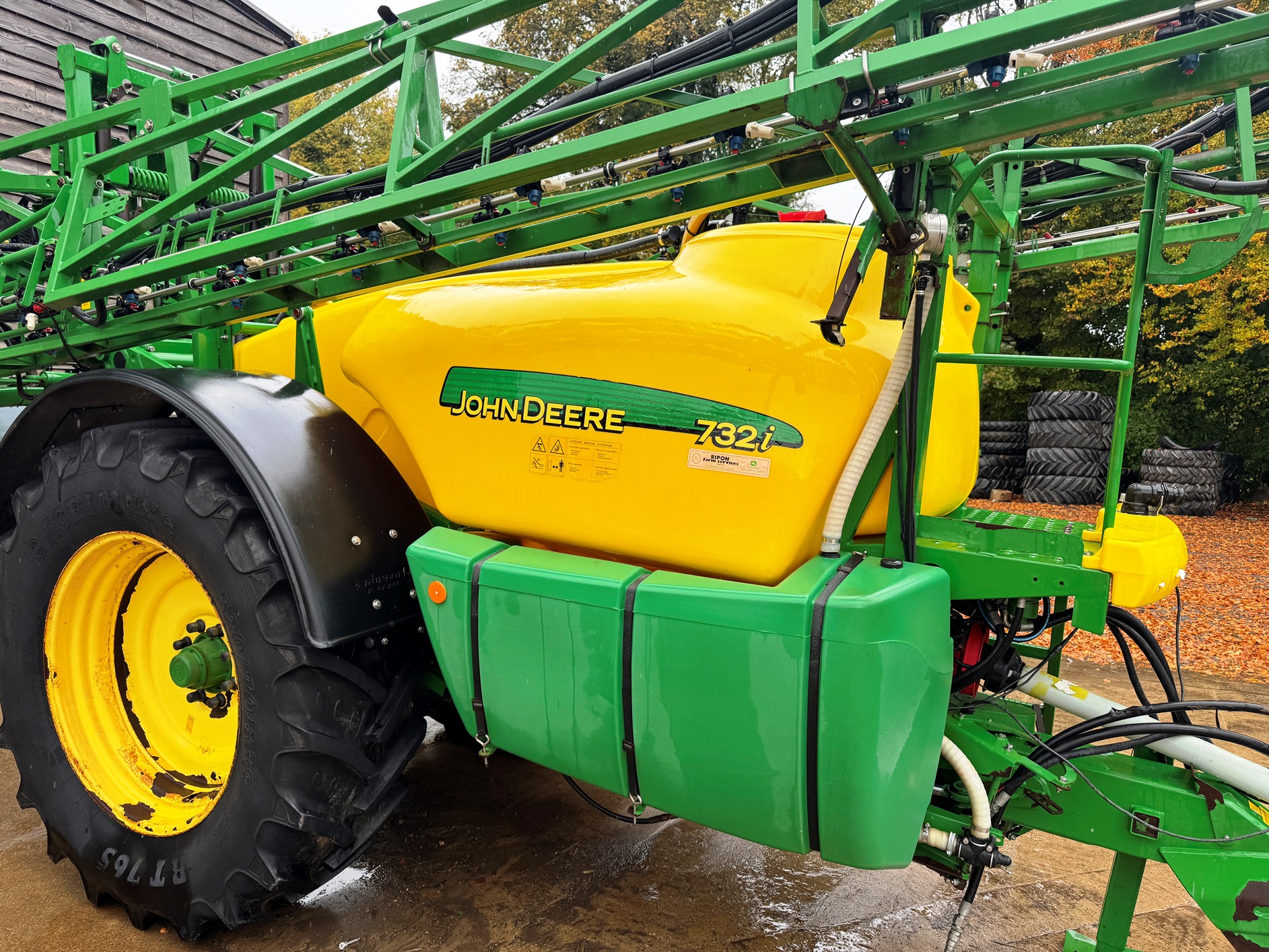

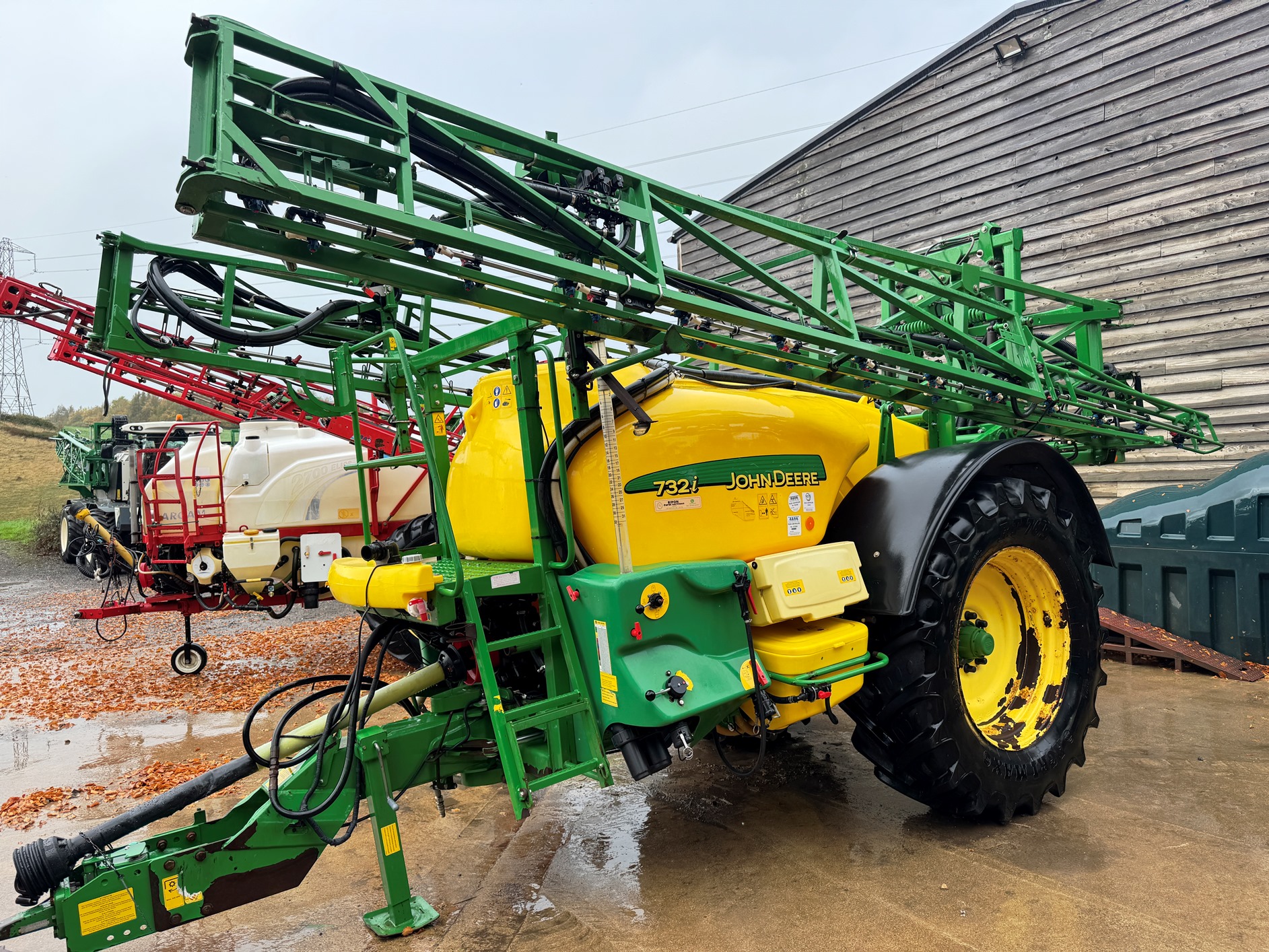

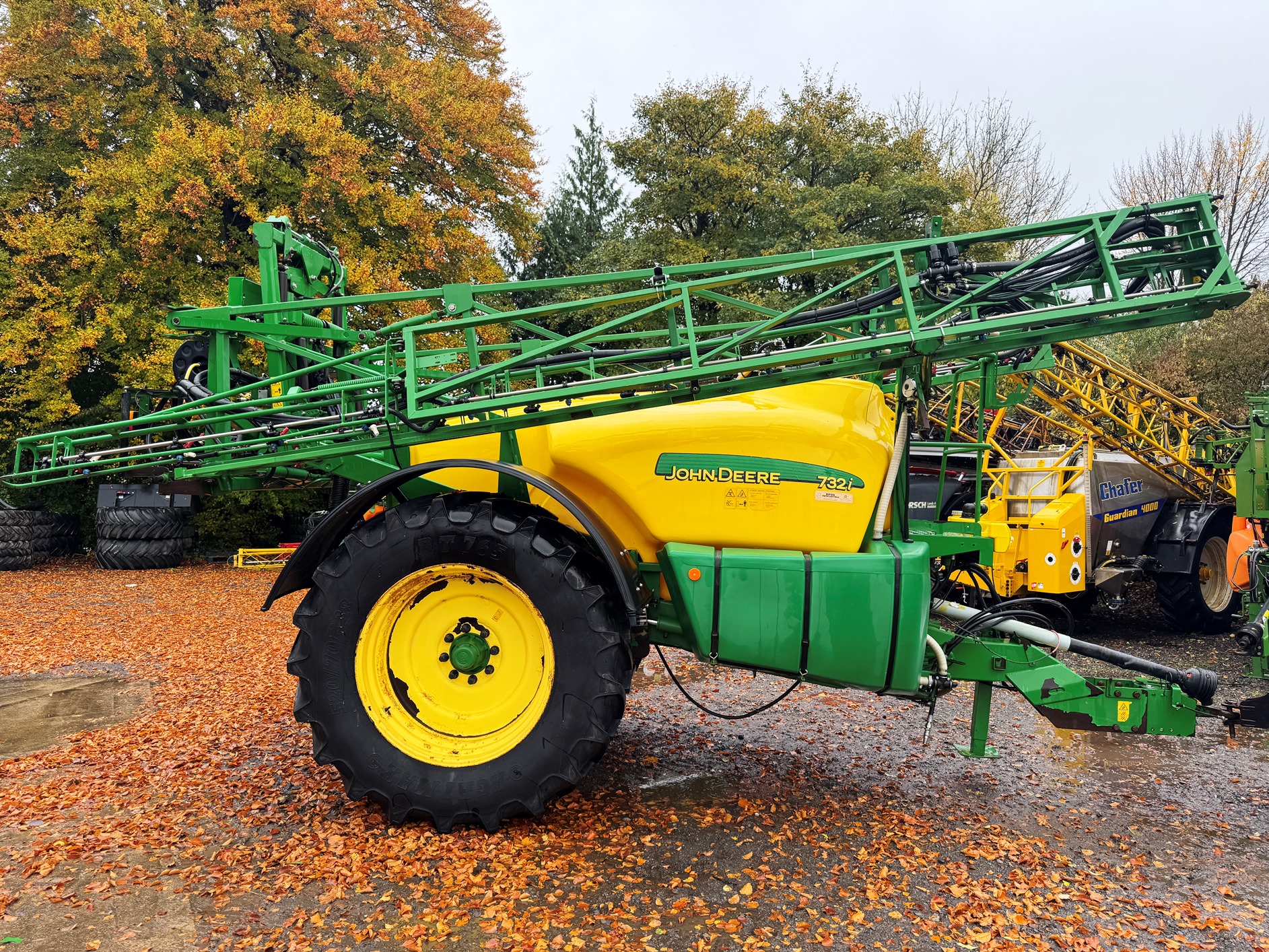

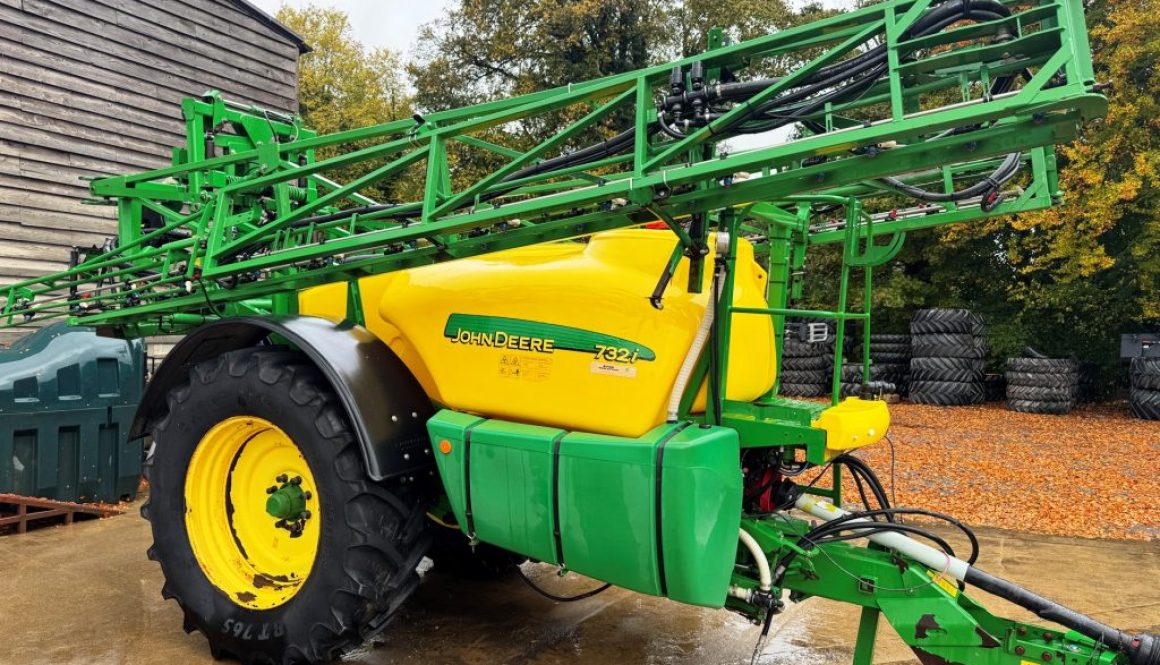

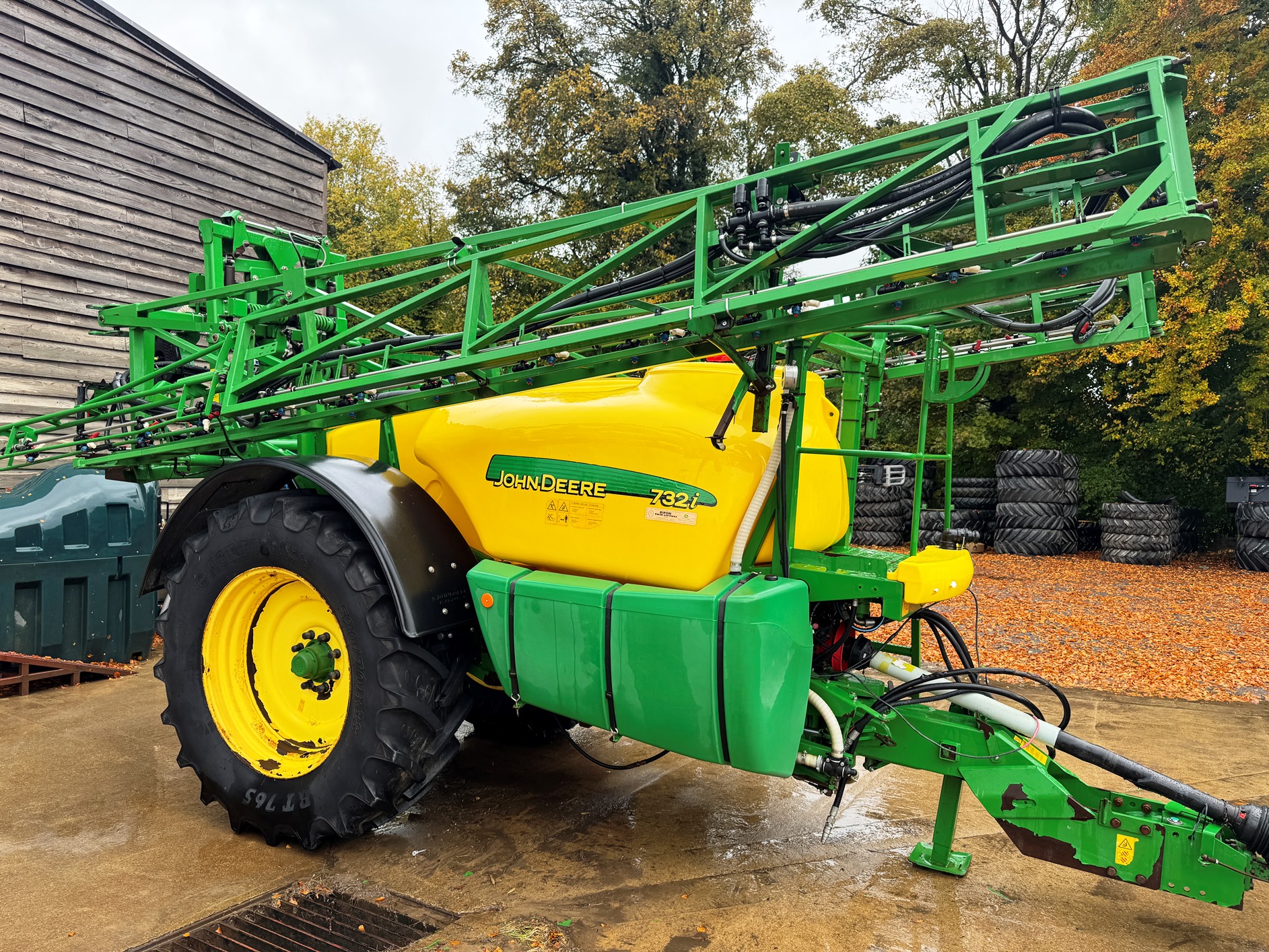

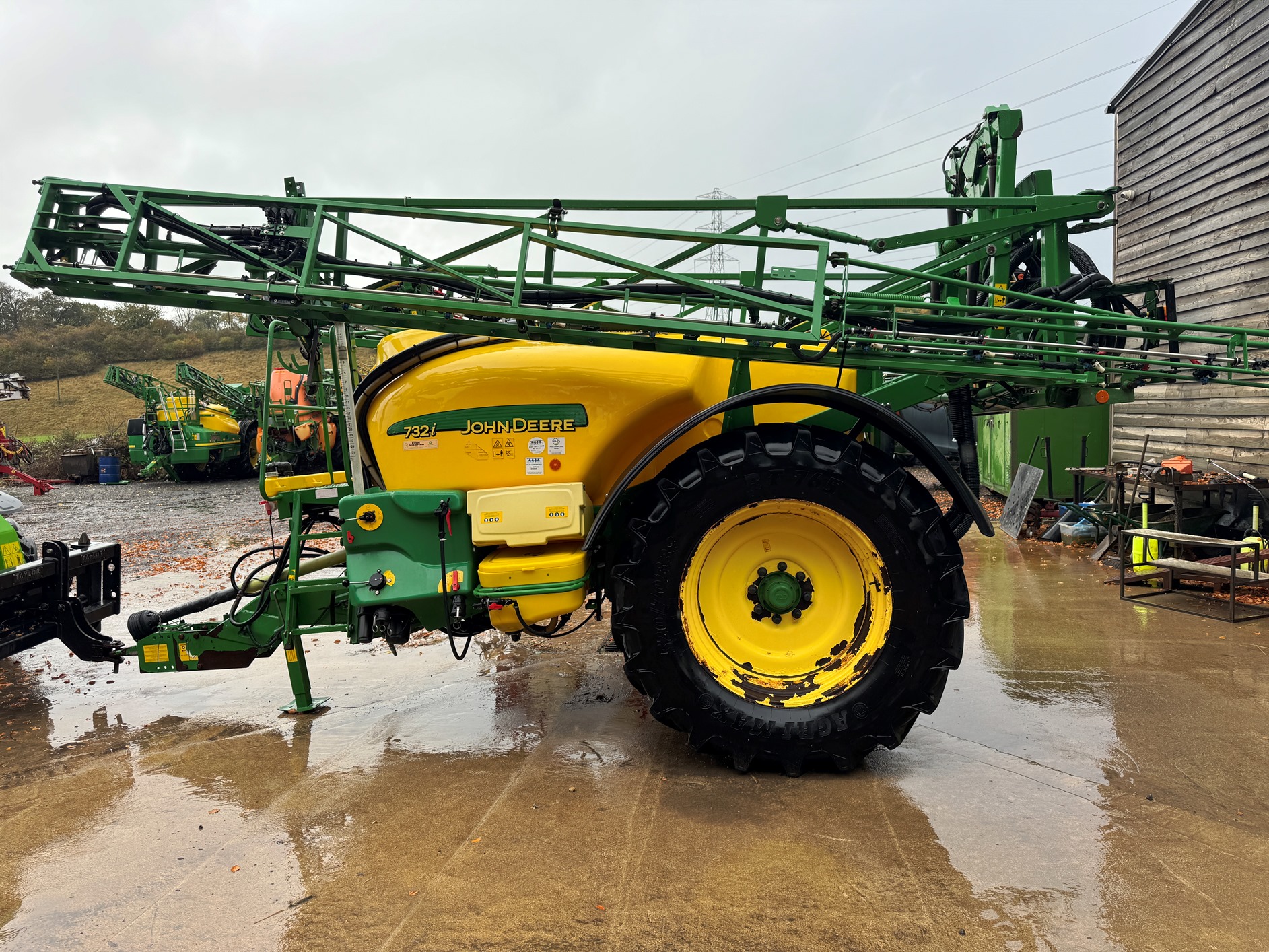

John Deere 732i 24m – 2012

Serial number: 1WZ0732XP00120598

Age and condition:
Model year: 2012
Condition: Except for the wheels, which need a re-spray, the sprayer is good for the year, paint good mainly and all very straight with no damage or repairs.
Model Type: TRSP700-25-732

Sprayer specification:
3200 lt tank with full in field tank rinsing (400 lts clean water)
Fully automatic steering
24m fully hydraulic booms mounted on Z parallel linkage with boom suspension and anti-yaw dampening
Boom lighting
Stainless steel pray lines fitted with 5 way nozzle bodies; 5 section.
All in cab controls with GPS section control
All plumbing controls controlled via two manual control taps on near side of sprayer
Low level chemical induction bowl with full can washing
Storage locker and clean water for hand washing (40lts)
Sprayer fitted with AR280BP lt/min piston diaphragm pump and self fill and pipe
Full chassis suspension with aeon progressive block
External wash down
Road lights, hydraulic braking and demount stand

Sprayer controls:
Isobus operation
GPS section control – 5 section
Supplied with: John Deere Isobus loom; GPS receiver bracket (no receiver); John Deere 2630 terminal – SUITABLE FOR NON ISOBUS TRACTOR

Wheel equipment:
Intermediary: BKT AGRI MAX 520/70R38 – 70% good

Supply options:

Ex yard as seen, NSTS status unknown, fully working ex farm: POA

OR

Supplied fully tested and a 12 month NSTS certificate: POA

IMG_2314

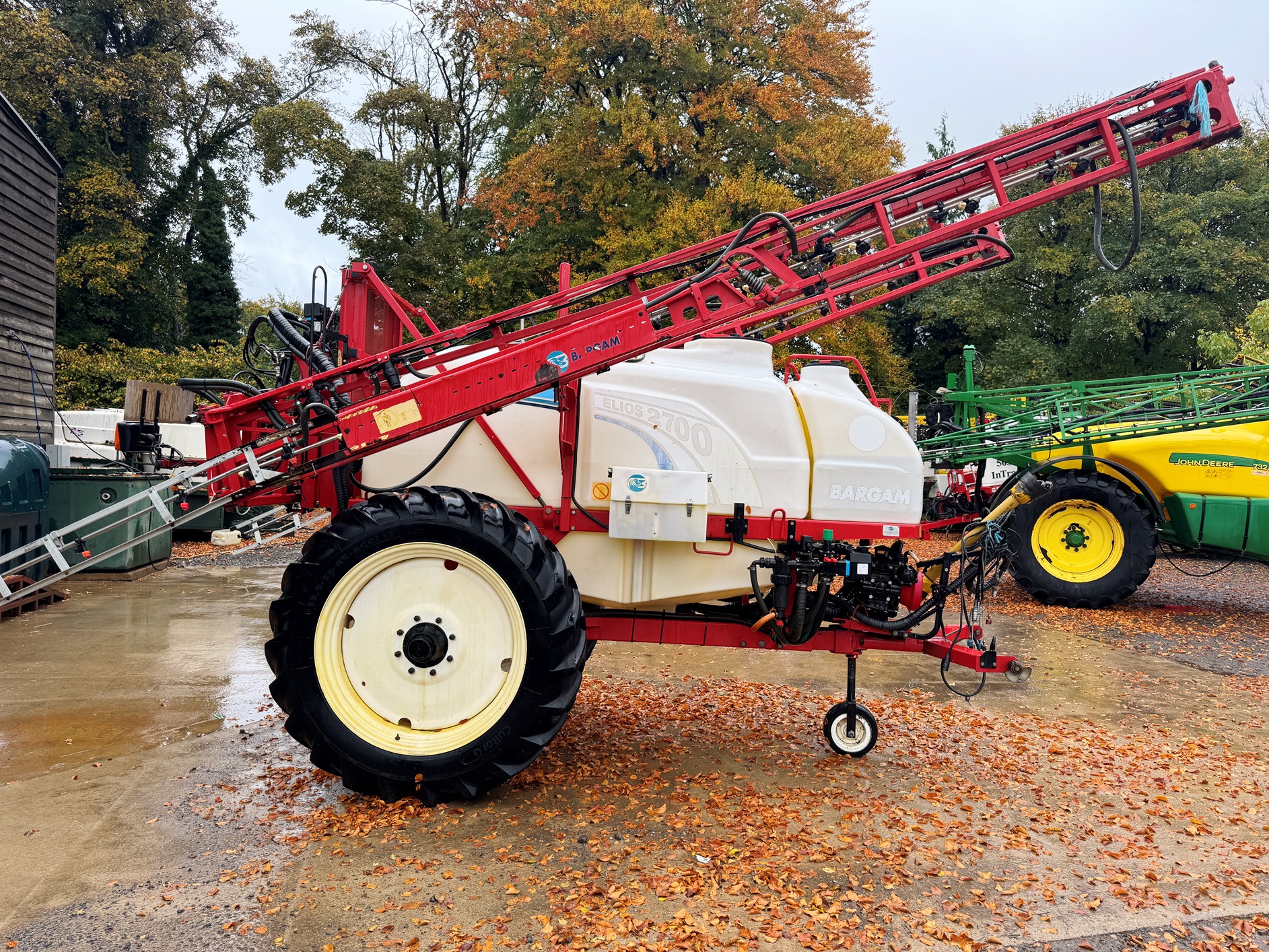

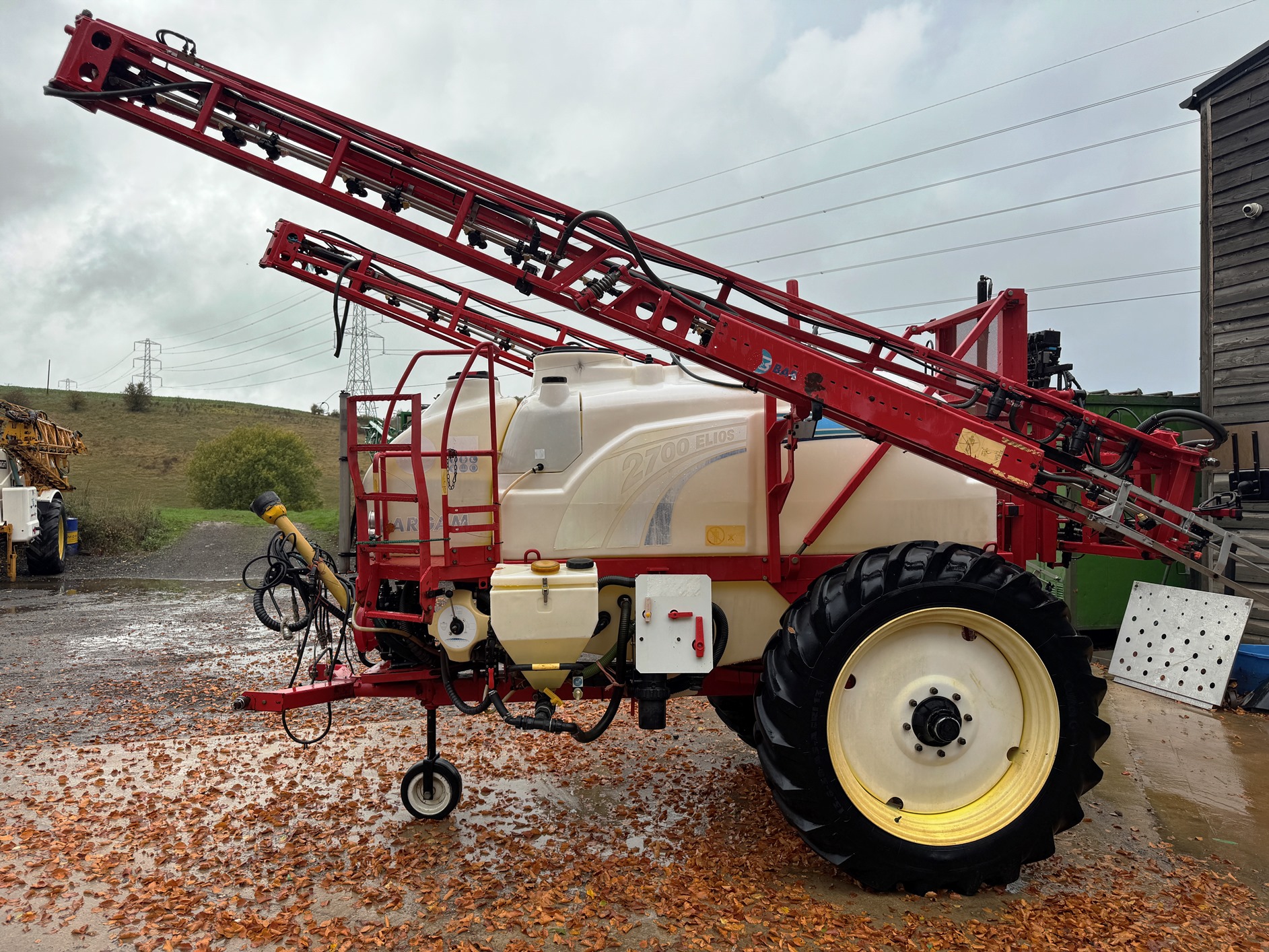

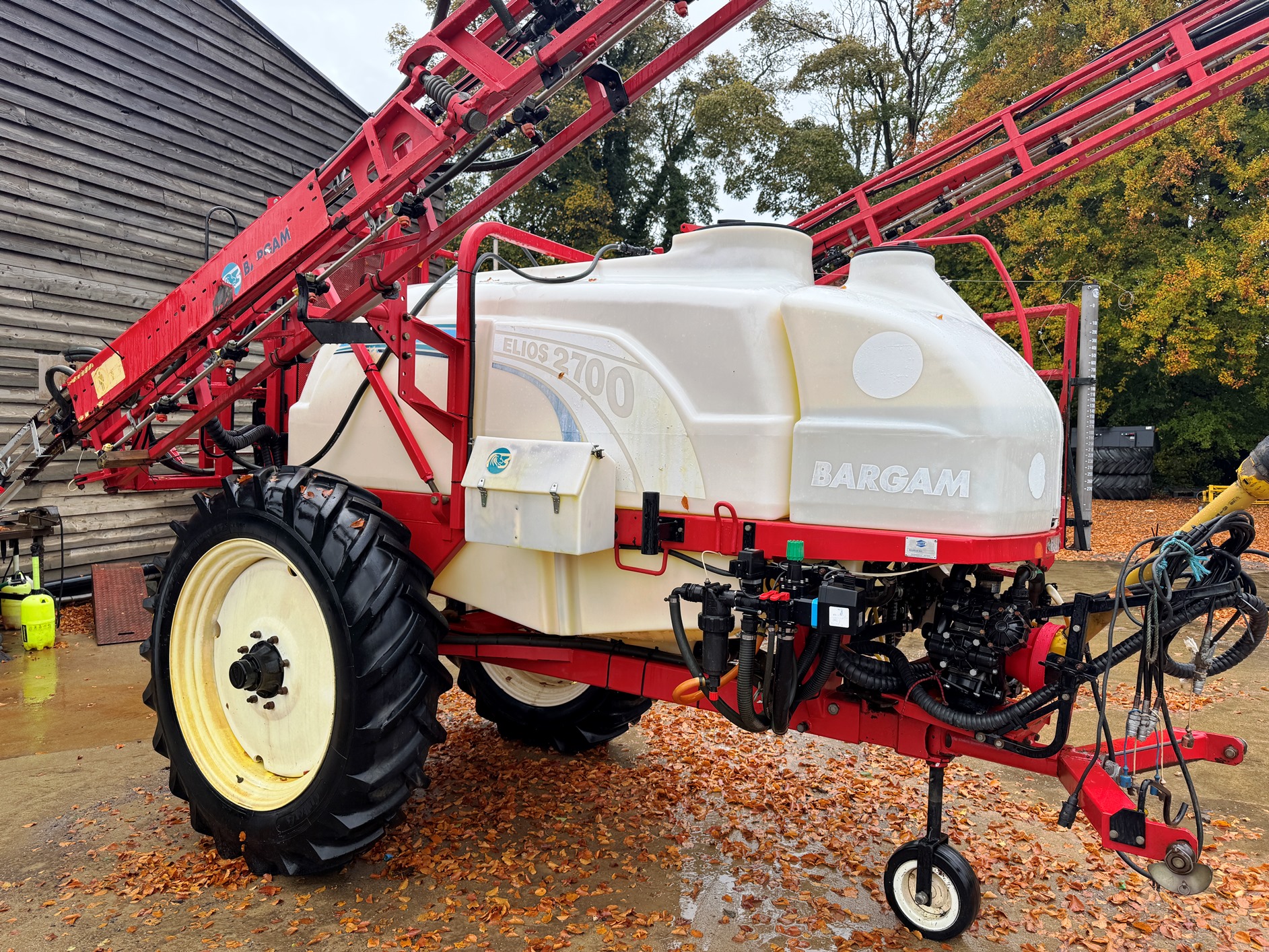

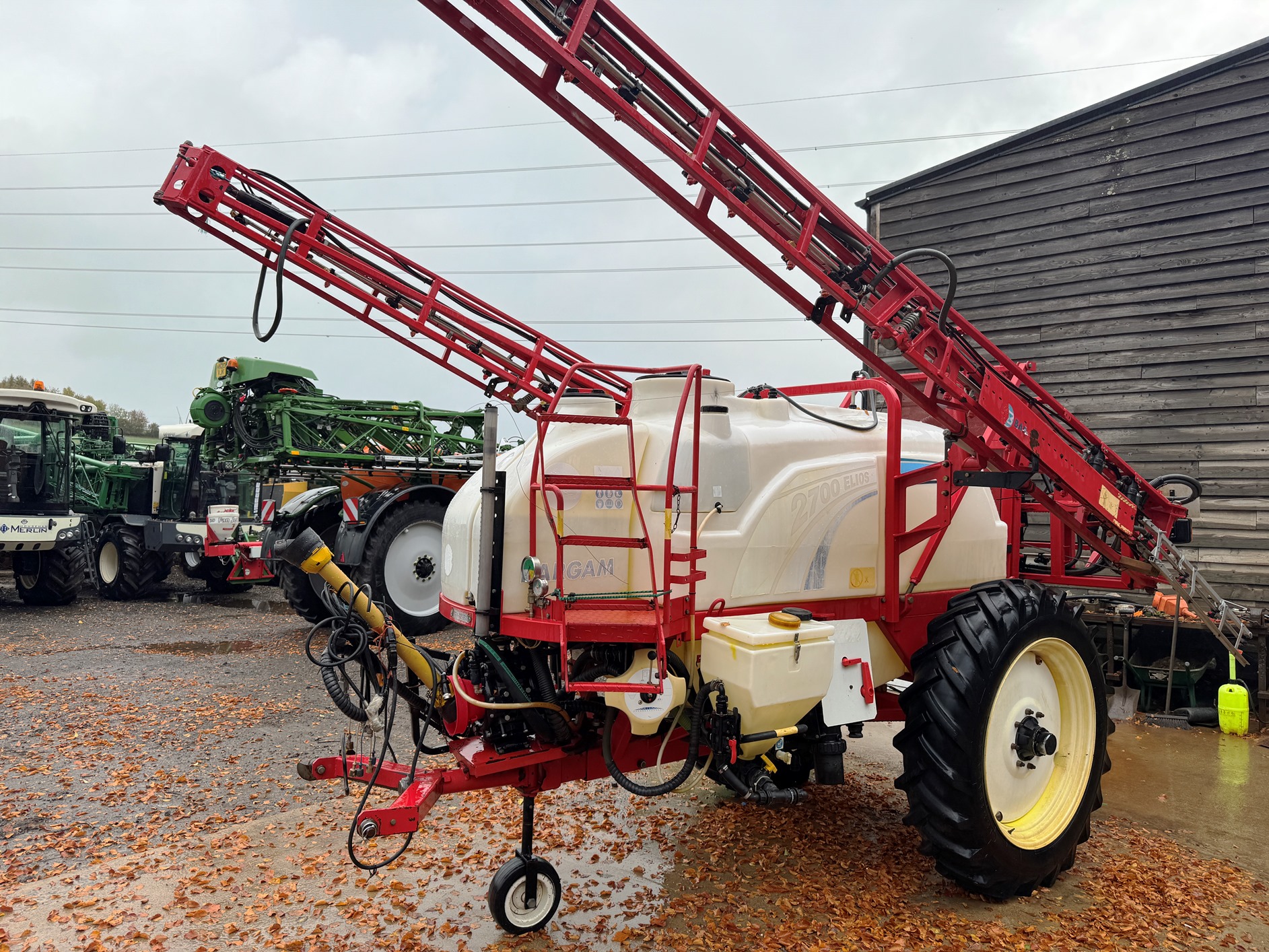

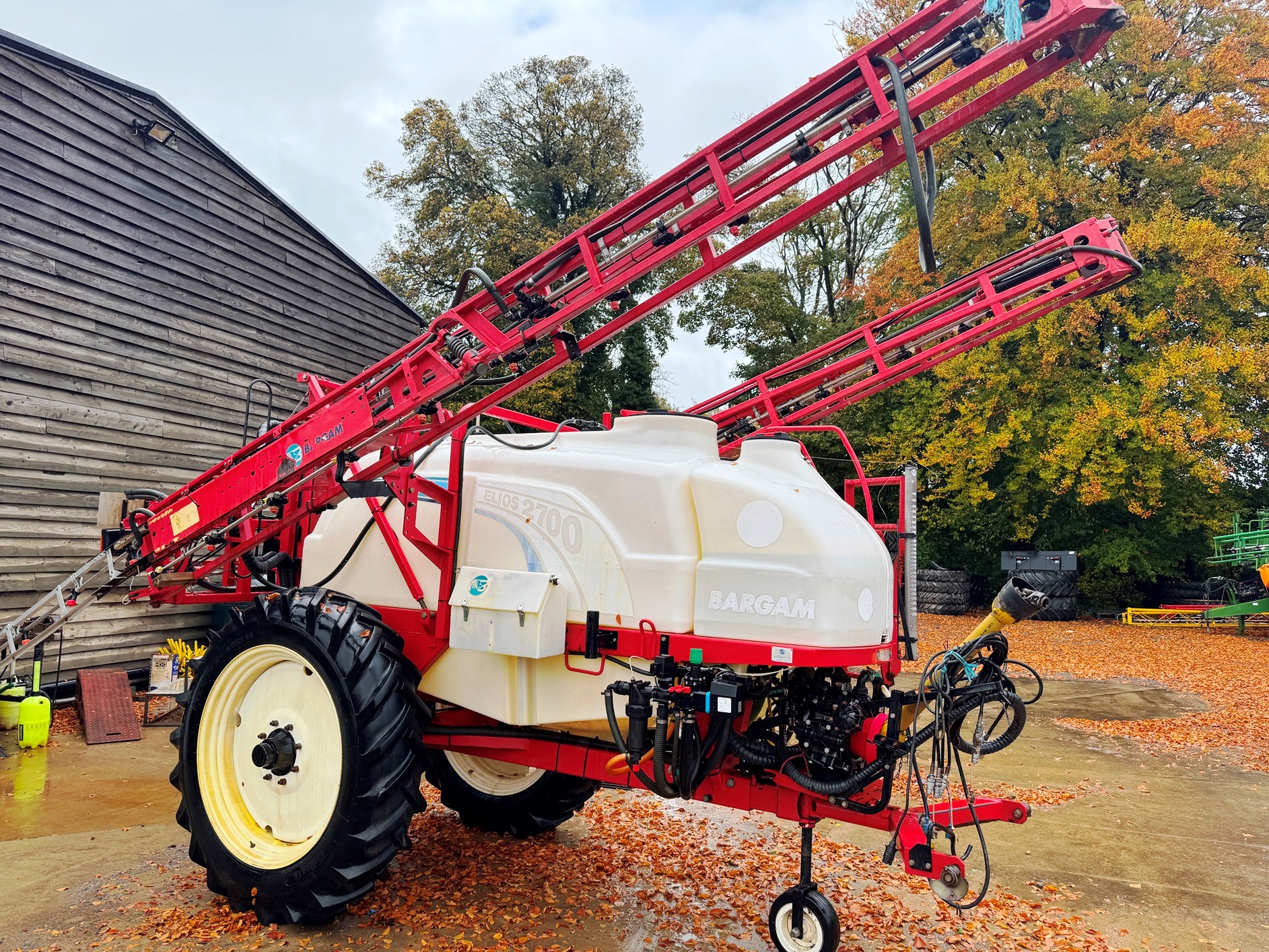

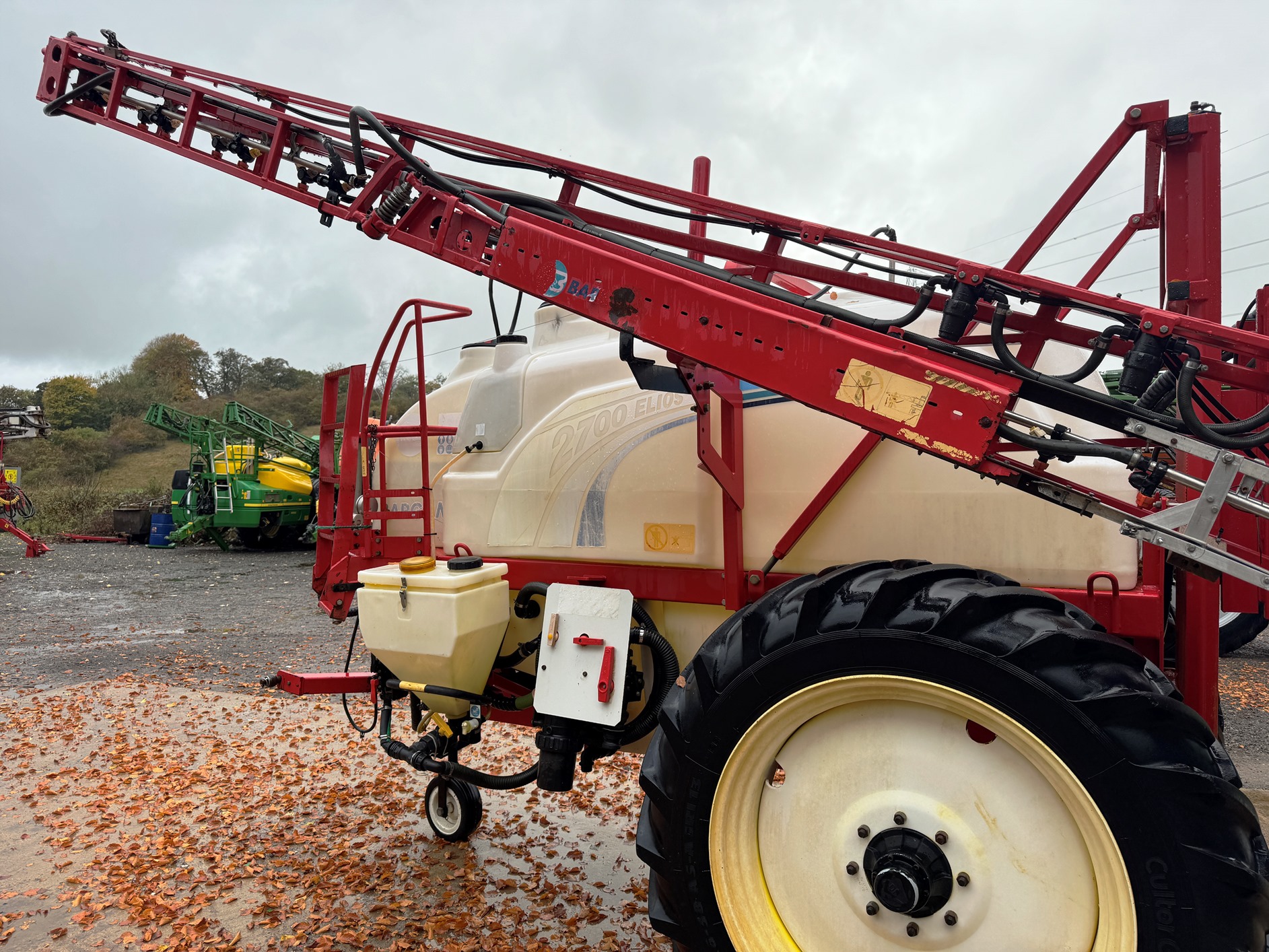

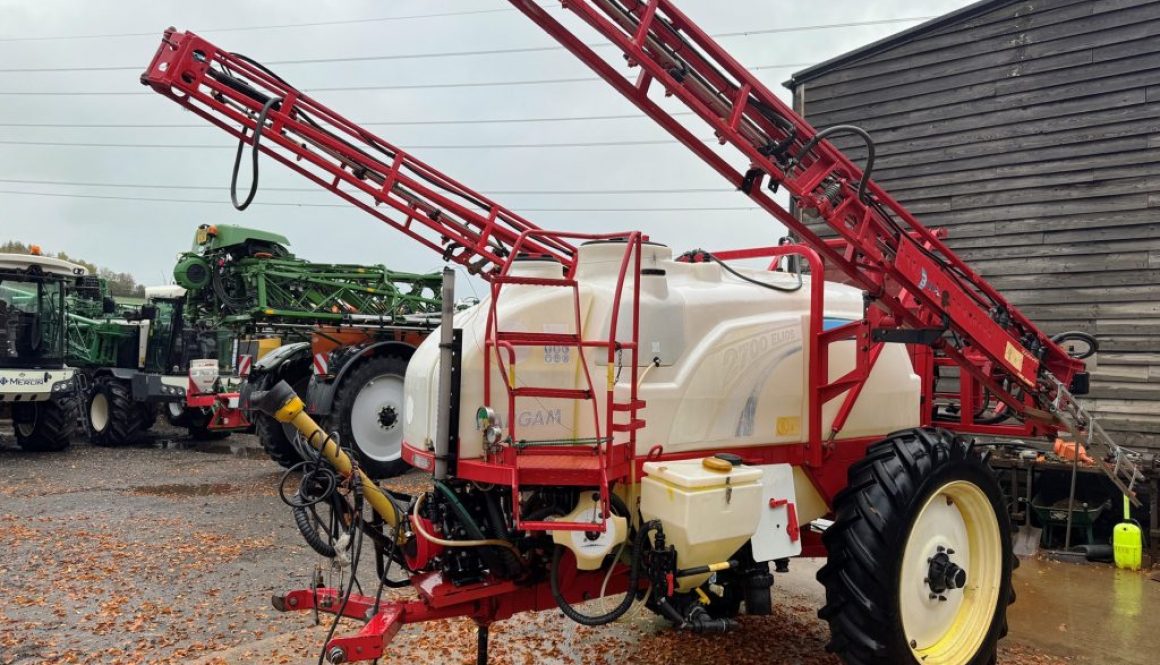

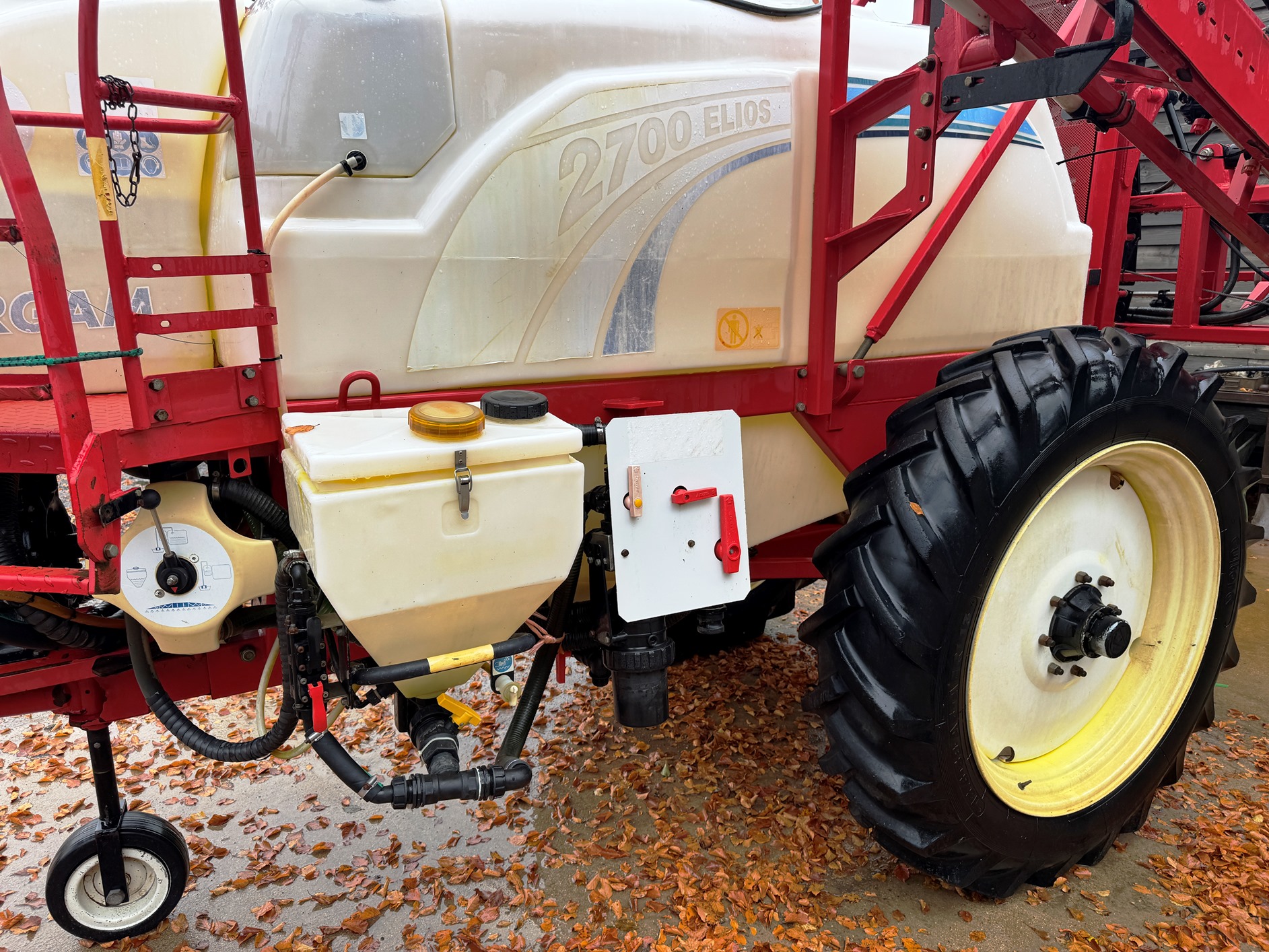

Bargam Fox 2700 24m – 2011

,

Serial number: 902050100

Age and condition:
Year: 2011
Condition: Not at all bad, paint is pretty good and all straight and works well ex farm

Sprayer specification:
2700lt GRP fully baffled tank
in field tank rinsing and separate clean water tank
Self tracking draw bar
24m gull wing booms with hydraulic fold, raise and lower, boom tilt
Boom fitted with manual end break backs
5 section controls
stainless steel spray lines fitted with tri-jet nozzle assemblies
Full in cab sprayer controls via Arag Bravo 180 S control box and auto rate
Three stage filtration, self-fill and suction hose
Fitted with a AR 6 diaphragm piston pump 2450 lts/min, PTO drive
Low level chemical induction bowl with can wash
Hand wash facilities and protective clothes locker
Full road lights

Control systems:
Arag Bravo 180S controller – full auto rate

Wheel equipment:
Intermediary: Cultor 13.6 R 38 – 60% good

Supply options:

Sold ex yard as seen, fully working ex farm: £2,750.00 plus vat

OR

Suppied fully tested and a 12 month NSTS certificate: POA

IMG_2324

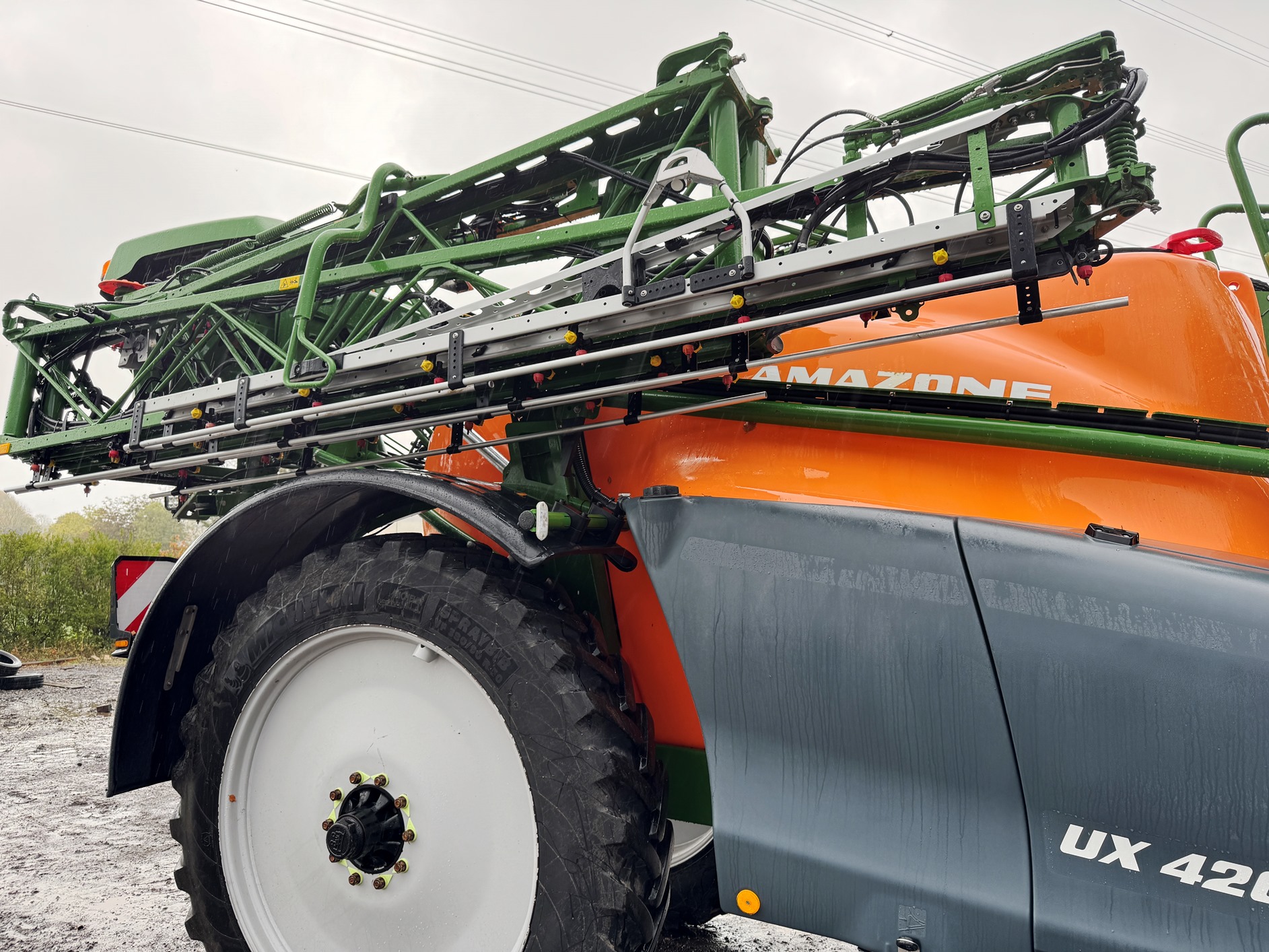

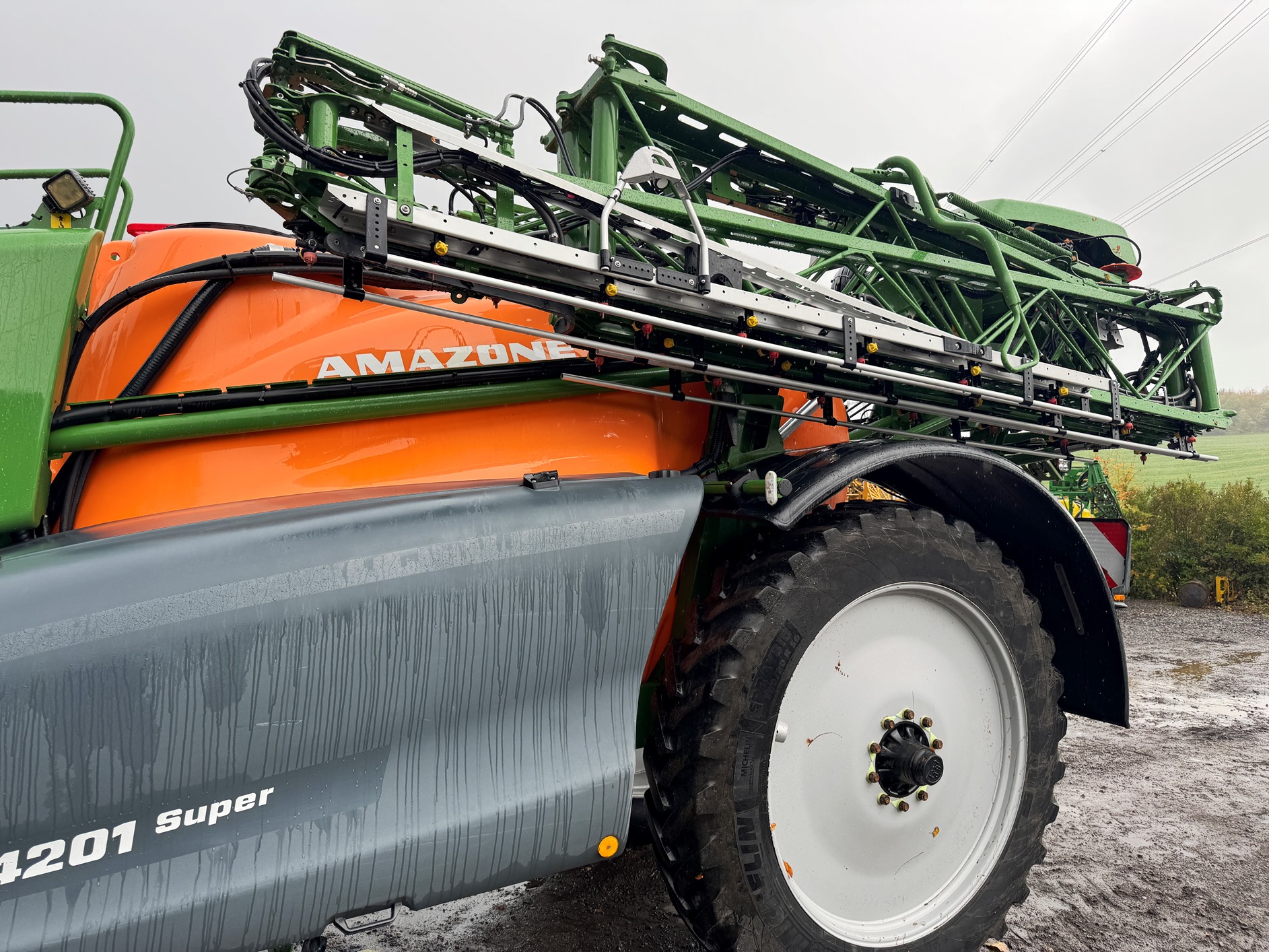

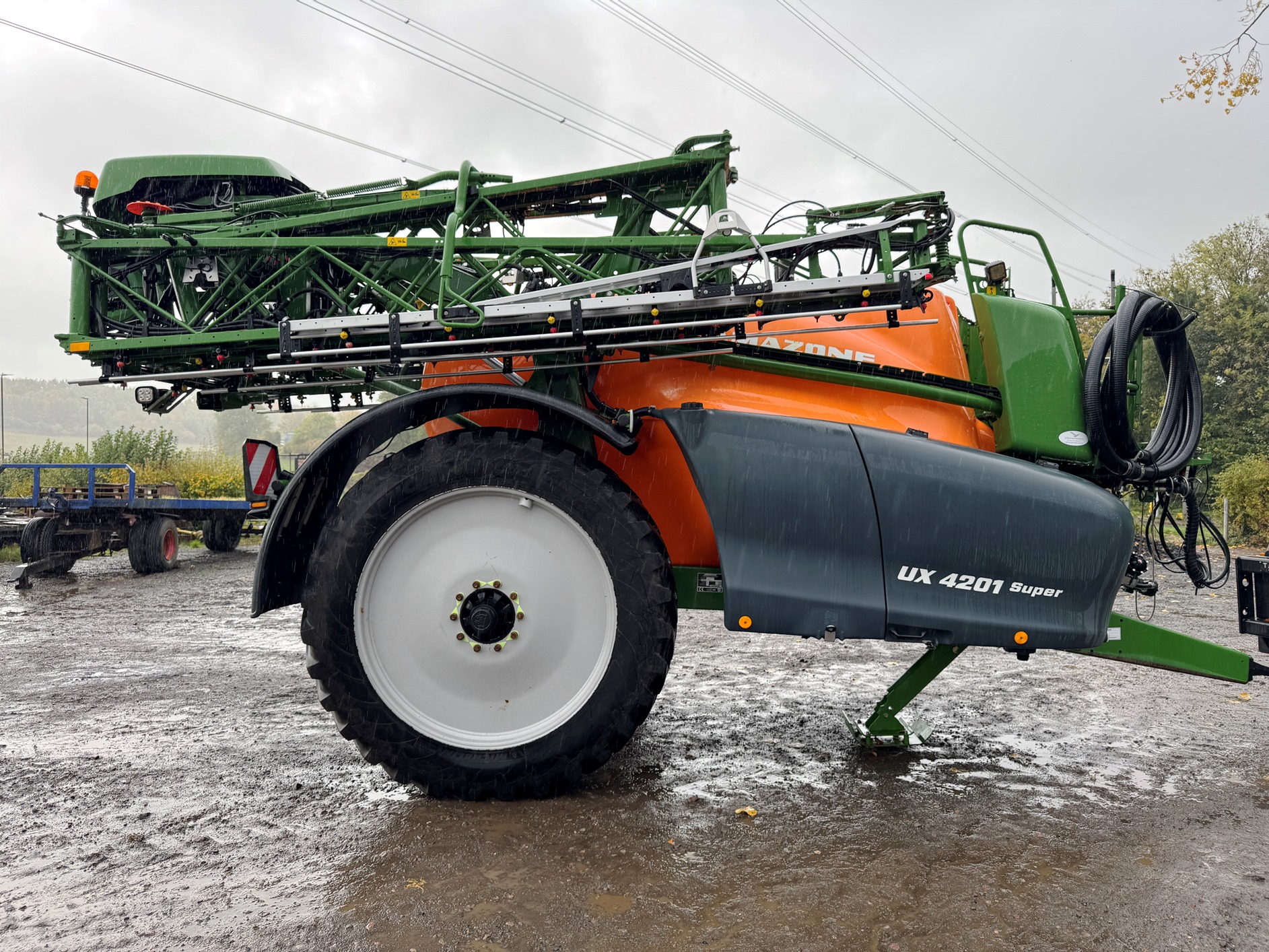

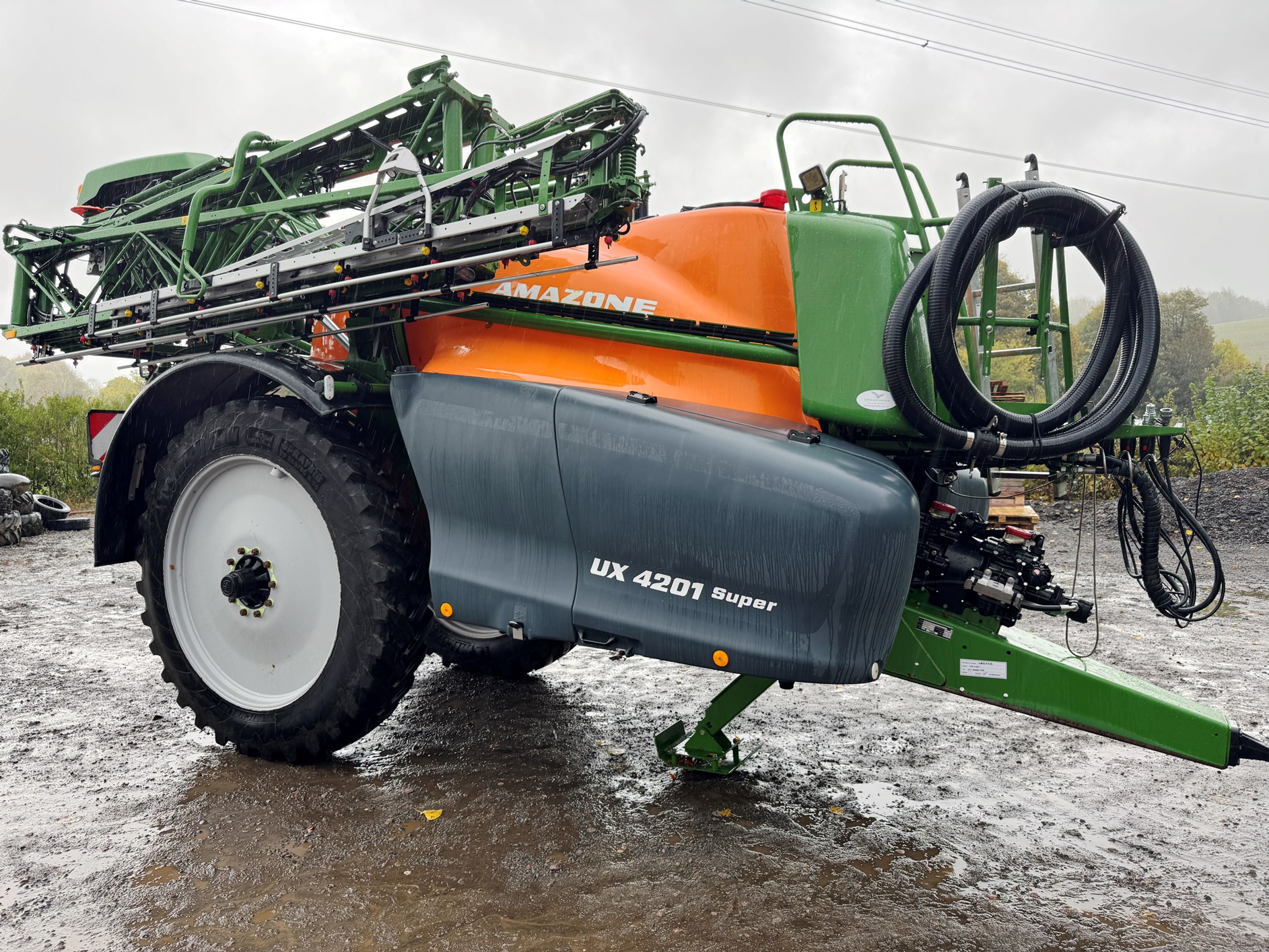

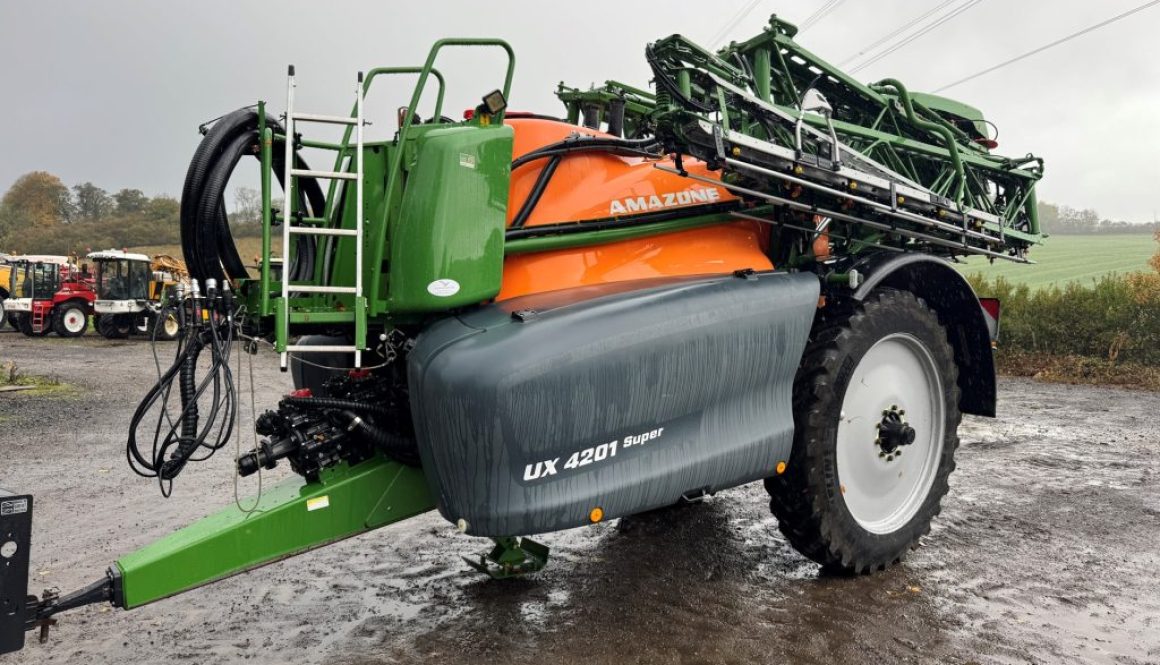

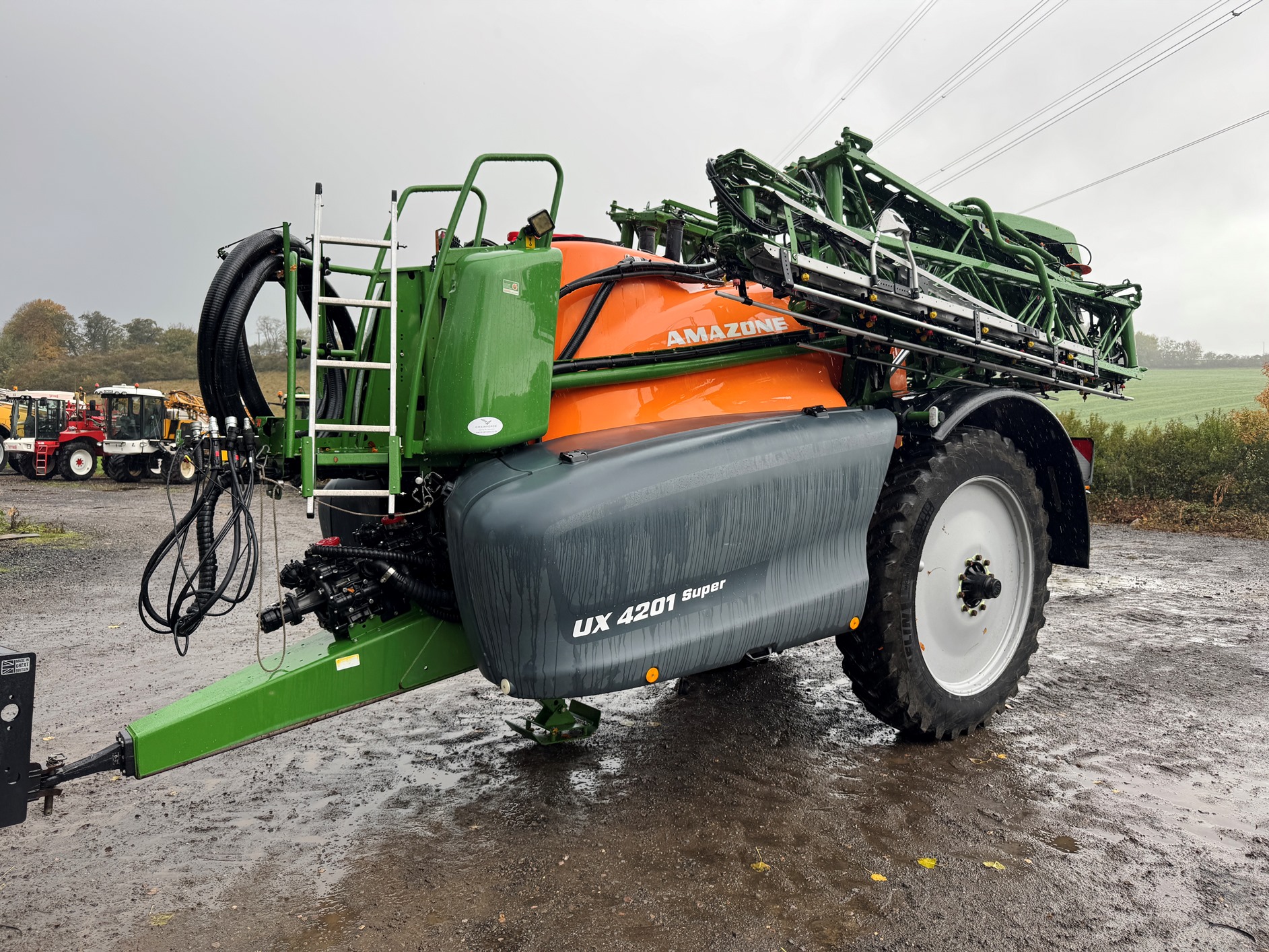

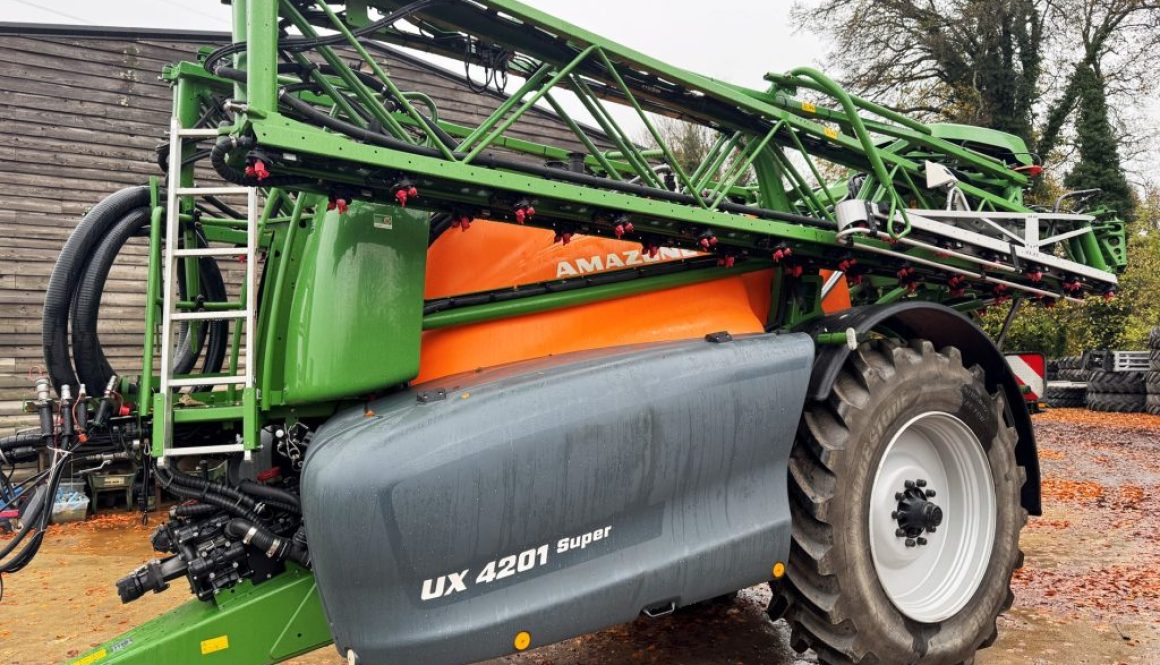

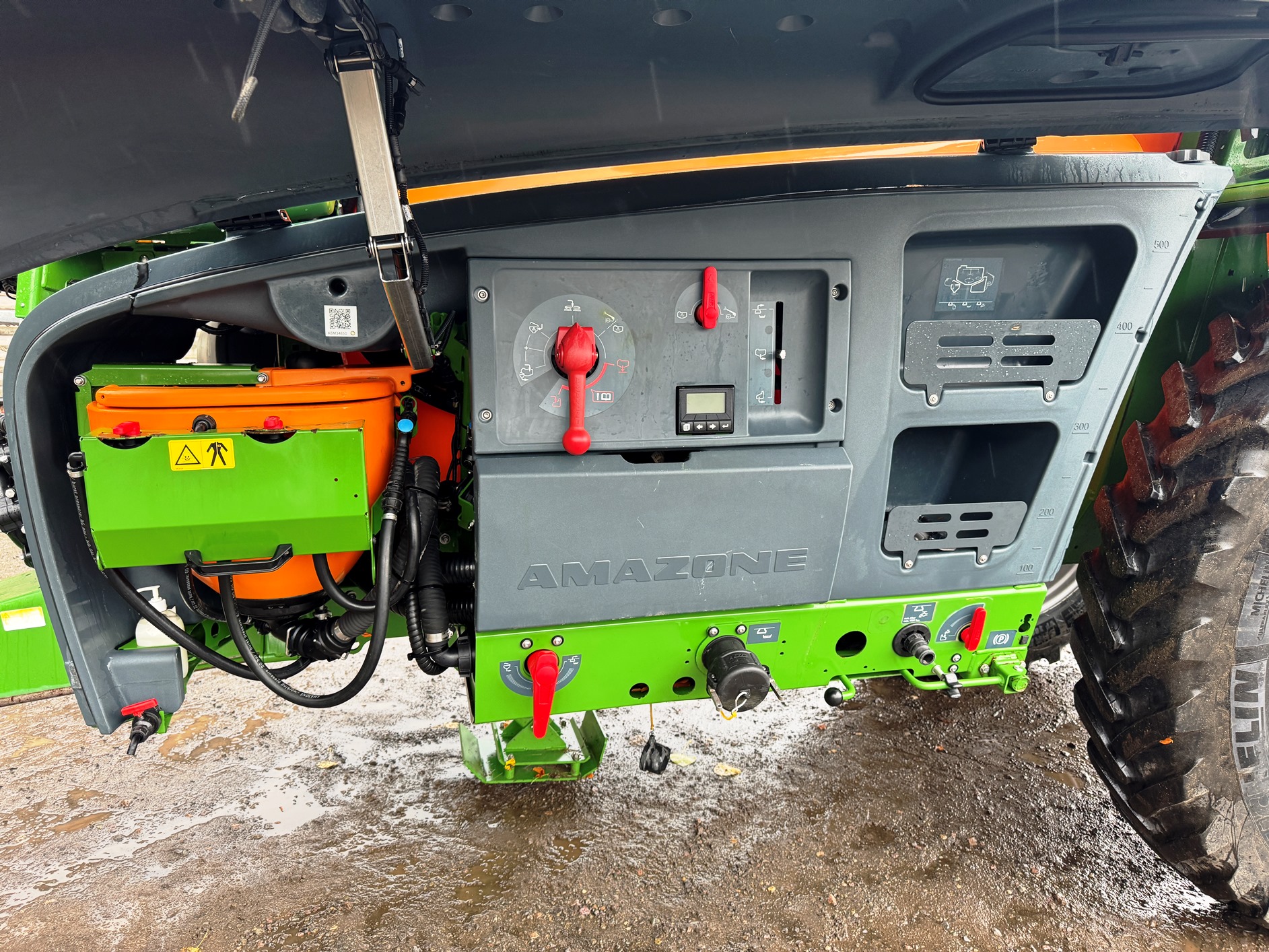

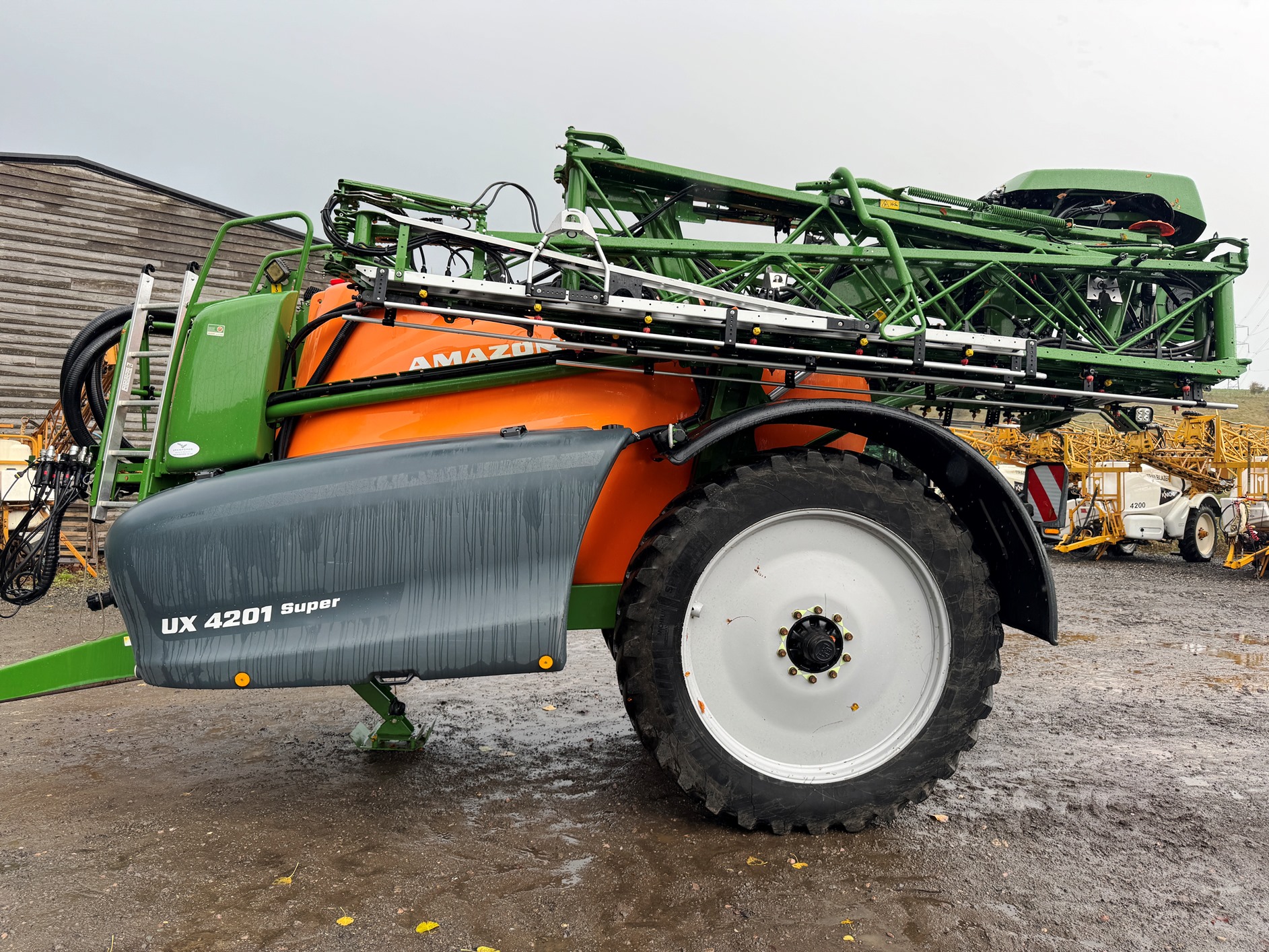

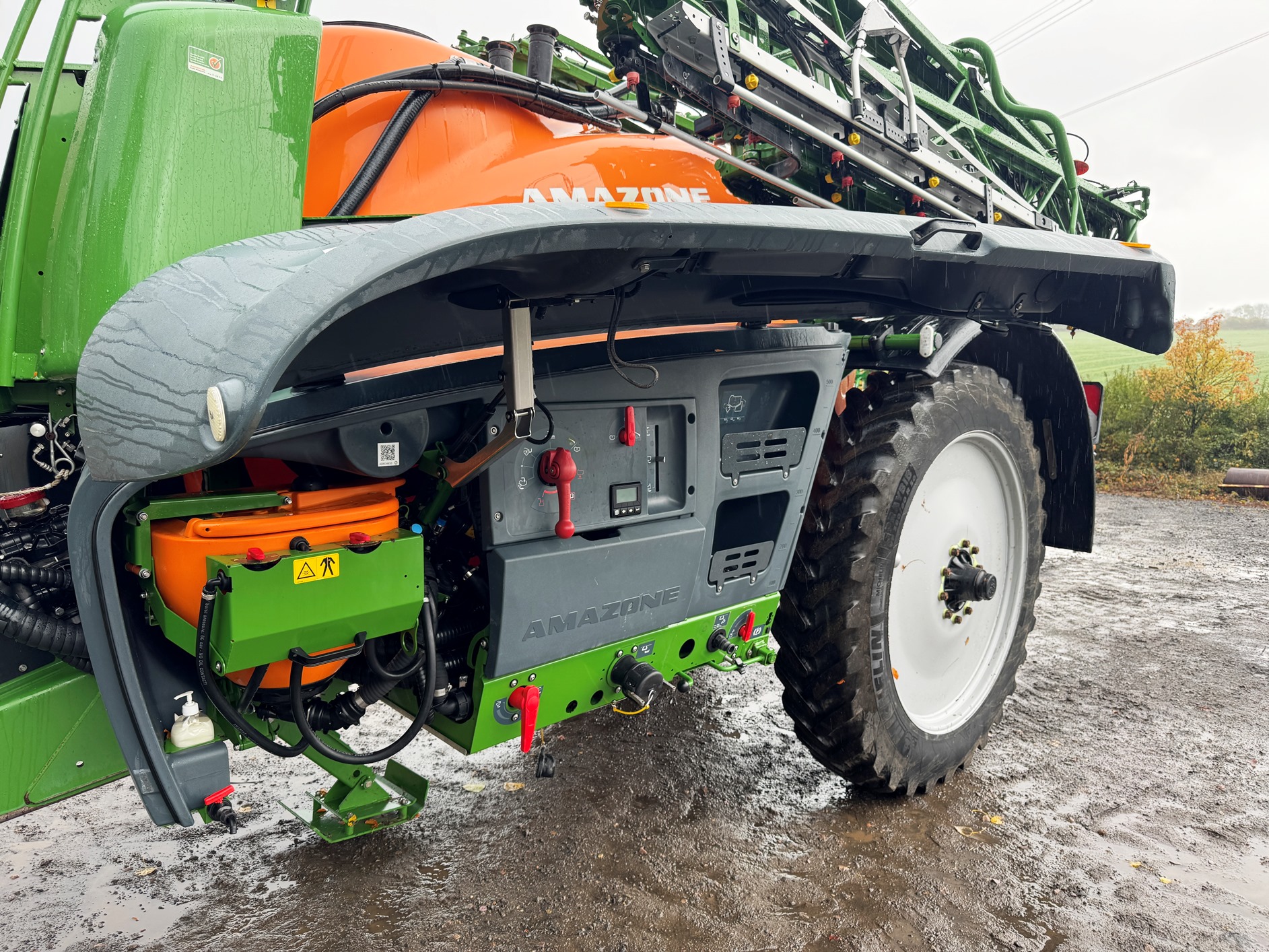

Amazone UX4201 Super 30m – 2019

Serial number: UX100K0000430

Age and condition:
Year: 2019
Area covered:37106 hectares (14/08/26)
Condition: Really smart looking machine, off an arable only farm and no liquid fertiliser use. A one owner machine, exceptionally well looked after, no damage or repairs.

Chassis specification:
280 Steering axles with Auto Trail; Suspended draw bar with shock absorbance; trailer braking; hydraulic jack; power beyond hydraulics.

Sprayer specification:
Tank: 4201 lt polyethylene tank with low centre of gravity
full in field tank washing with separate clean water tank for in field tank washing
Super – L2 30m; Flex Fold 2 with tilt and independent variable boom geometry -= 24m spraying option
Auto boom height control with 4 sensors and head land control
Independent boom folding with Active Contour Control and Swing Stop
LED Boom lighting
Spray lines: manual quad assemblies; DUS recirculation; 10 sections.
Smart Centre operator station with: Comfort Fill Plus; twin displays; 60 lts hopper; clothes locker and 20lts hand wash; work station lighting;
Twin AR280BP piston diaphragm pump with self-filling; hydraulic drive; 3 inch self fill and hose
External wash down kit; full road lights.

Control systems:
ISOBUS operation
GPS section control
Comfort Pack Filling
Amazone Boom Distance control – 4 sensors

Wheel equipment:
Row crop: Michelin Spray Bib VF380/90R50 – 85% good
LGP: BKT 580/70 R42 – 95% good

Supply options:

Sold ex yard as seen fully working ex farm current NSTS (2042177) valid until 15/01/2026: POA

OR

Supplied fully tested, serviced as required and a 12 month NSTS certificate: POA

IMG_2293

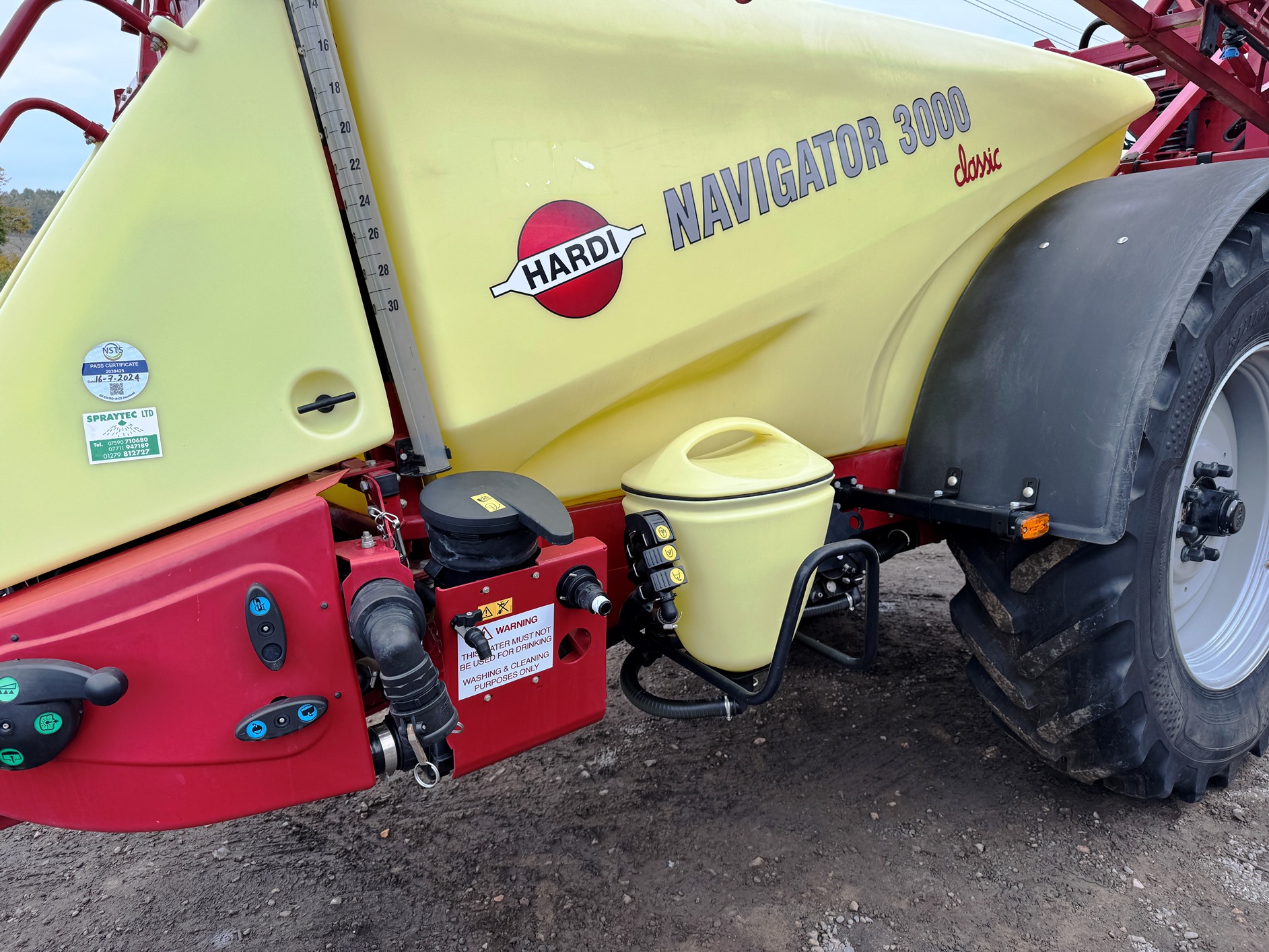

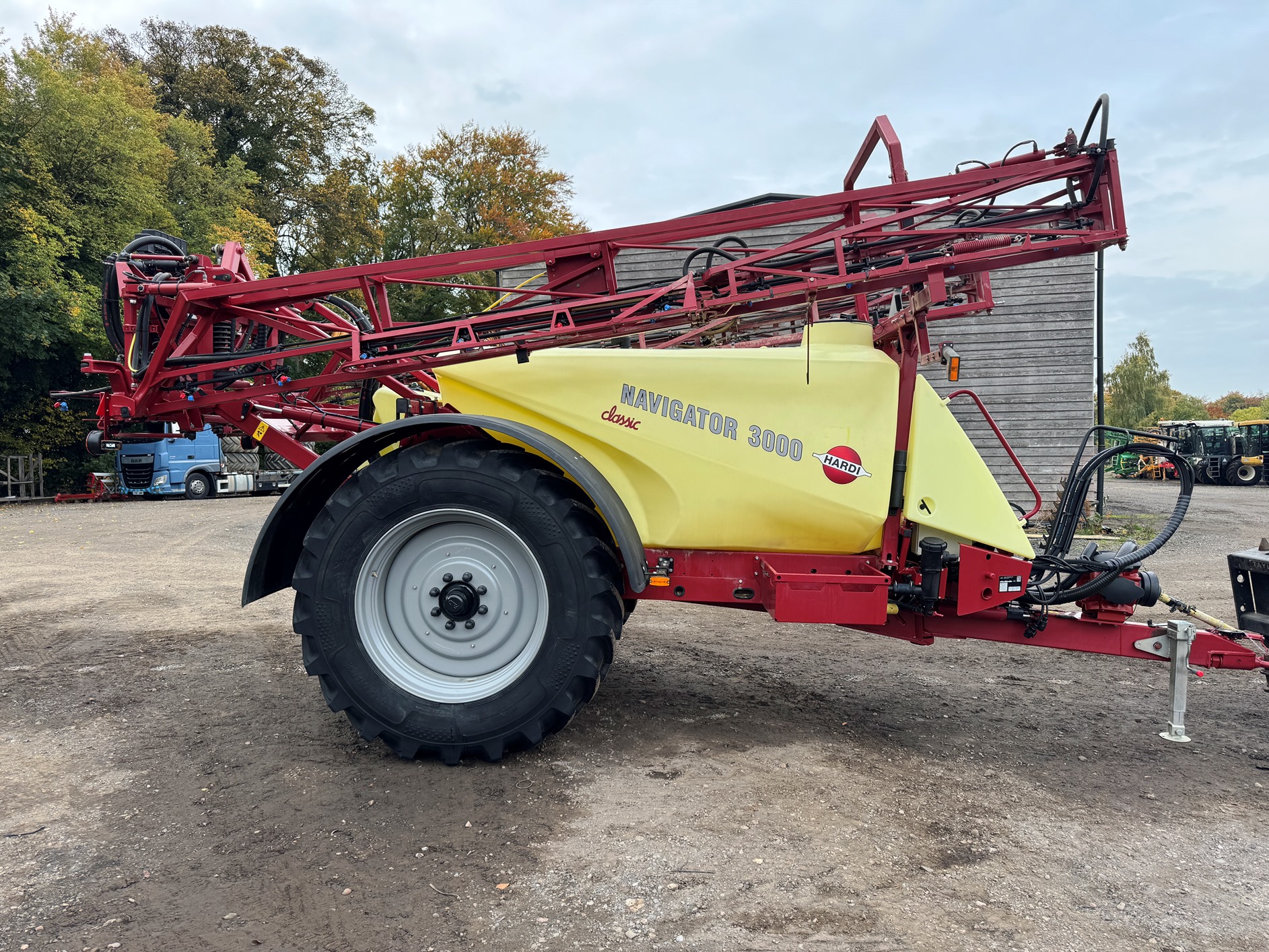

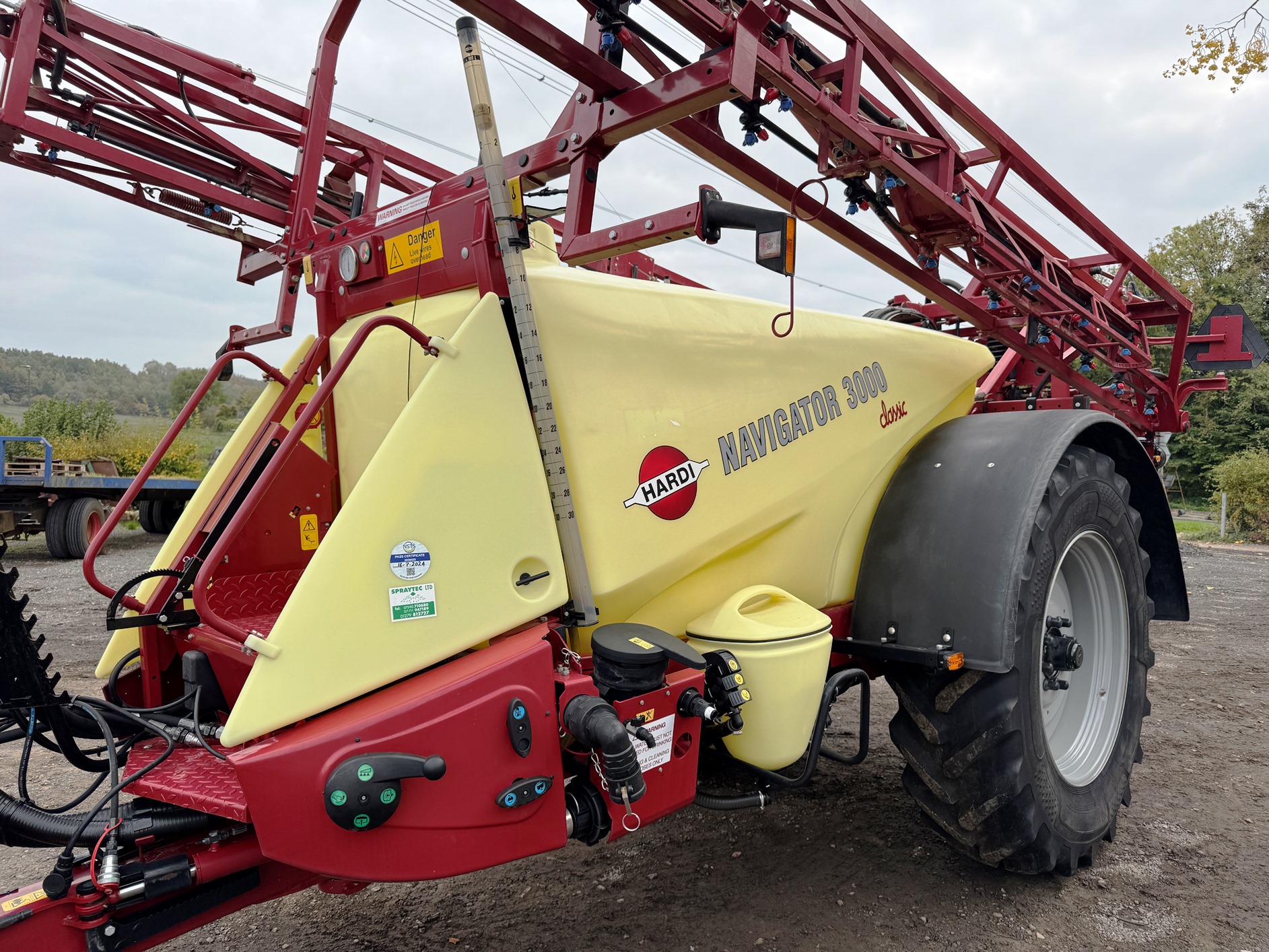

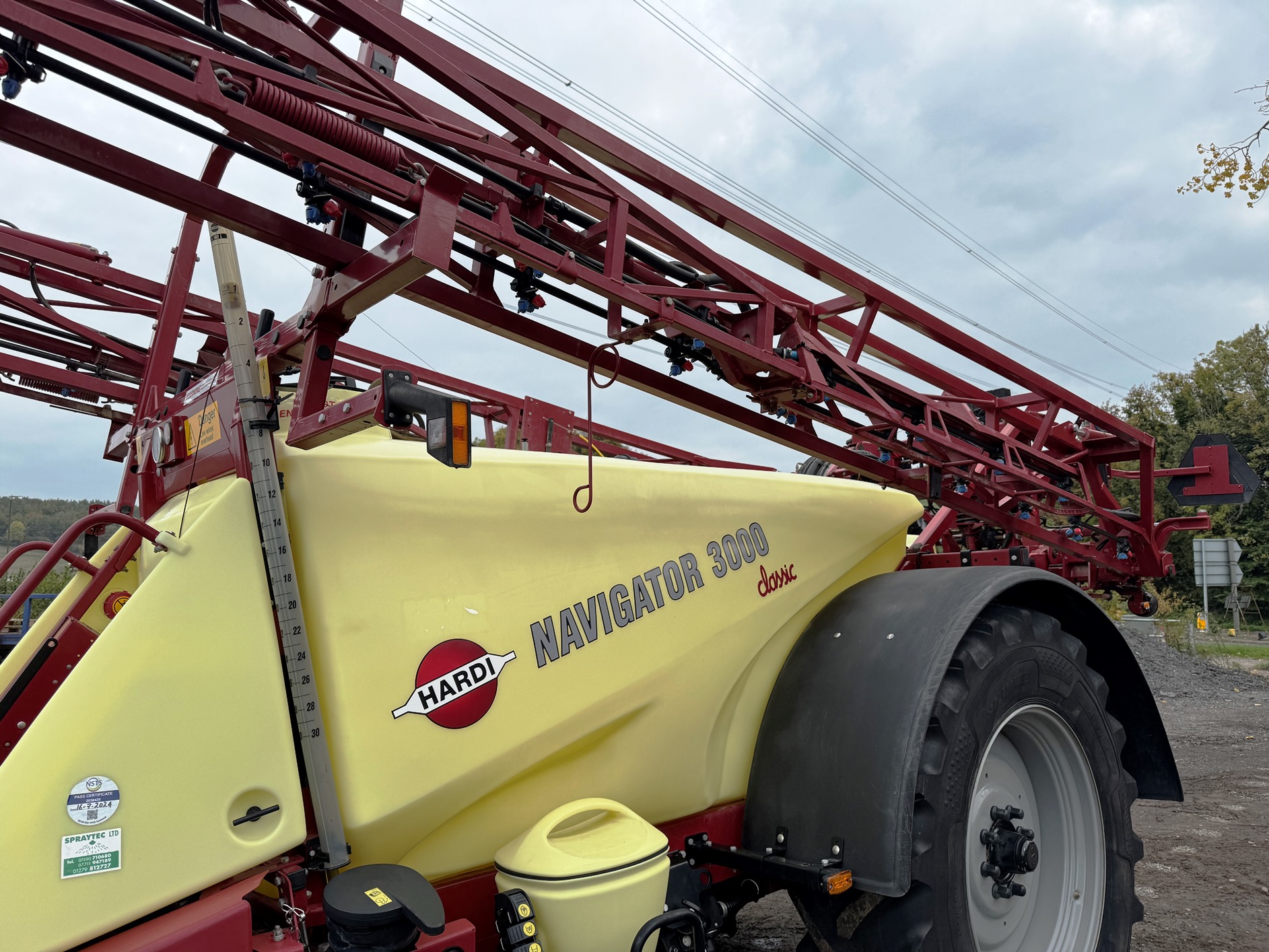

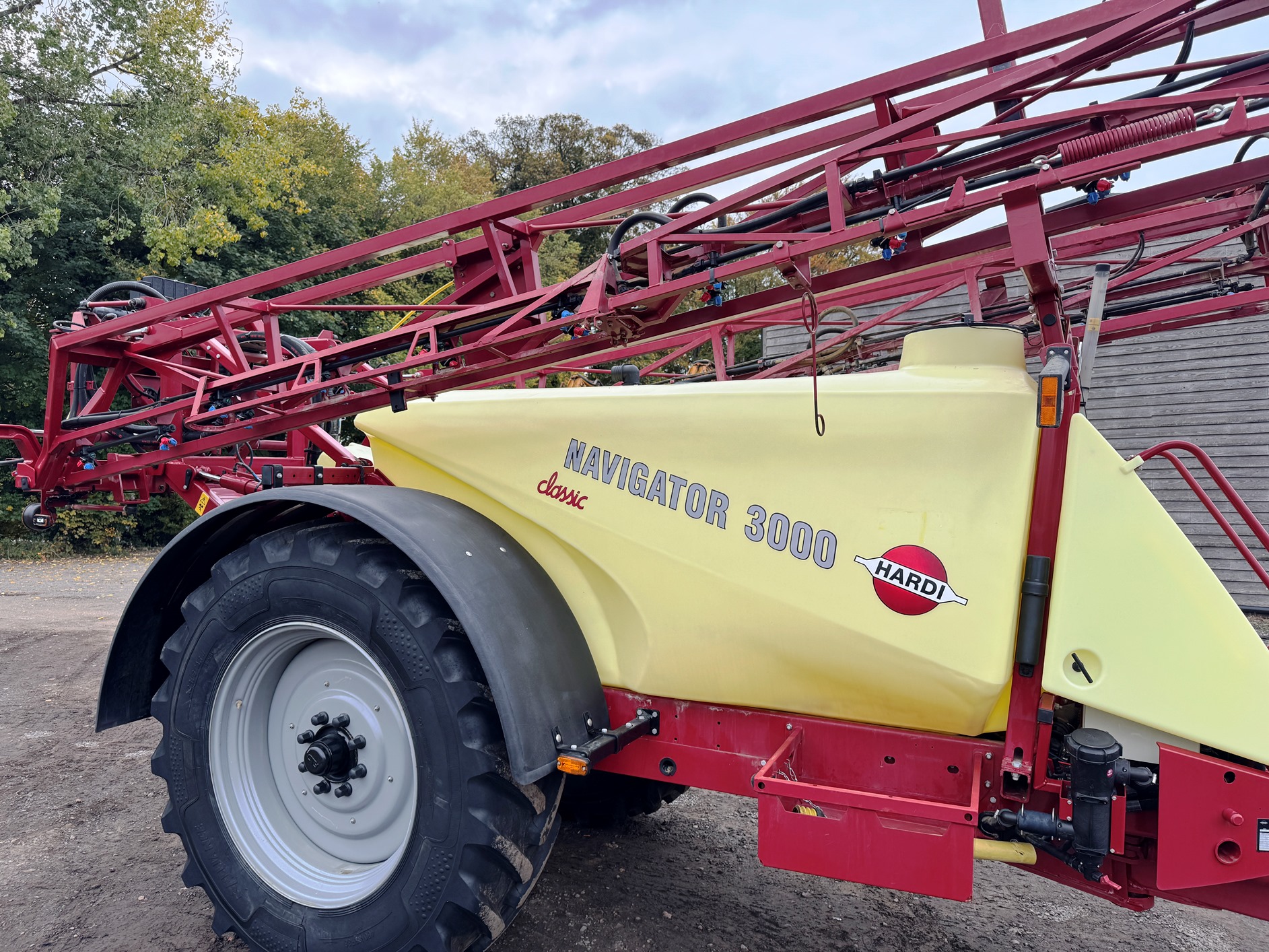

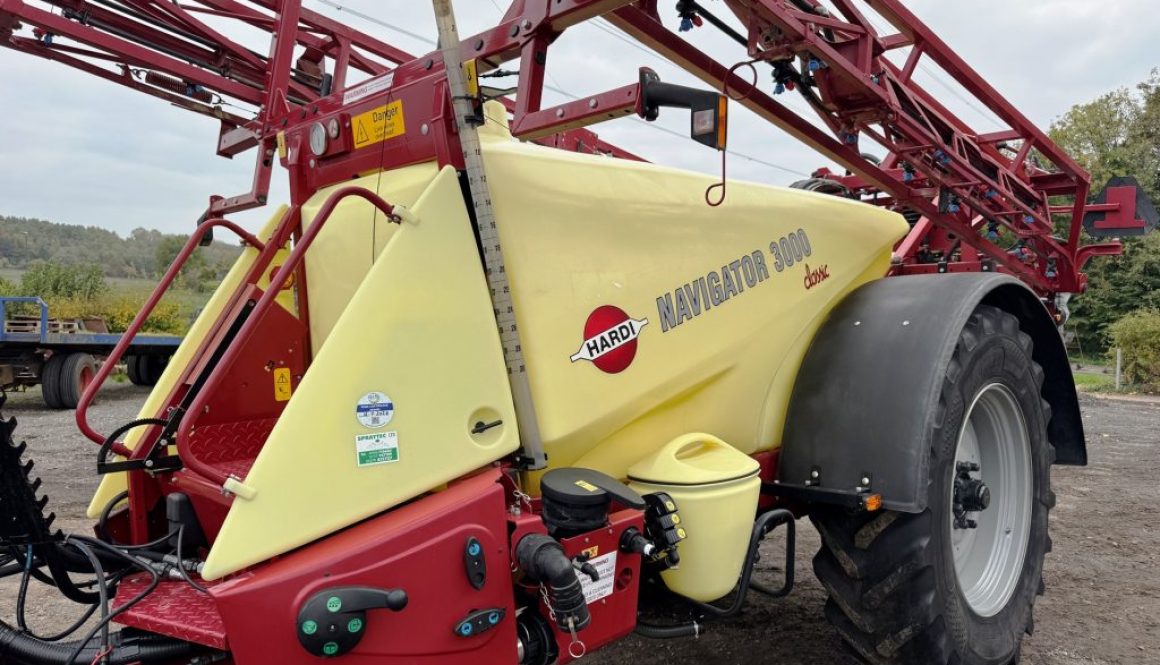

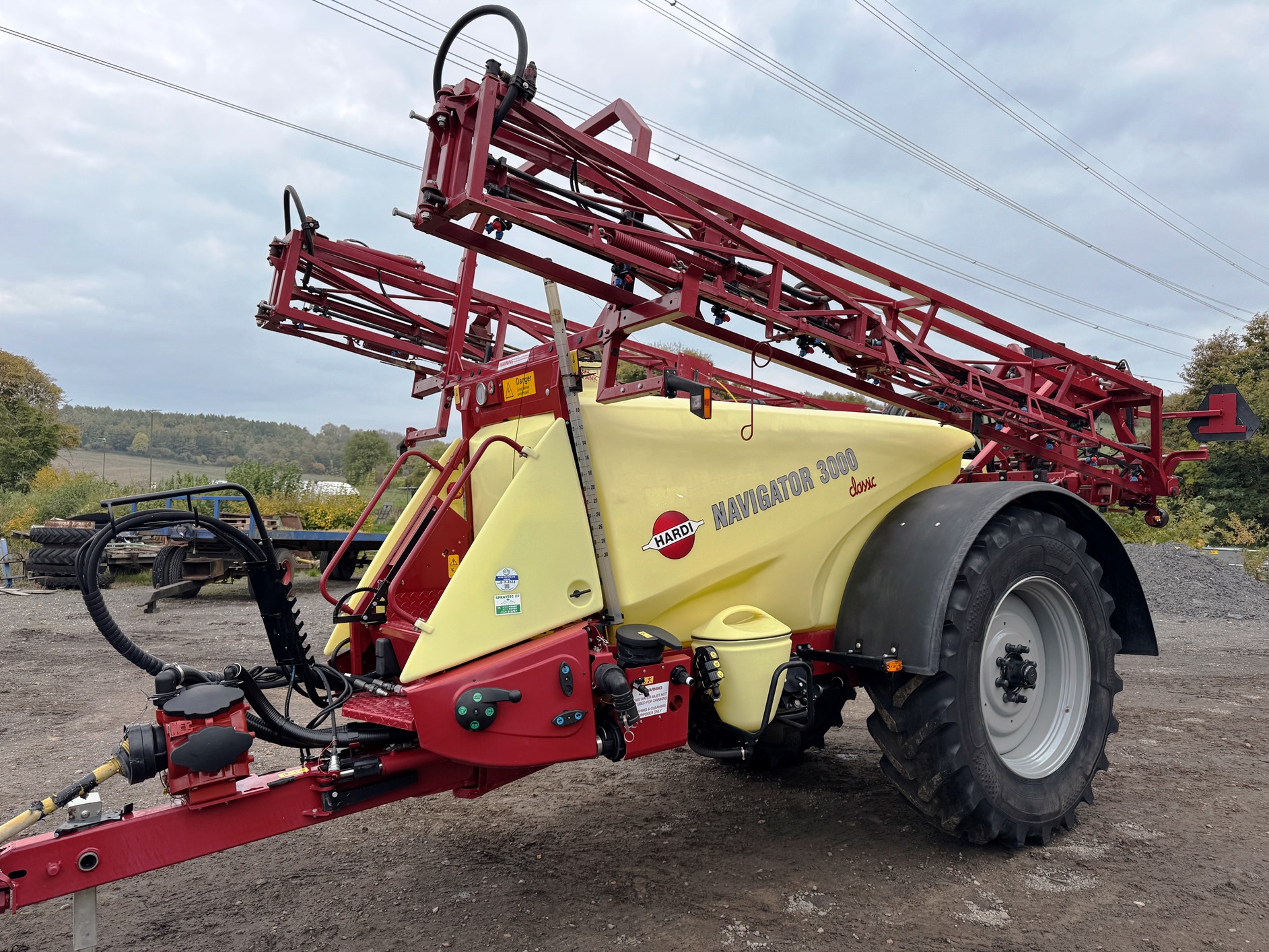

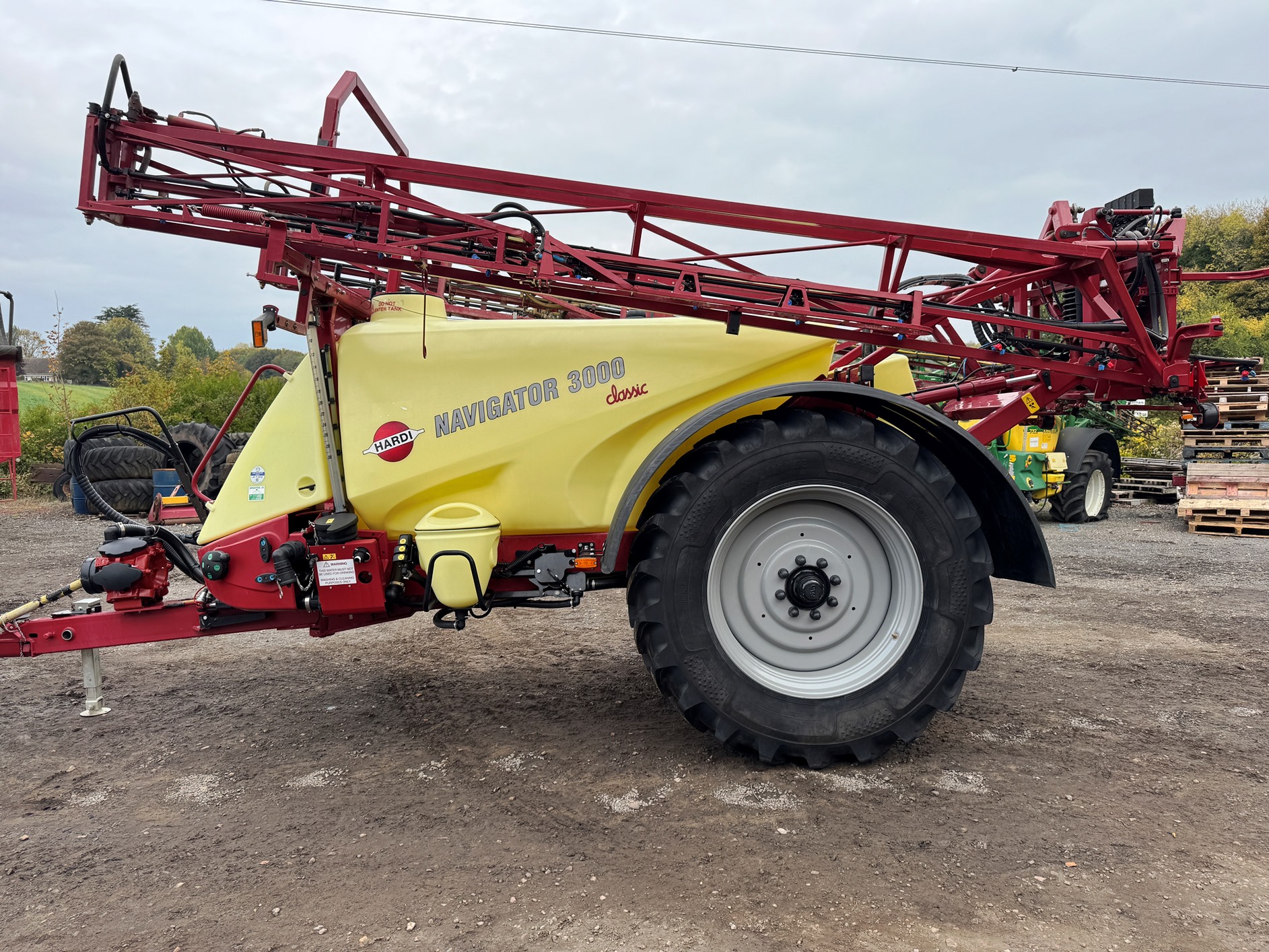

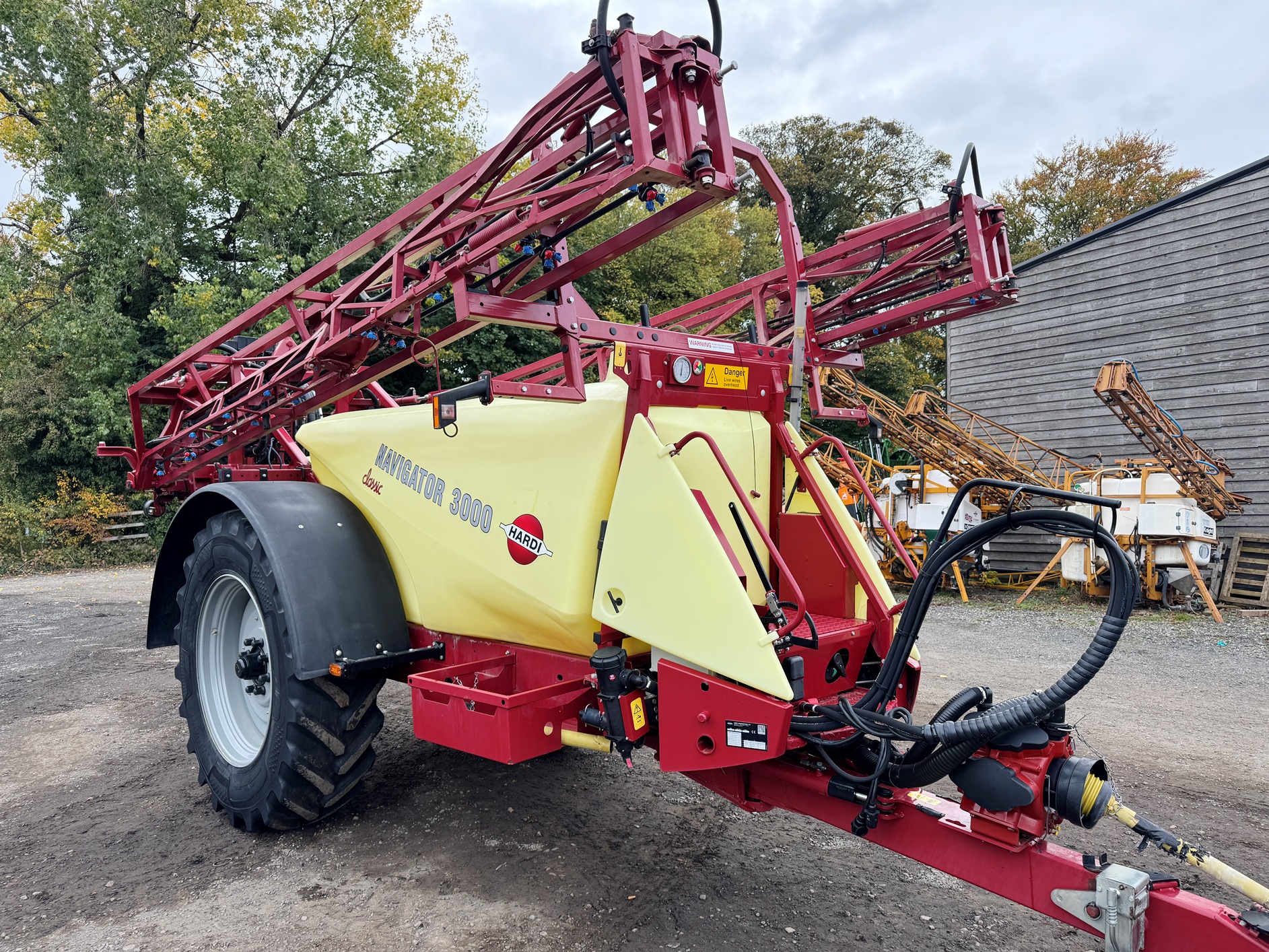

Hardi Navigator 3000 Classic 20m – 2020

Serial number: UKHLP0142L0000610

Age and condition:
Year: 2020; Hectares sprayed: less than 4000
Condition: excellent, this is a very well looked after machine in very good order, paint work is all good.

Sprayer specification:
3000 lts tank
full in field tank washing and separate clean water tank
Auto steering with hydraulic control and over ride
20 m booms fully hydraulic via electro-hydraulics with boom tilt and independent boom incline
5 section controls
full in cab sprayer controls with HC6500 screen; multi function joystick; Hardi set Box for all electro-hydraulic functions
Spray lines fitted with three way nozzle assemblies
Low level chemical induction bowl and can washing
Sprayer self-fill and suction filtration in line pressure filtration
fitted with 6 piston Hardi pump and self-fill hose

Control systems:
HC 6500 auto rate and all sprayer functions
Set box for all eletro-hydraulic functions
Multi function joystick

Wheel equipment:
Intermediary: Alliance Agri Star II 460/85R38 – 95% good

Current NSTS expired September 2025

Supplied ex yard, fully tested and serviced as required, 12 month NSTS certificate: POA

IMG_2275

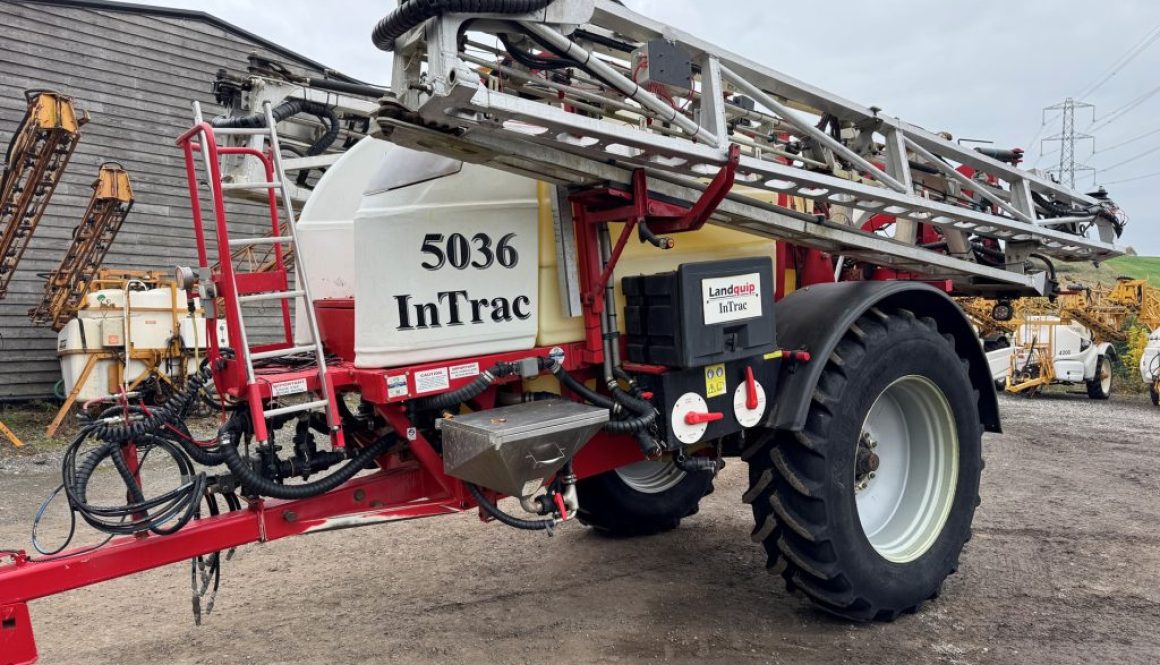

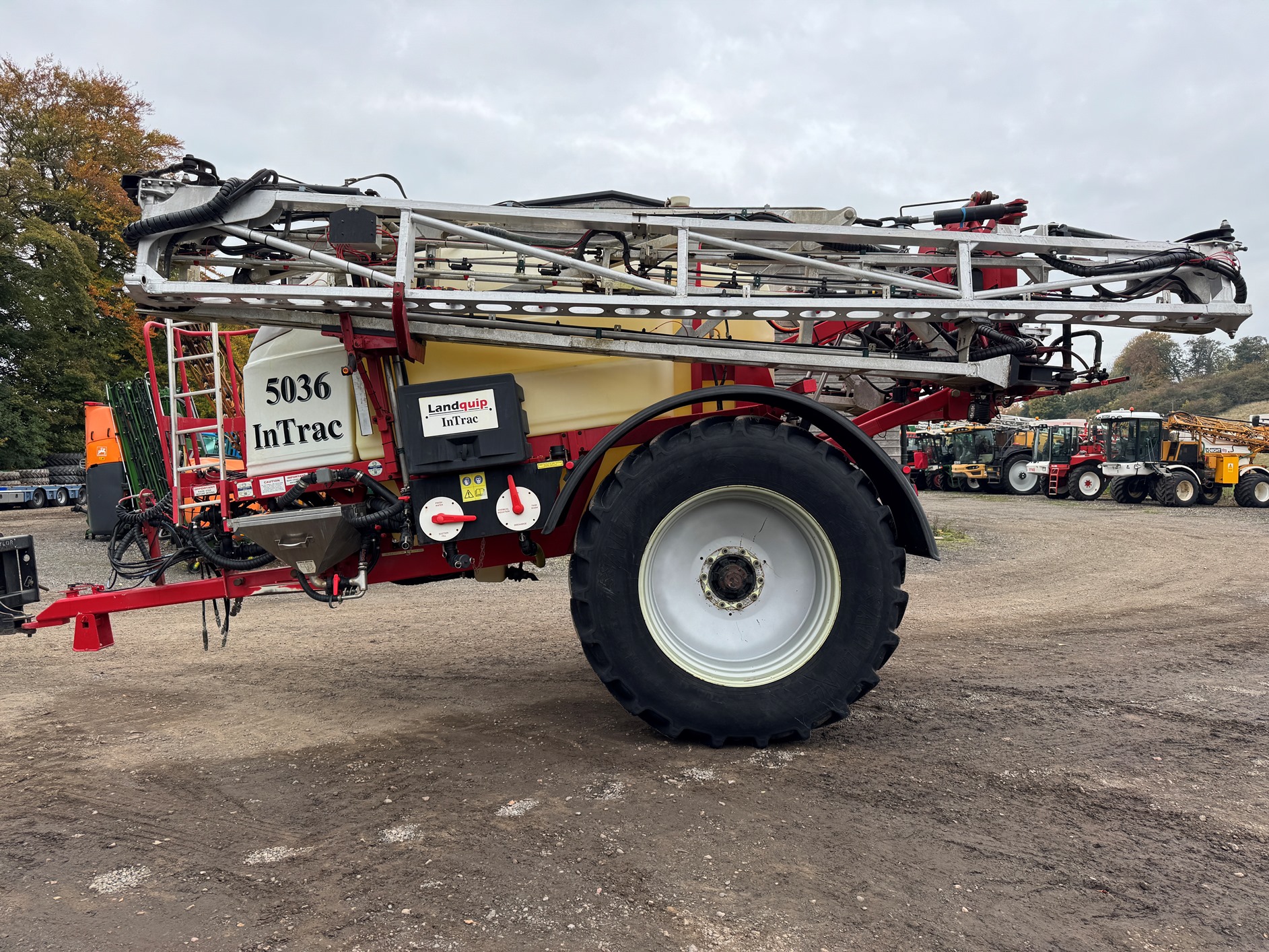

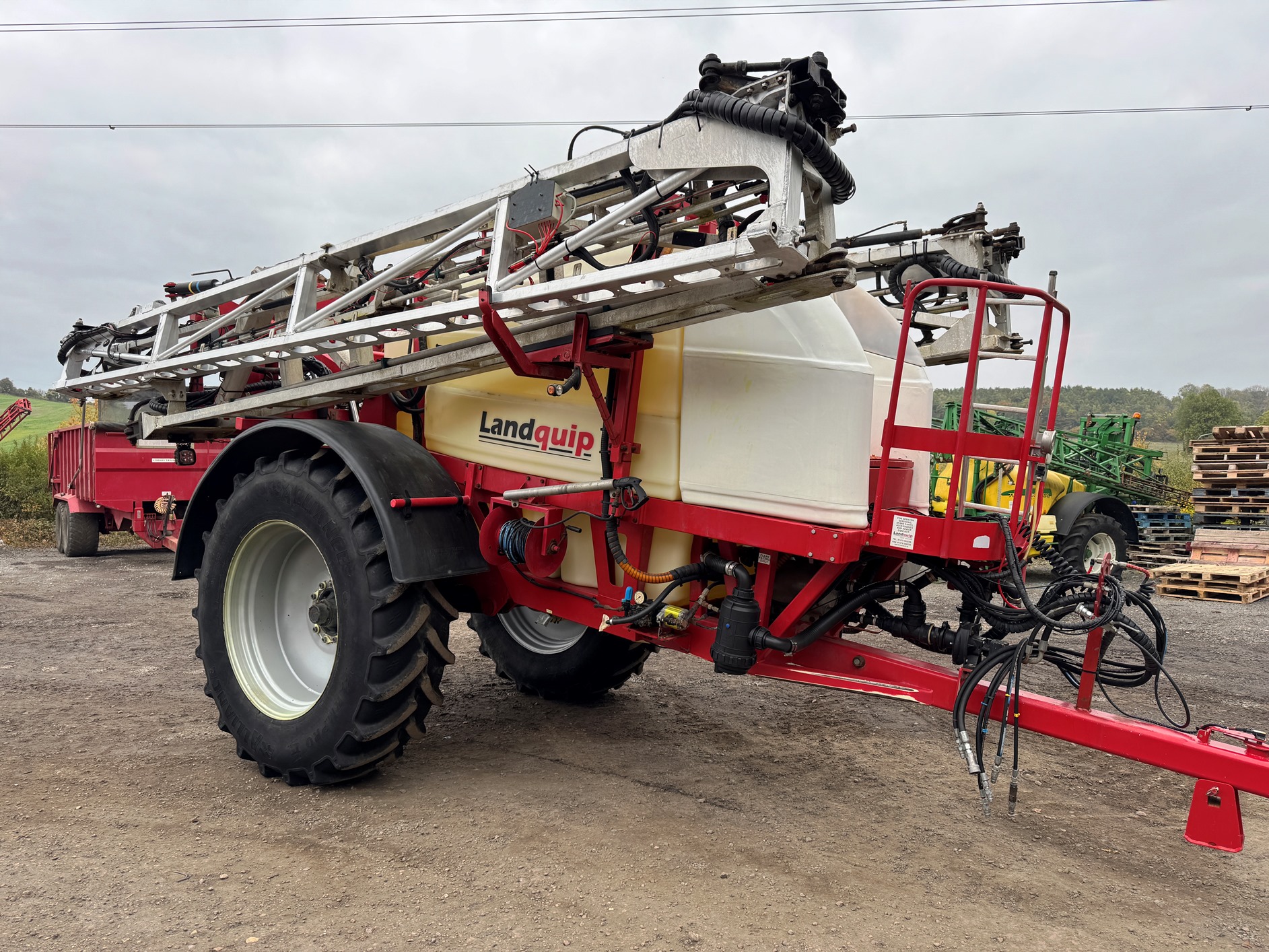

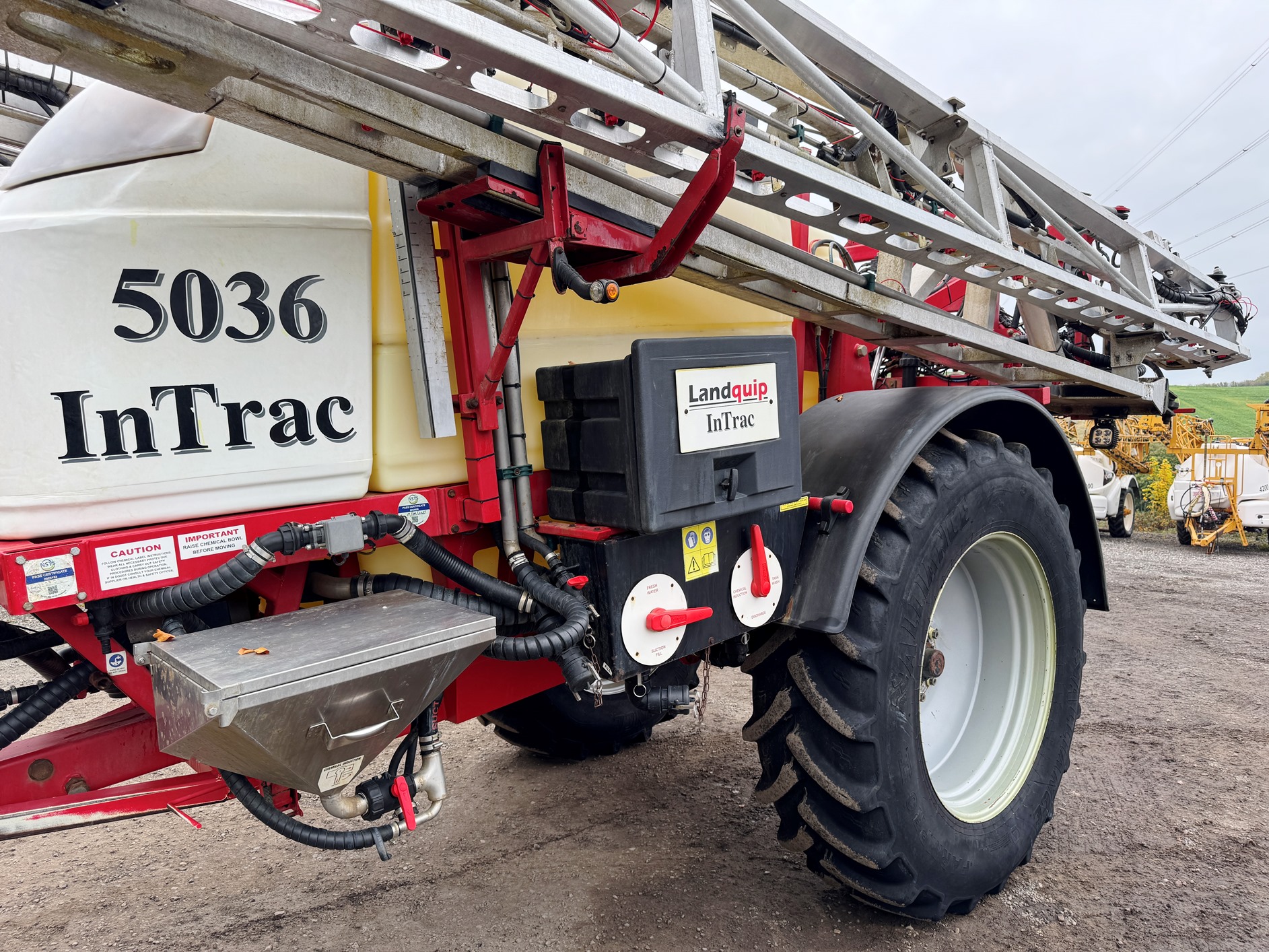

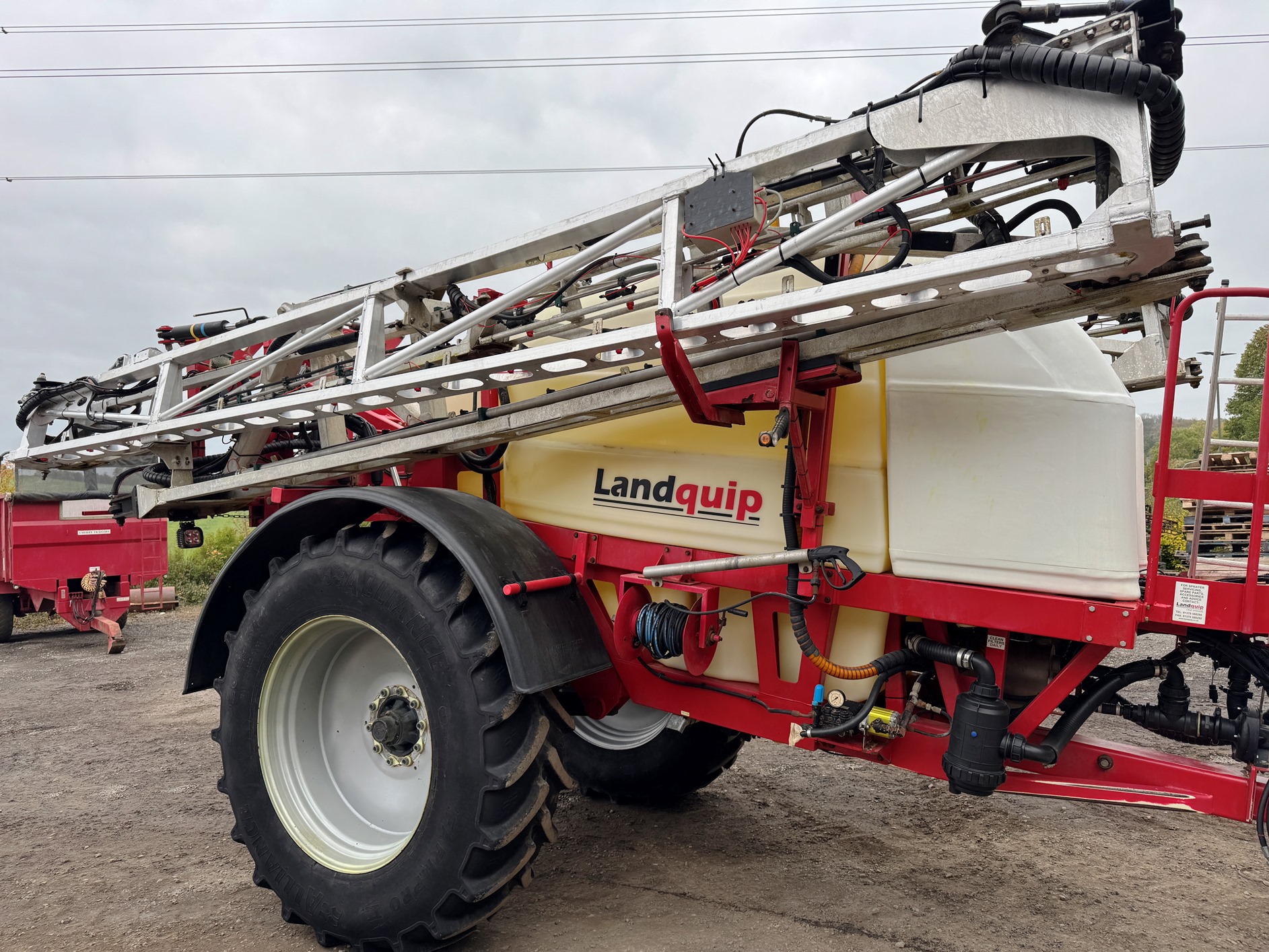

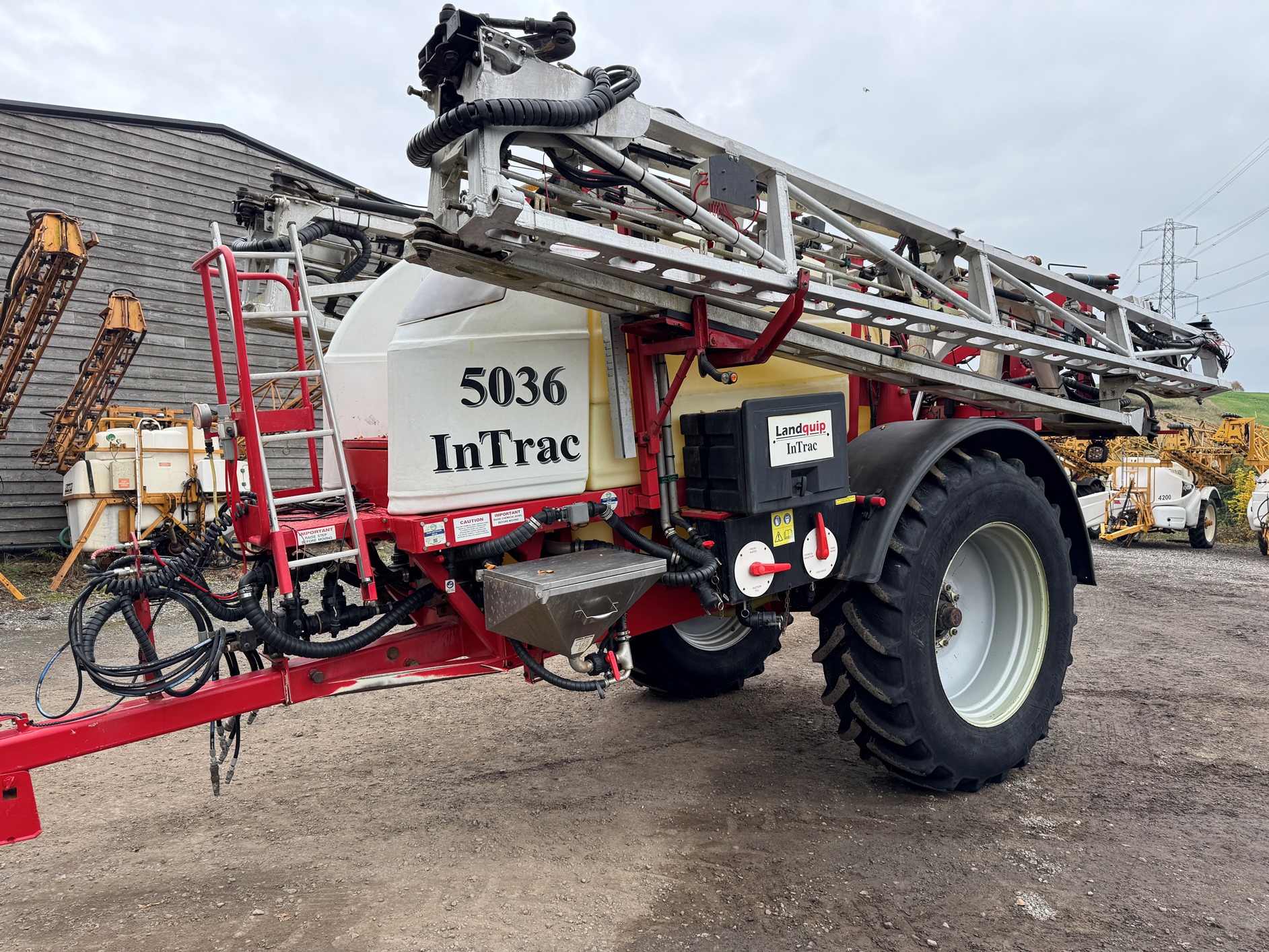

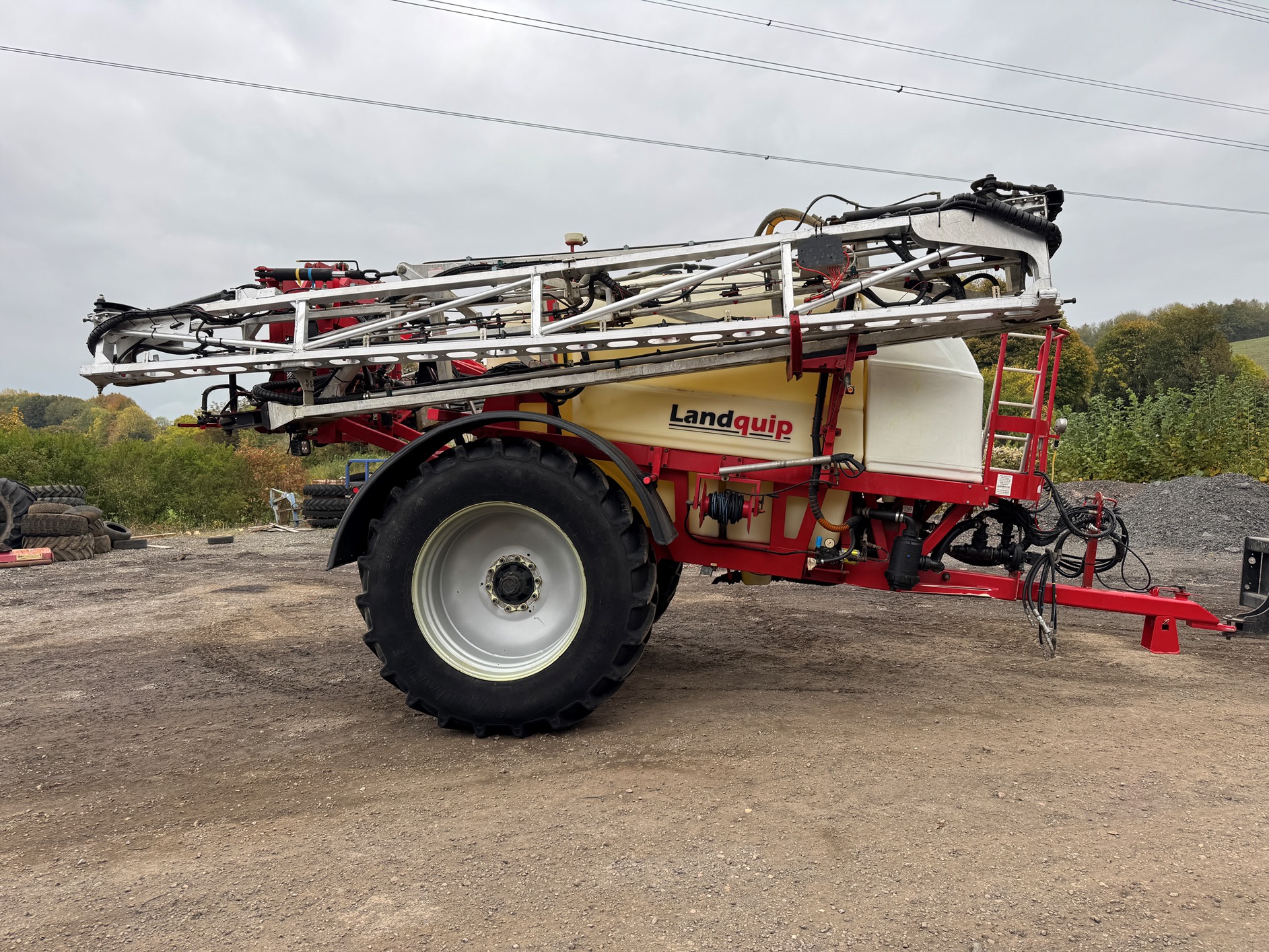

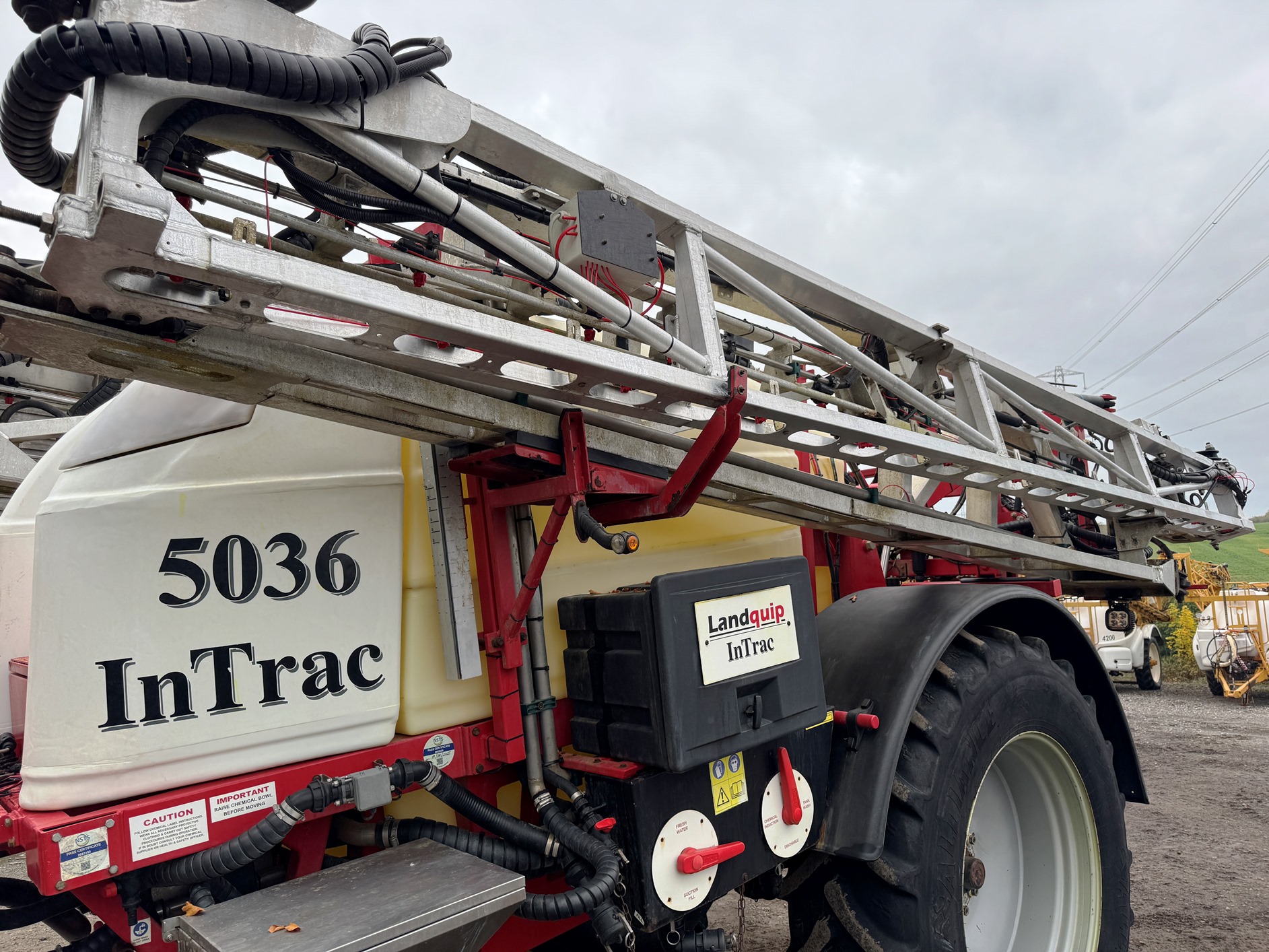

Landquip Intrac 5036 – 2014

Serial number: 122436K9080214

Age and condition:
2014 machine
Condition good all over, from all arable farm. Booms are all good no damage or repairs.

Sprayer specification:
5000lt GRP fully baffled tank fitted with in field tank rinsing and separate clean water tank 500 lts
Full auto steer via the rear axles with manual and auto steer options – 11 ton twin ram steering axle
36m Tri-fold Pommier booms with hydraulic fold, raise and lower, boom tilt and independent variable boom geometry requiring one tractor spool controlled via electro hydraulics – 12/24m spraying options
Boom fitted with manual end break backs
Norac 7 boom height control
Independent outer section folding and hydraulic boom lock
Hydraulic auto raise/headland assist
Chassis fitted with pnuematic suspension
Re-circulating spray line plumbing with 18 section shut off nozzles and quin-jet assemblies
Full in cab sprayer controls via Genius boxes CAN BUS controls – full GPS section control with sprayer mounted GPS receiver – 18 sections
Three stage filtration, 2 1/2″ suction plumbing and 1 1/2″ pressure plumbing, self-fill and pump out facility
Fitted with a hydraulically driven centrifugal pump 700 lts/min – hydraulically driven
Low level 50 lts stainless steel chemical induction bowl with twin can wash and draining board
Hand wash facilities and protective clothes locker
Full road lights

Wheels:
Intermediary: Alliance 520/85R42 – 80% good

Control systems:
Genius switch box and sprayer controls
Genius auto rate etc CAN BUS with GPS 8 section switching and field mapping
Norac 7 auto boom height control

Supply options:

Ex yard fully working ex farm current NSTS (2052529) valid until 19 09 2026: POA

OR

Supplied fully tested, serviced as required and a 12 month NSTS certificate: POA

VICON IX TRACK T6 36M - 2020 (5)

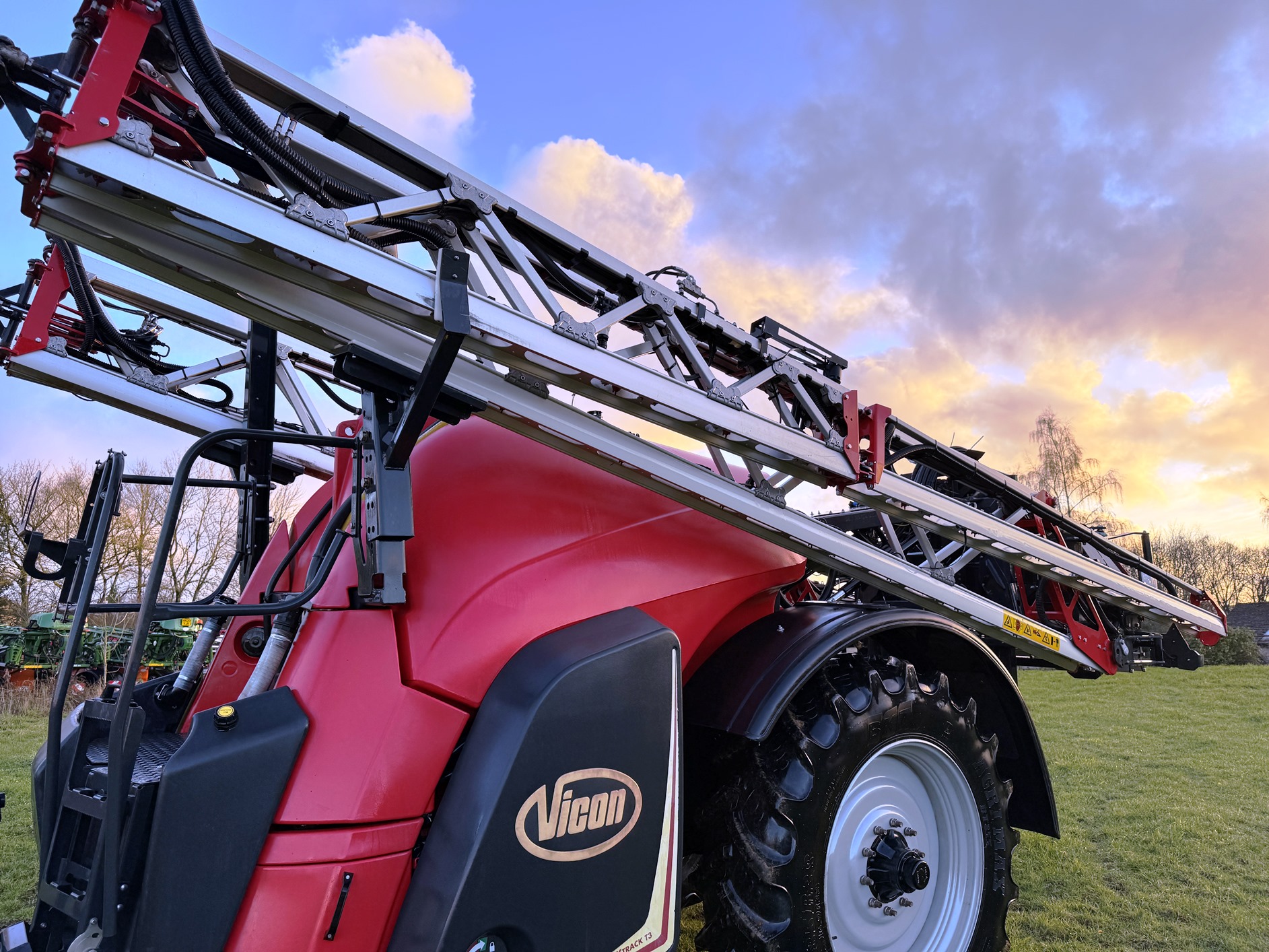

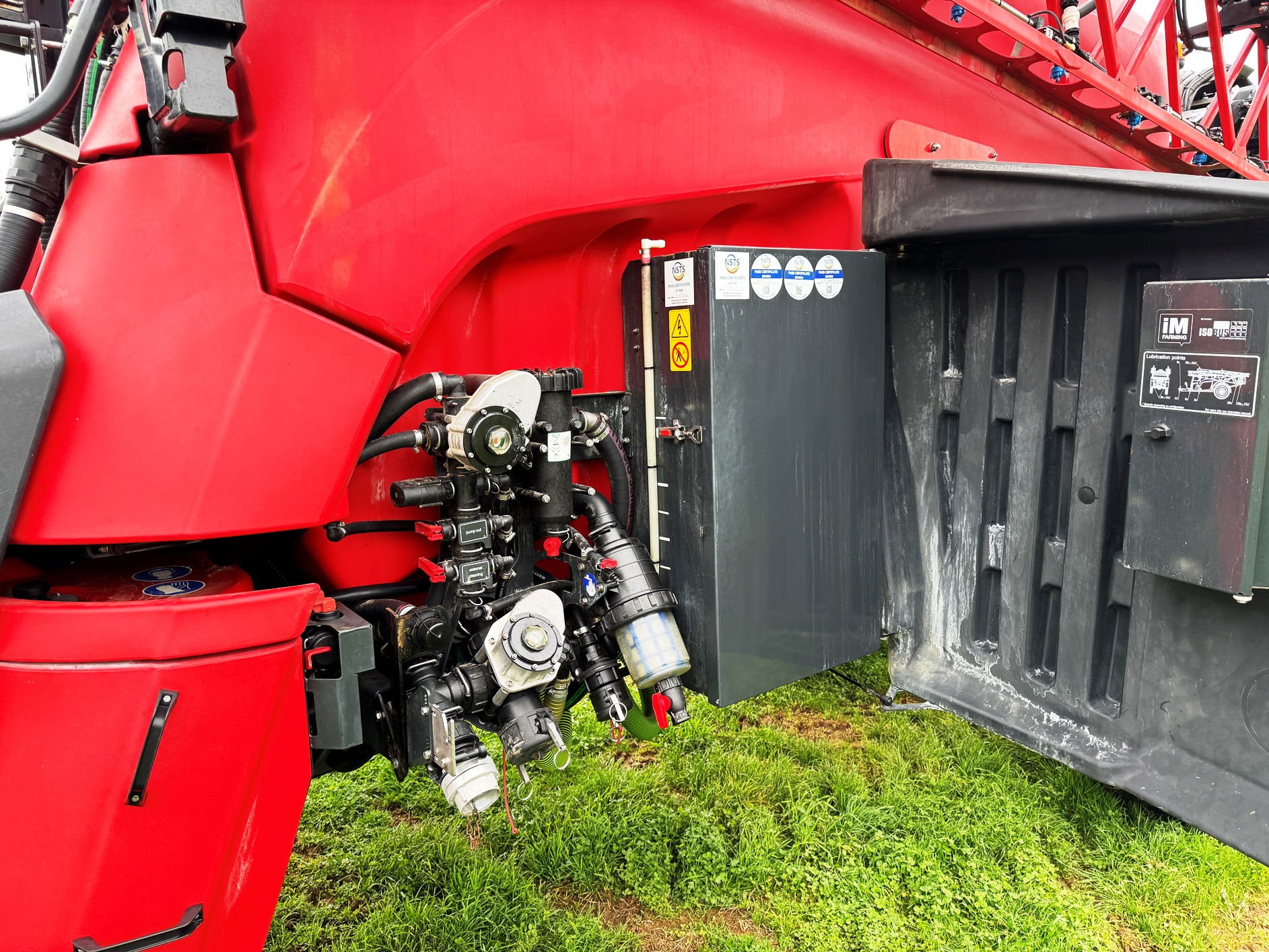

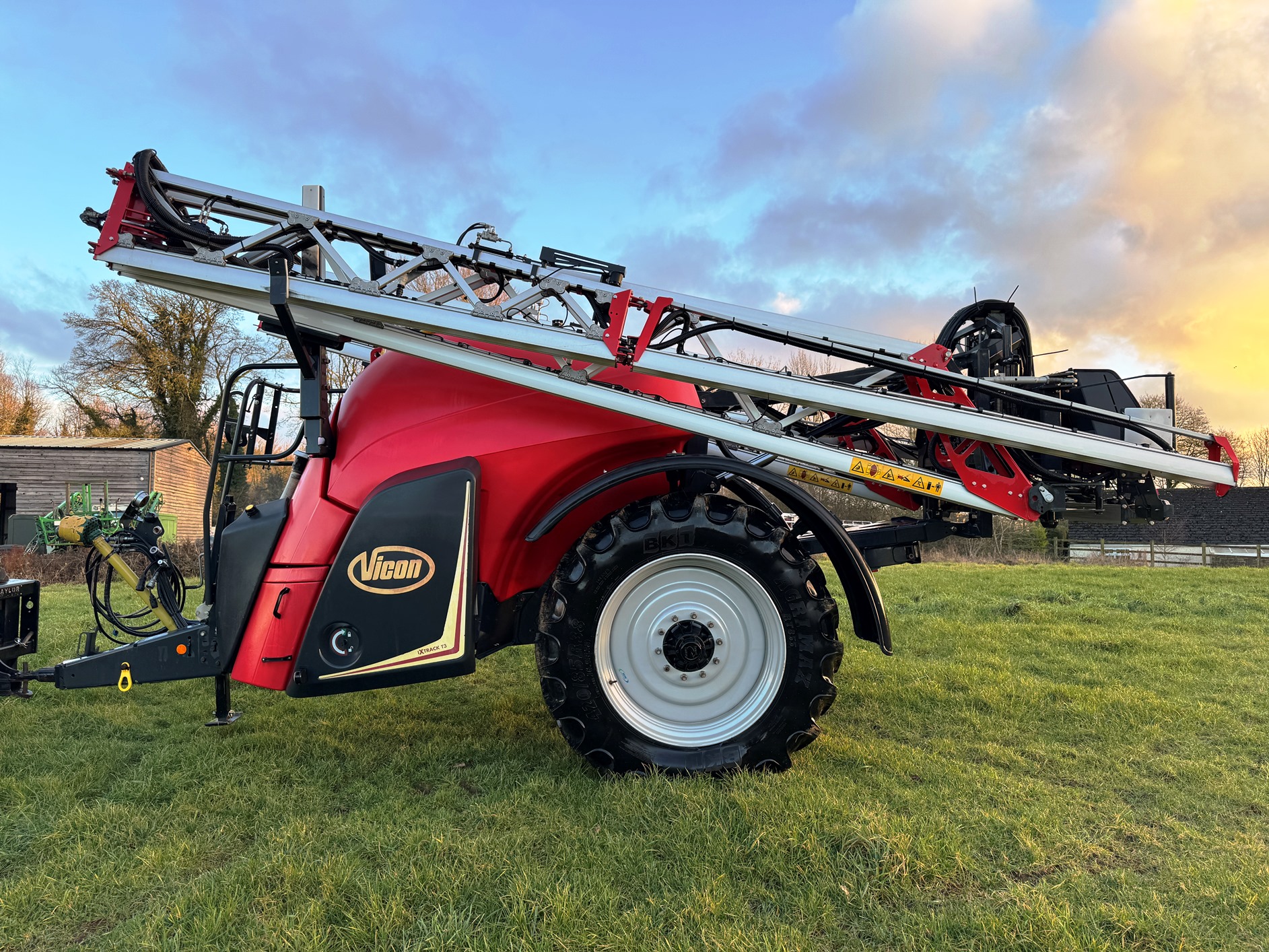

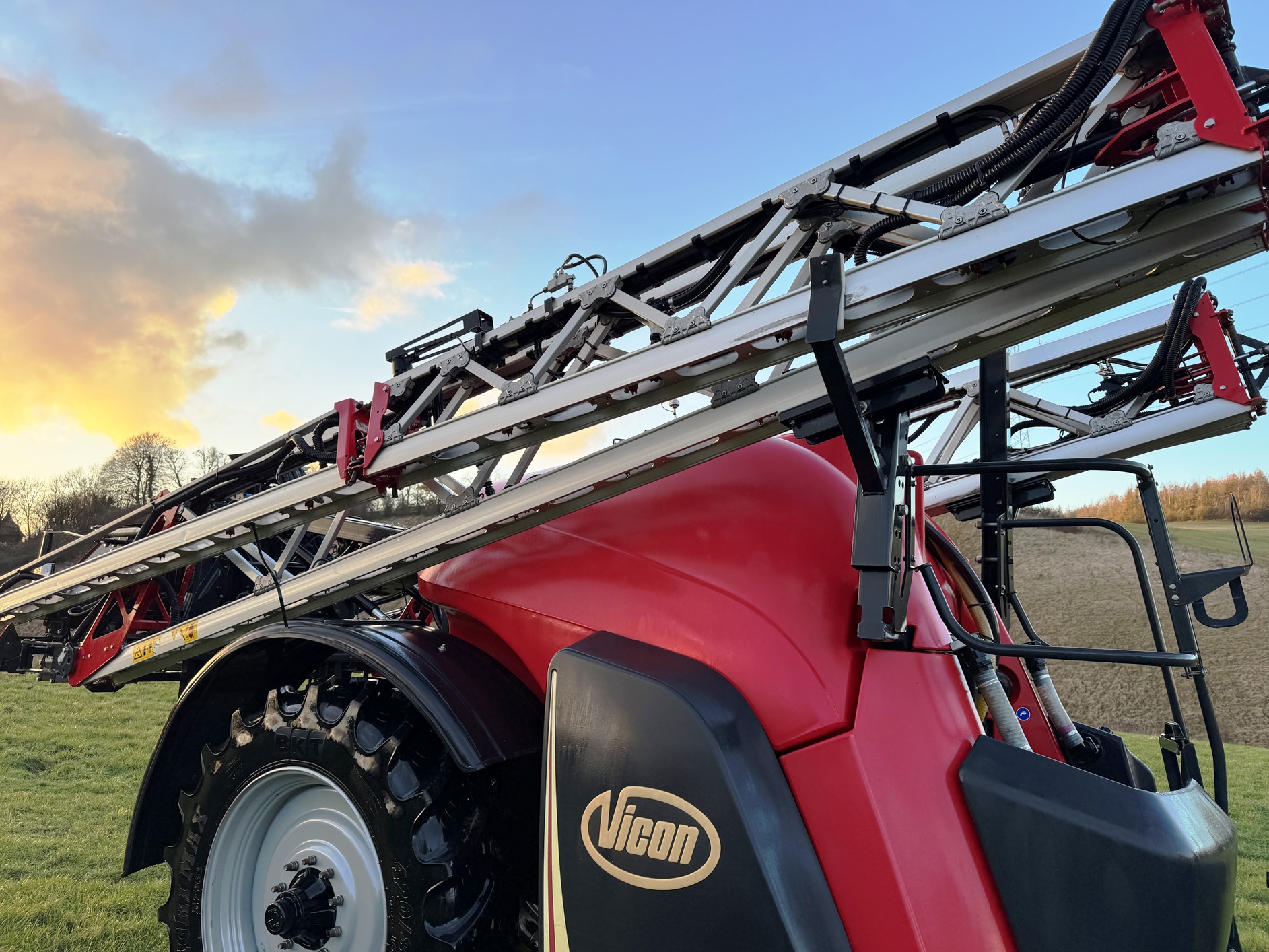

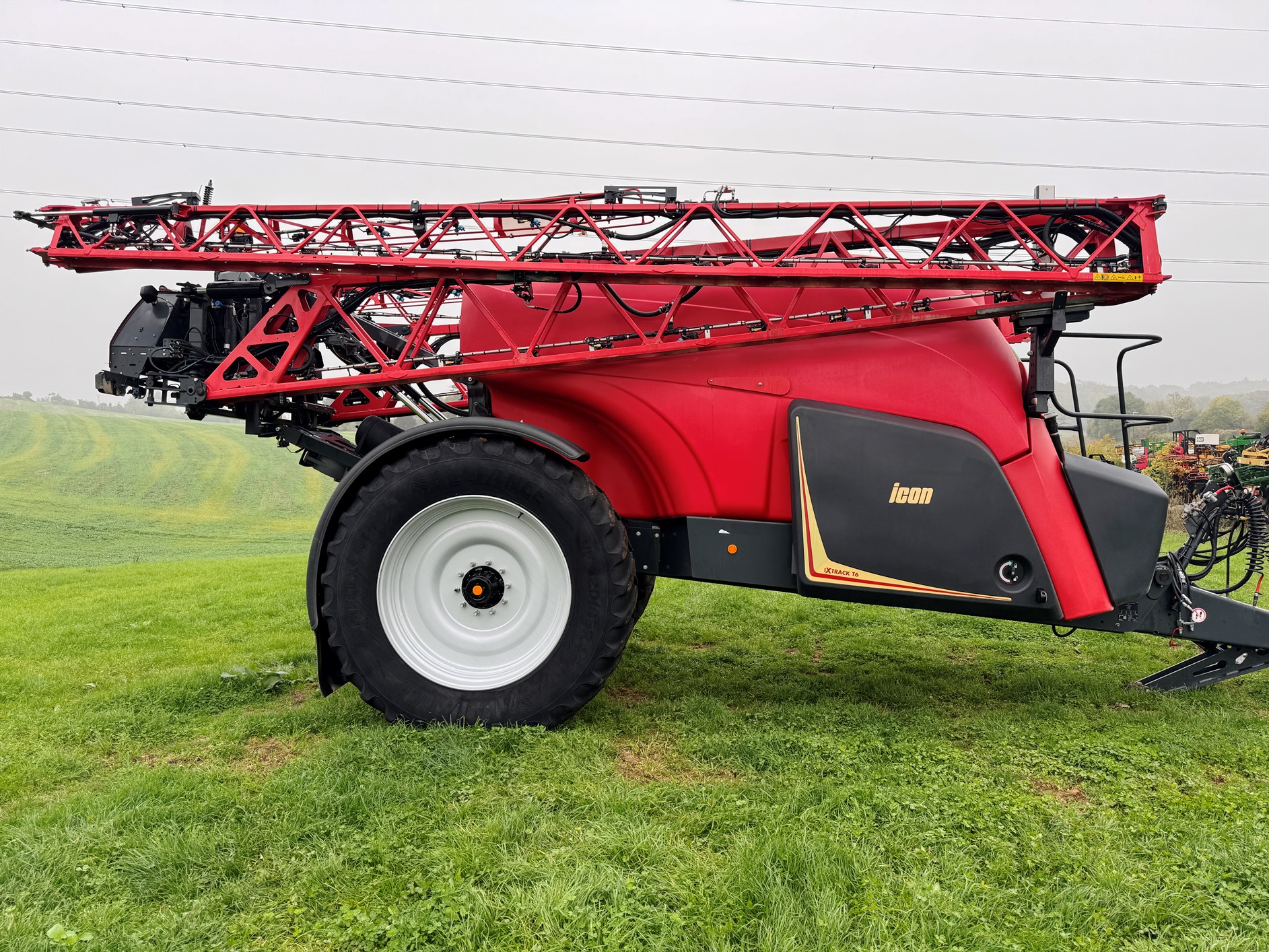

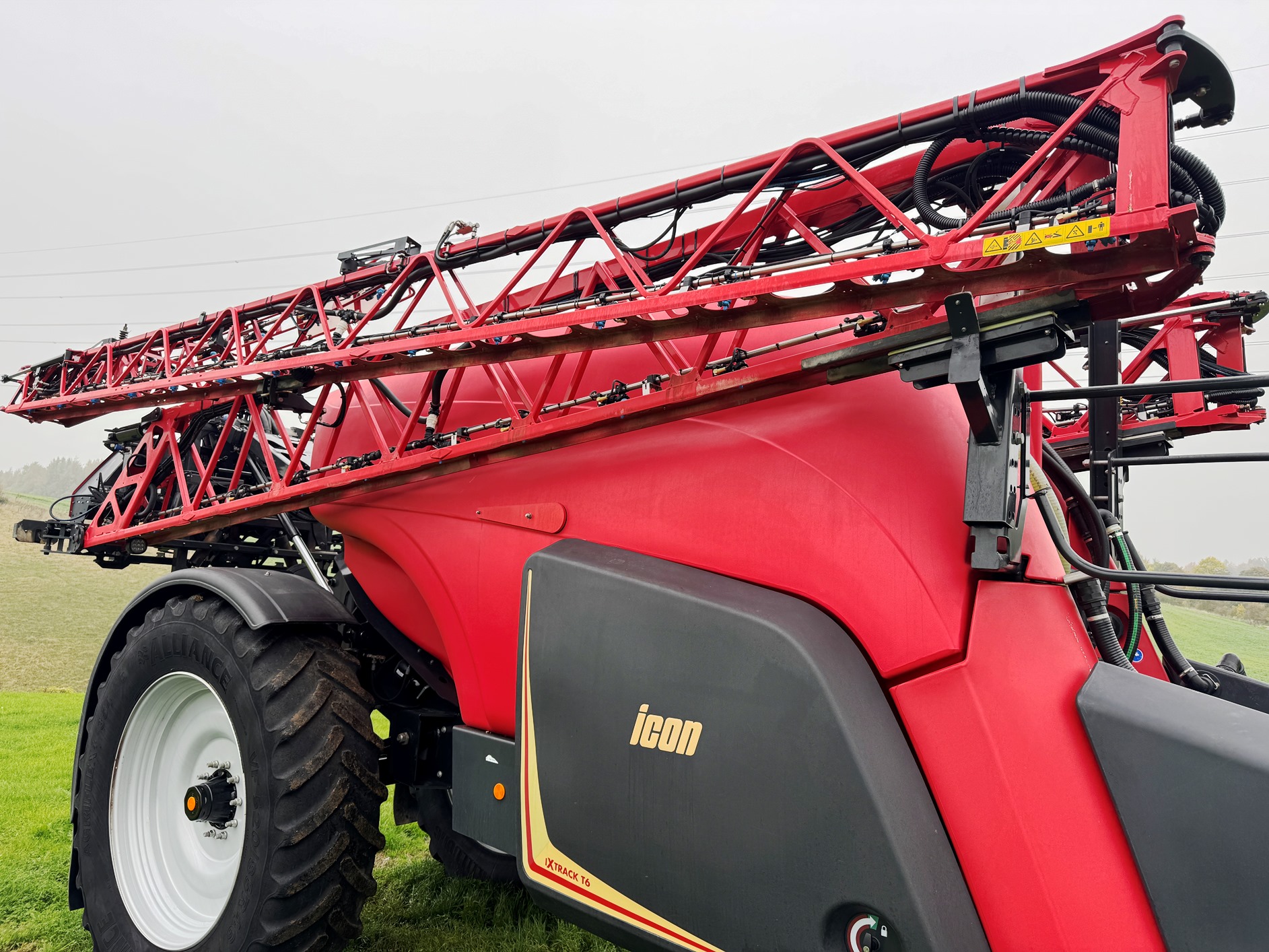

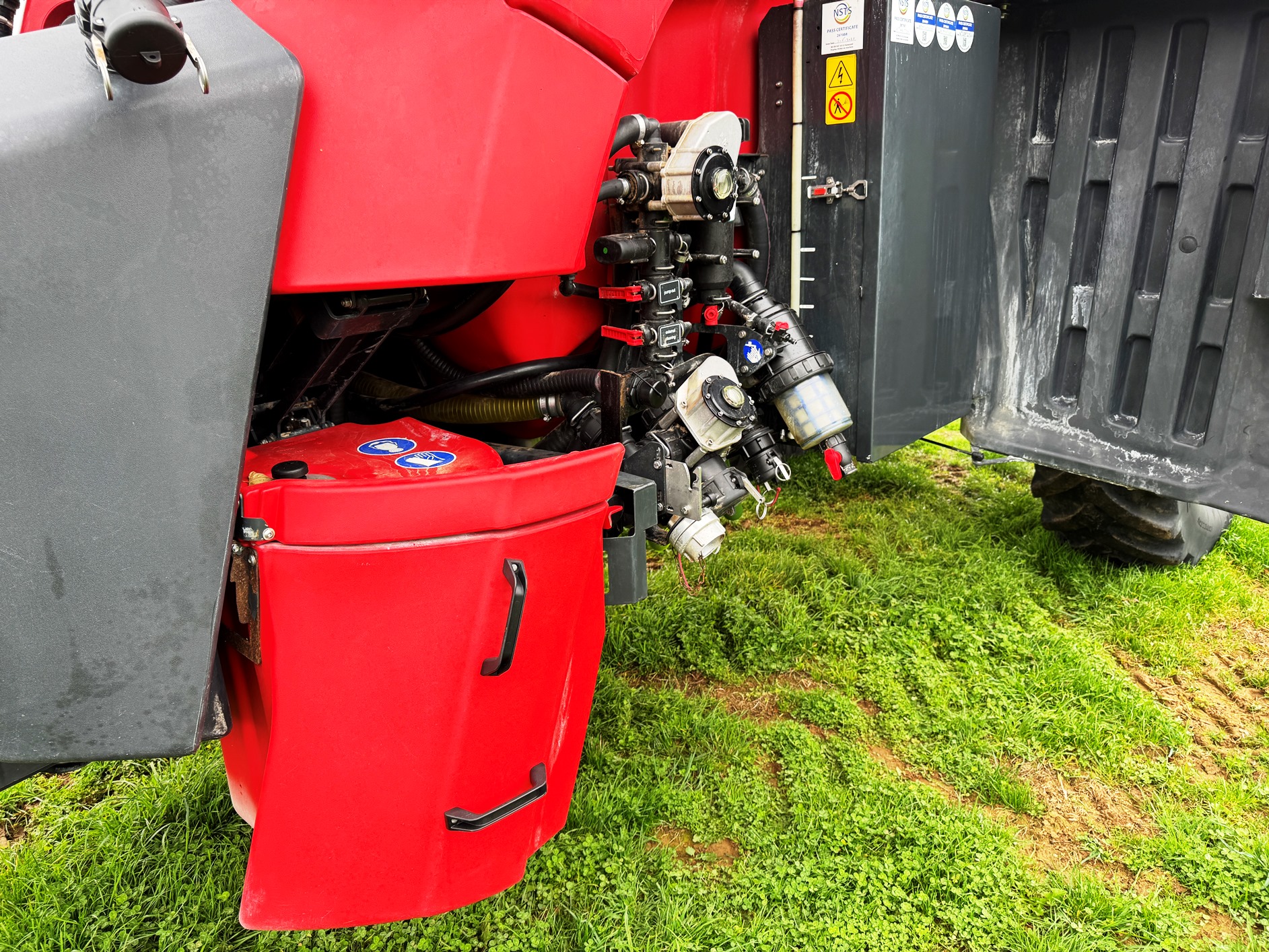

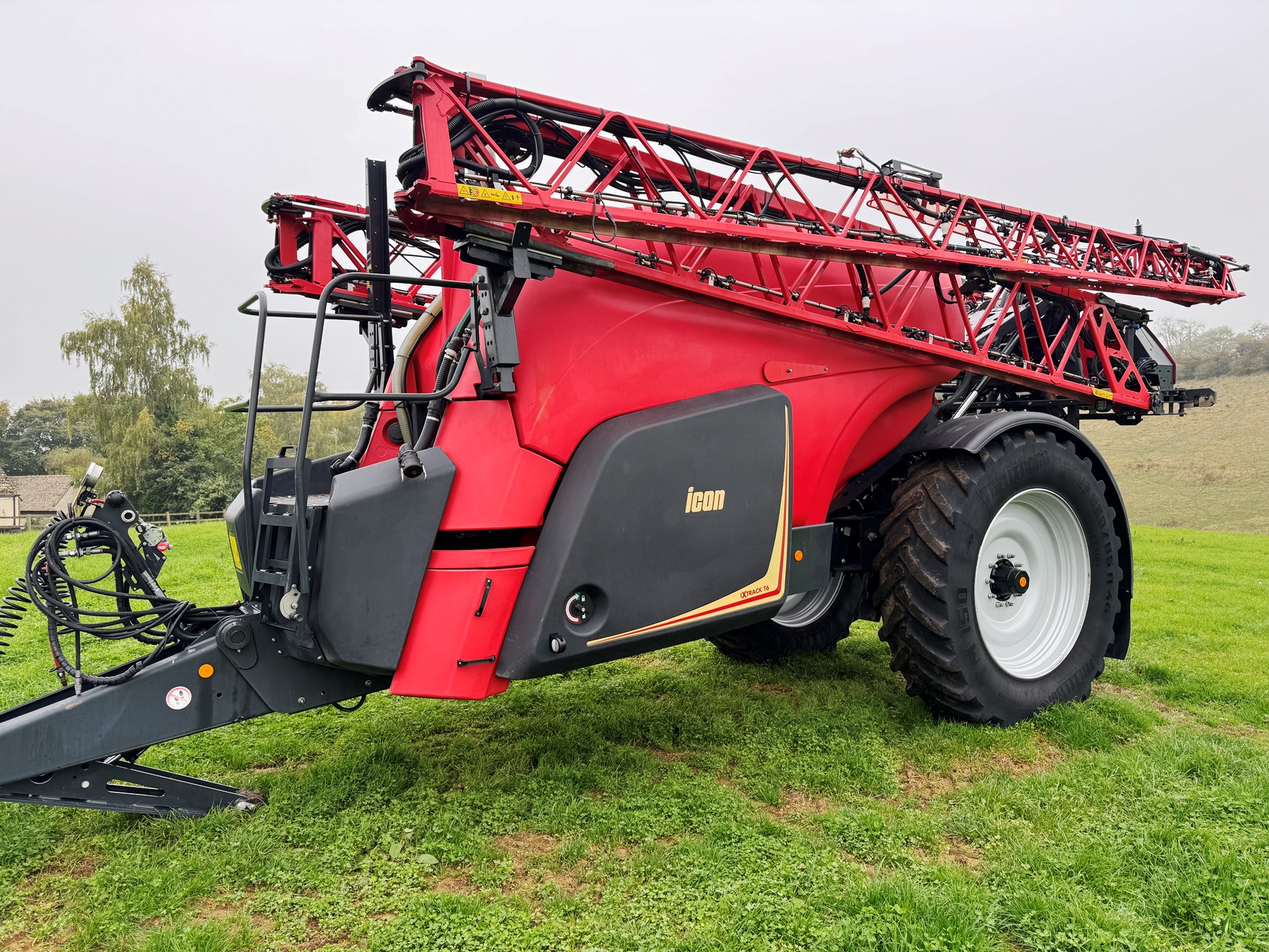

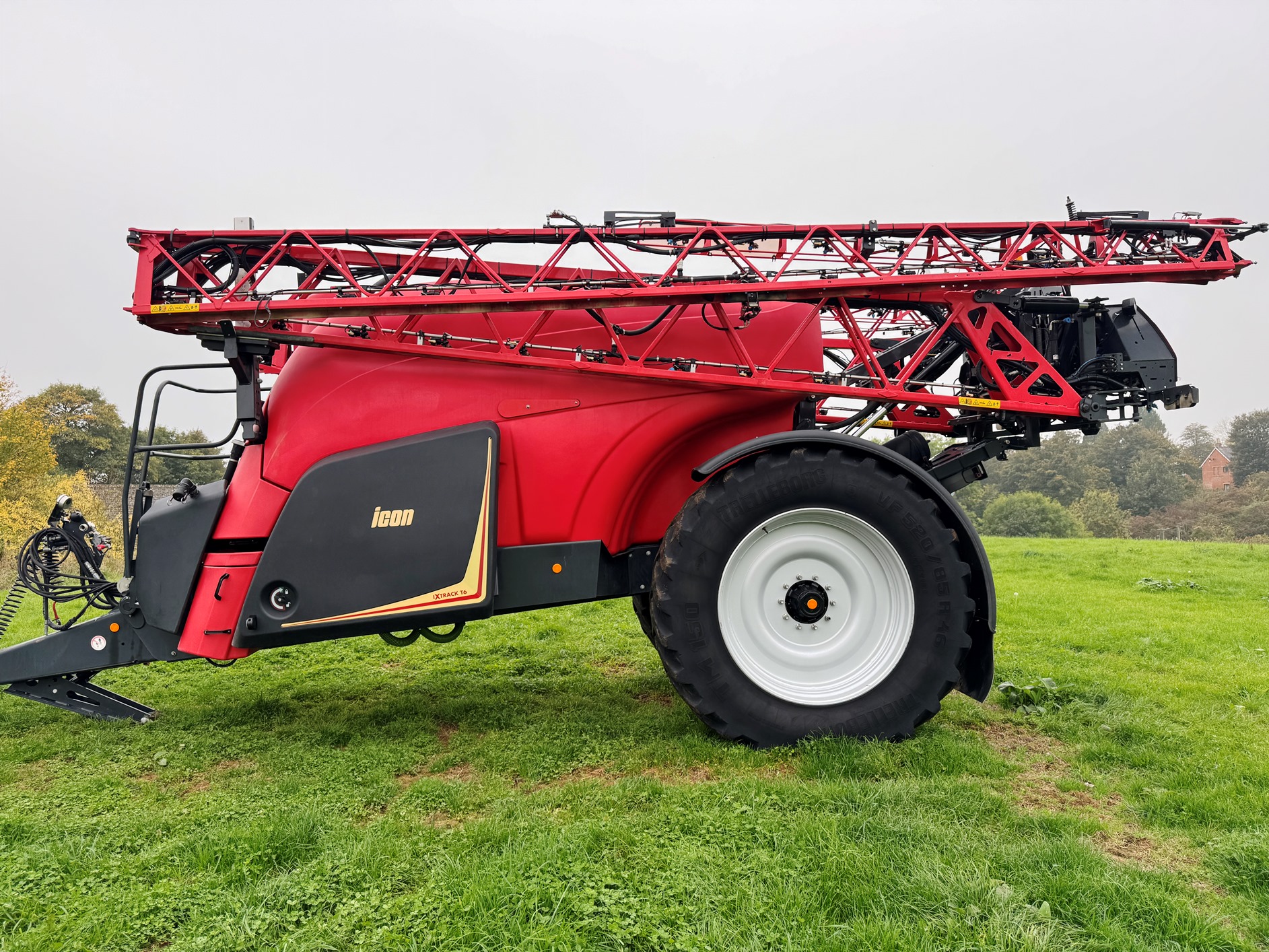

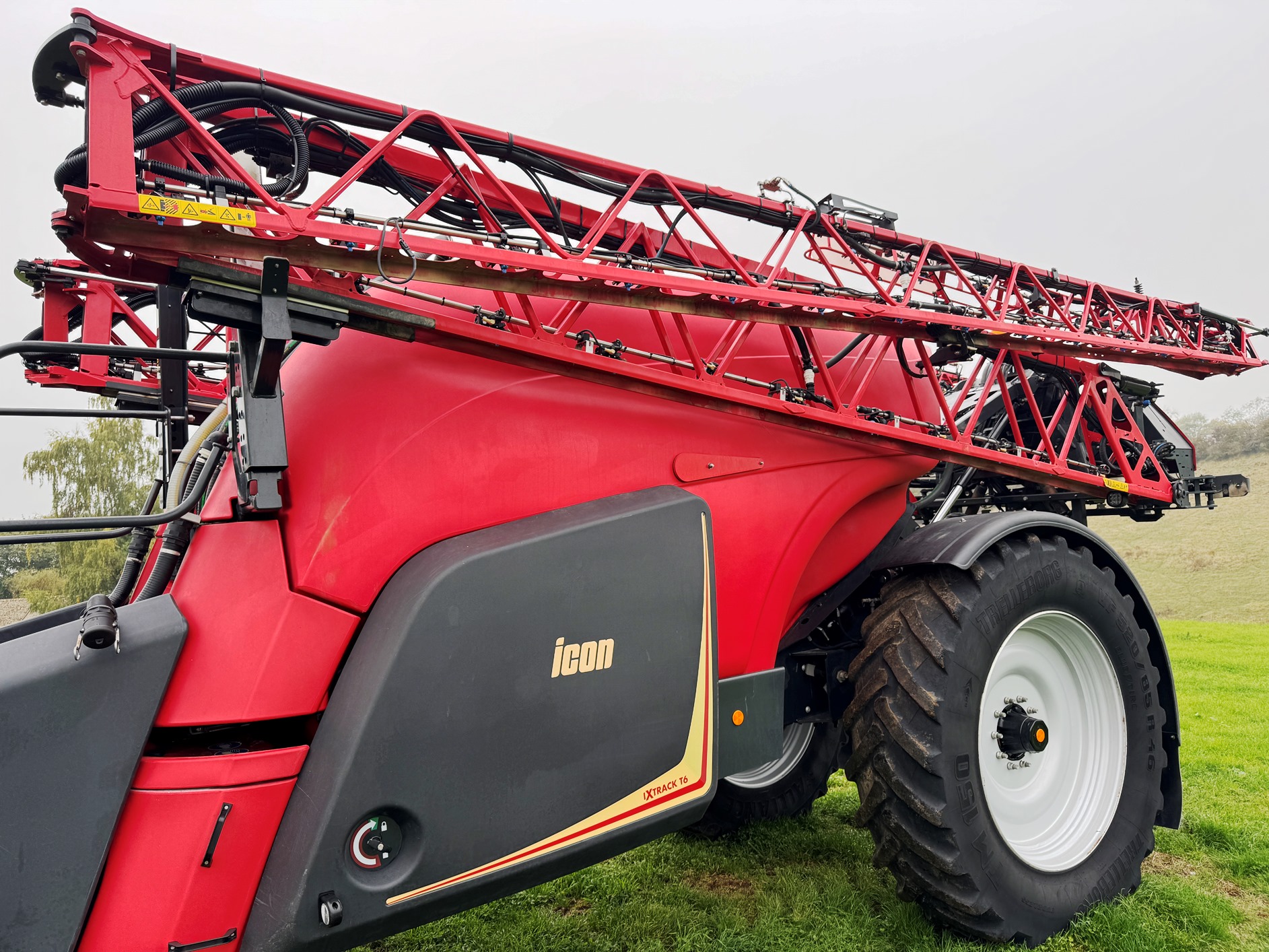

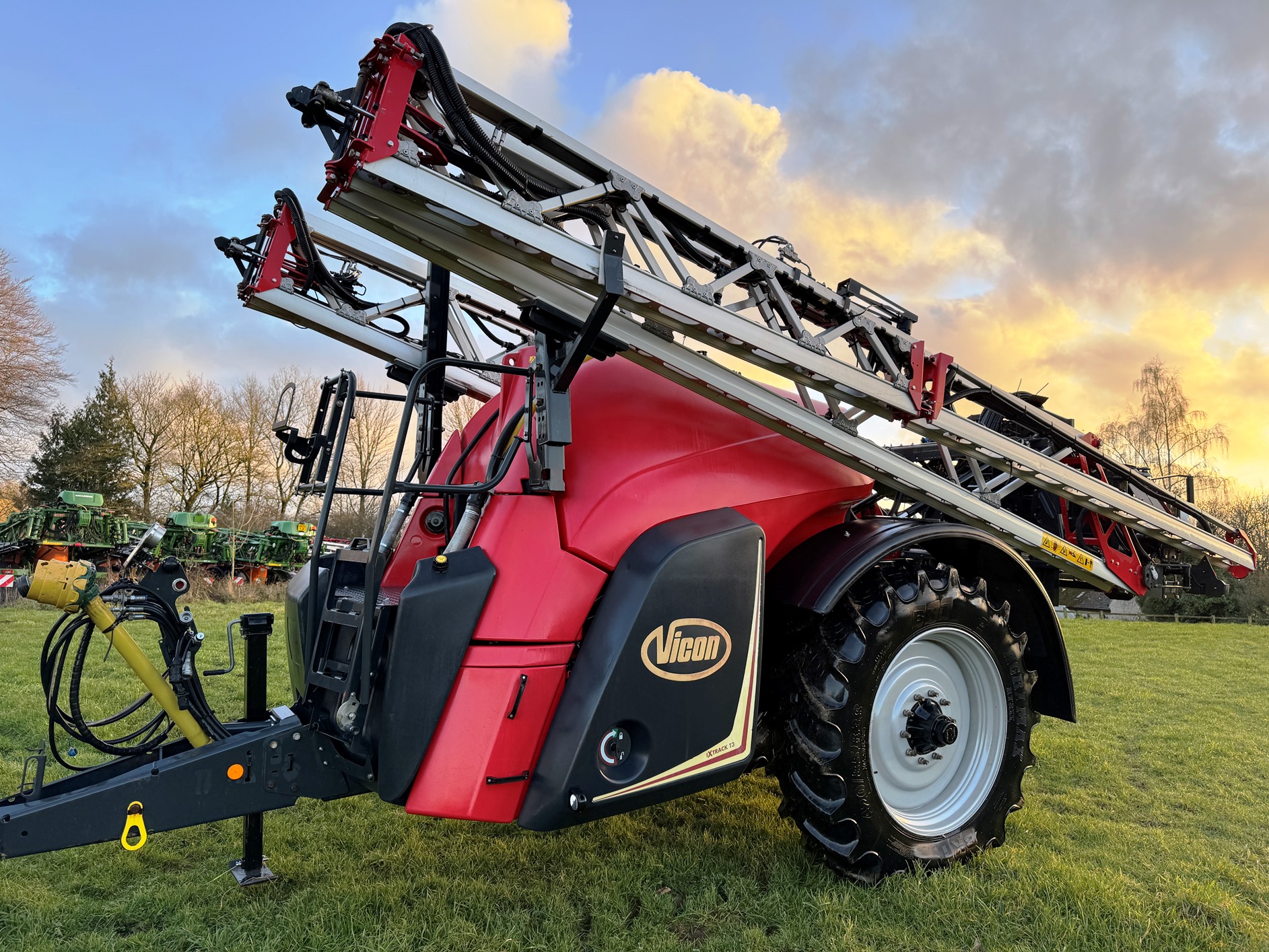

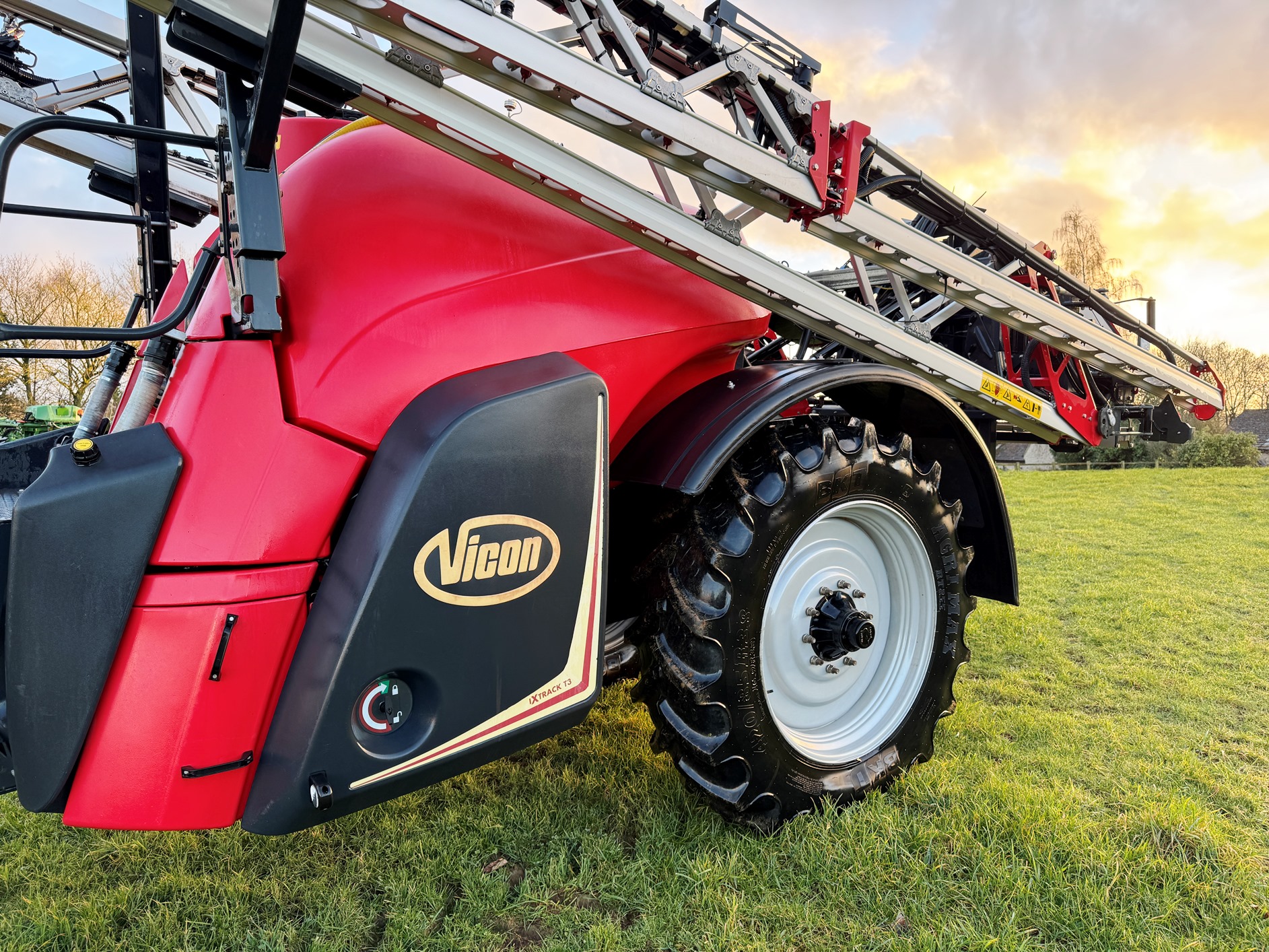

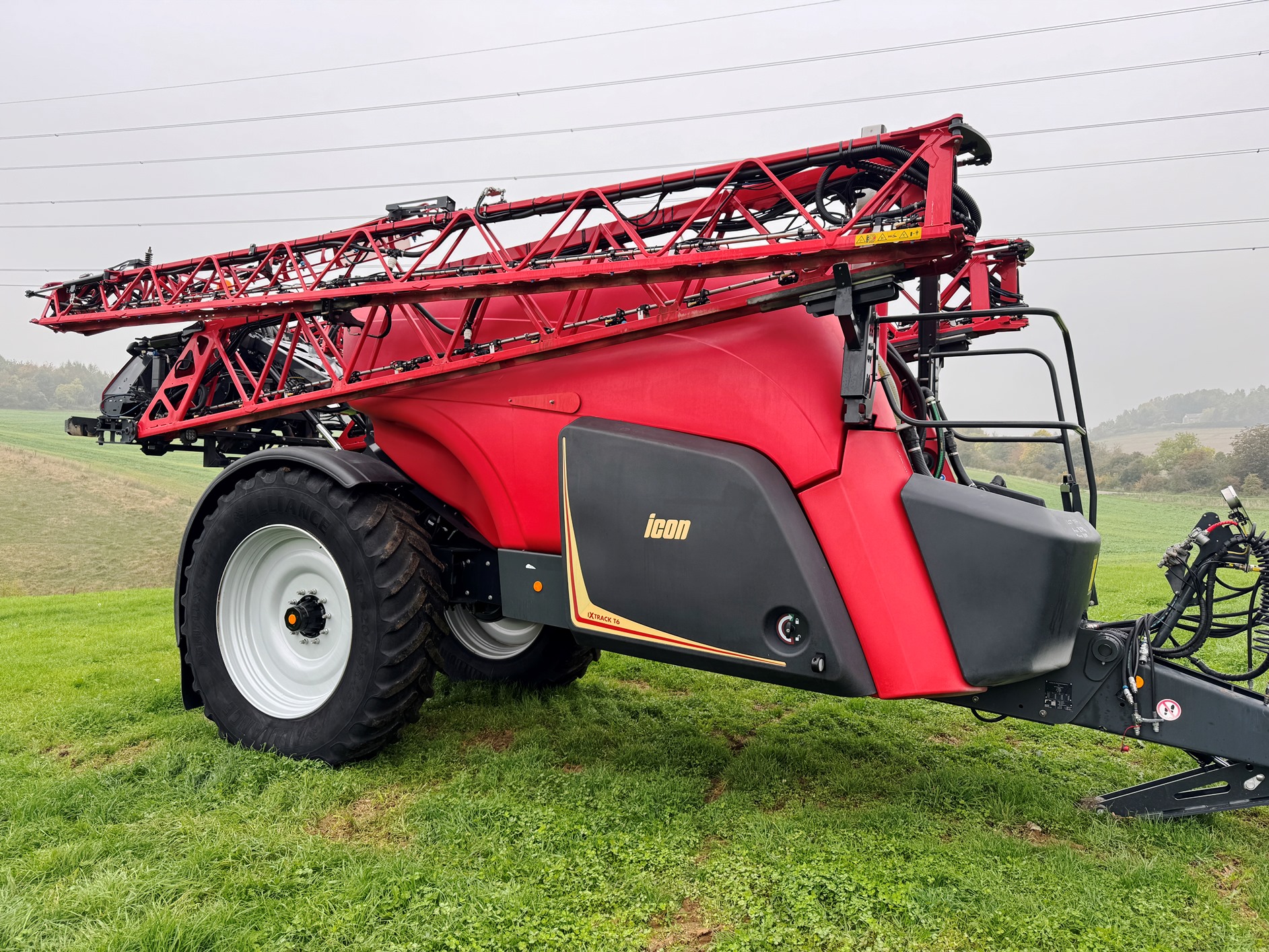

Vicon Ix Track T6 – 36m – 2020

Serial number: XRTSP6000LCY00118

Age and condition:
Year 2020
Hectares: 36,000
Condition: a very tidy machine, obviously well maintained and absolutely no damage or repairs.

Chassis specification:
Auto steering axles; hydraulic demount jack; power beyond hydraulics; hydraulic drive; air from tractor; suspension and braking; full road lights.

Sprayer specification:
6000 lt polypropylene tank with full in field tank washing
Separate clean water tank and in field tank washing
36m multi fold boom with individual variable boom geometry
Auto boom height control
boom lights
Spray lines fitted with tri-jet nozzle assemblies with individual nozzle switching
Isobus operation – GPS section control
Ix Fill controls – Digital tank filling and contents
Ix Cleaning
low level chemical induction bowl with pressurised can washing
Altec P260 x 2 (520 lts/min) piston pump; self fill and hose; hydraulic drive.
Three stage filtration, pressure and suction
Separate clothes locker and hand washing
External wash down

Control system:
Isobus connection
GPS section control with individual nozzle switching
Auto boom height control

Wheels:
Intermediary: Alliance VF520/85R46 – 60% good

Supplied fully tested, serviced as required and a 12 month NSTS certificate

IMG_2237

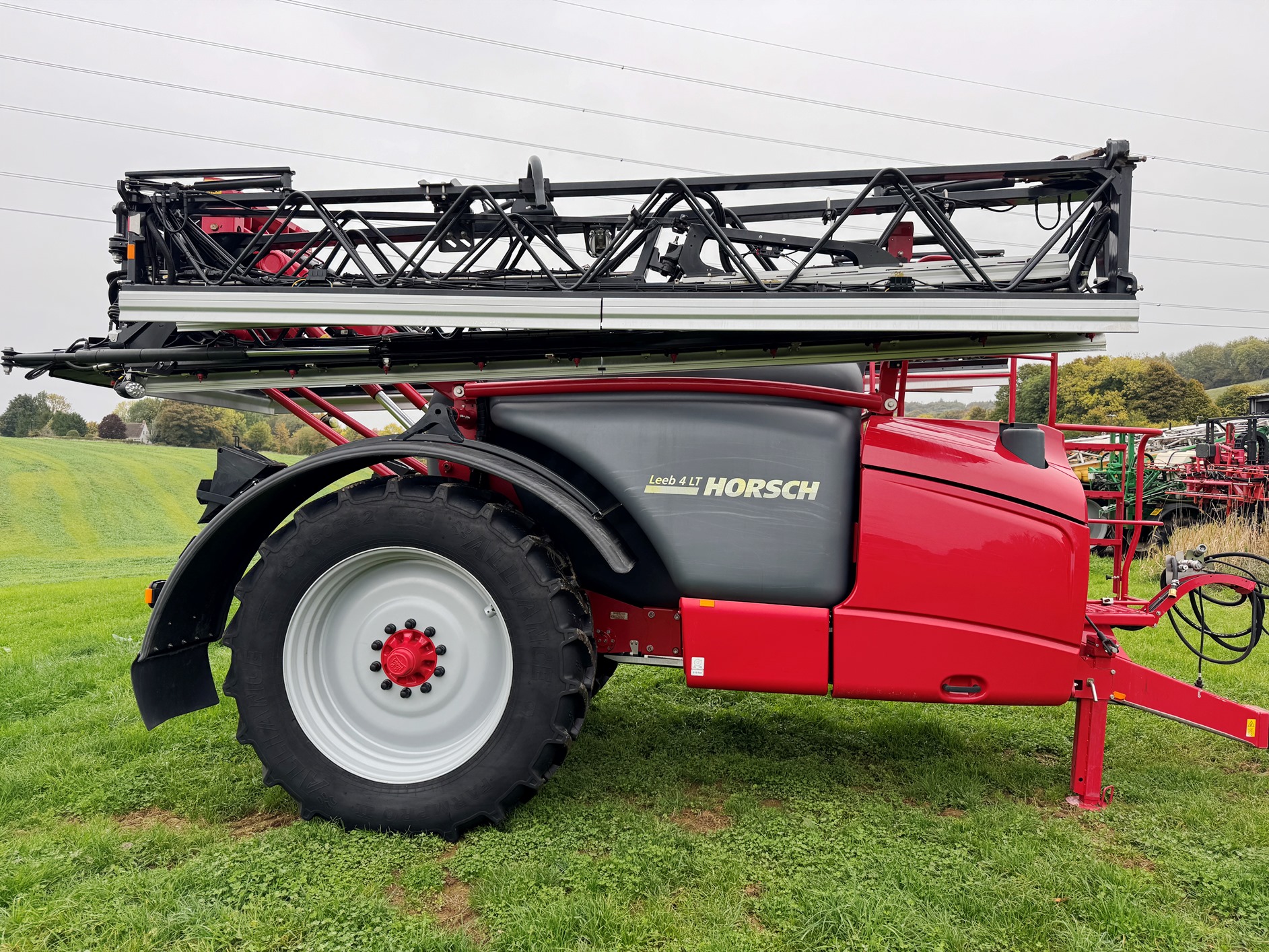

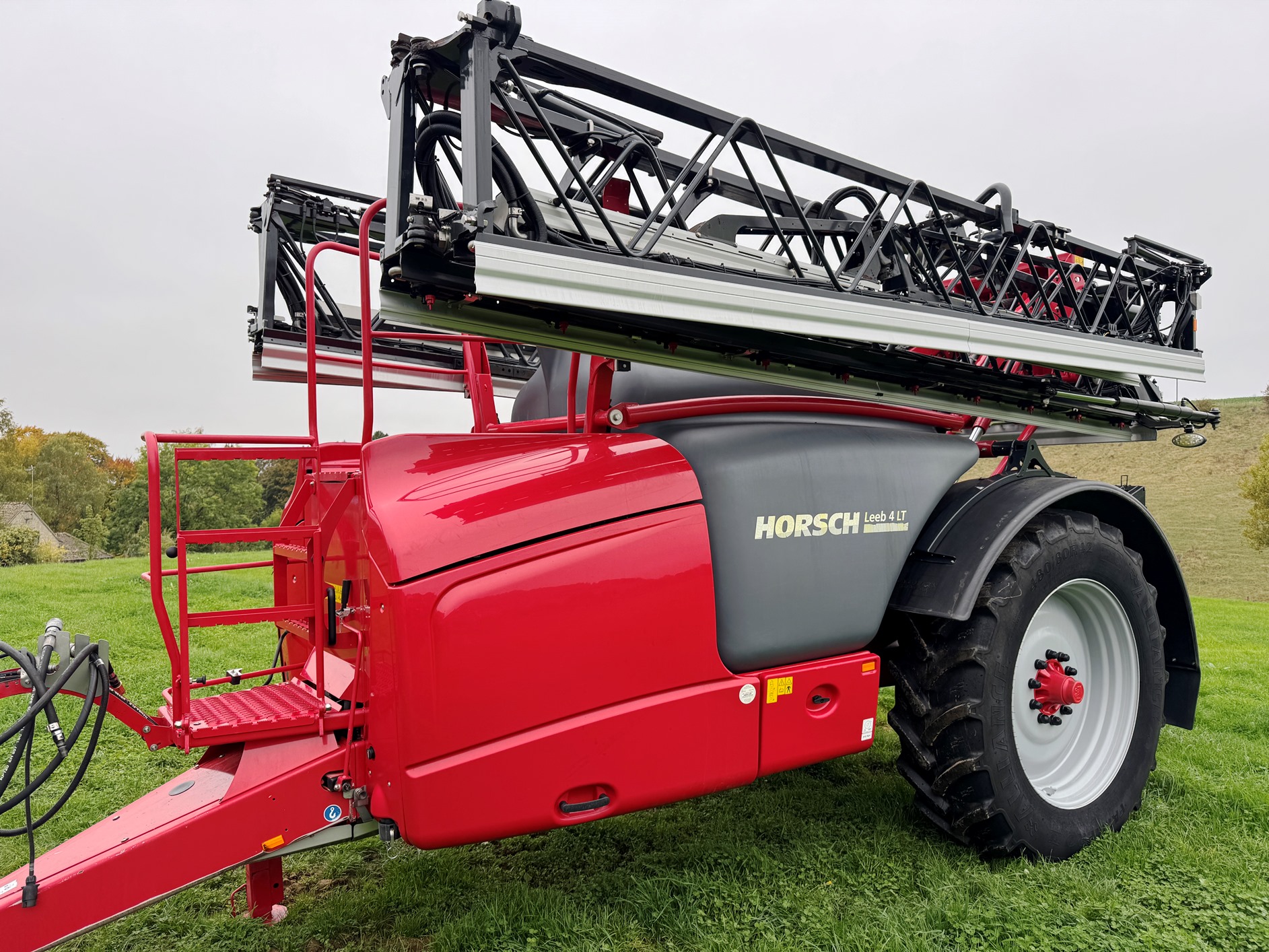

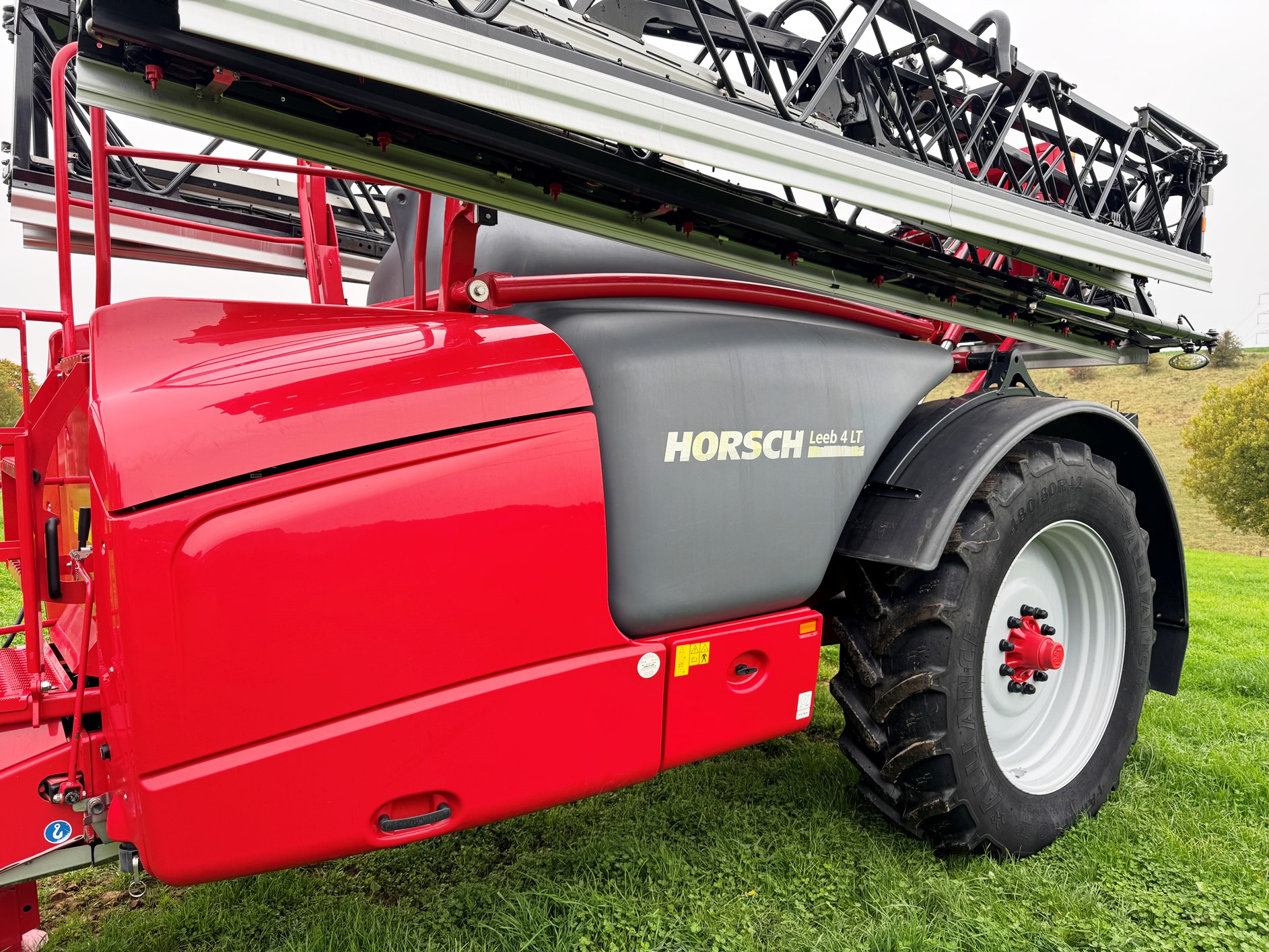

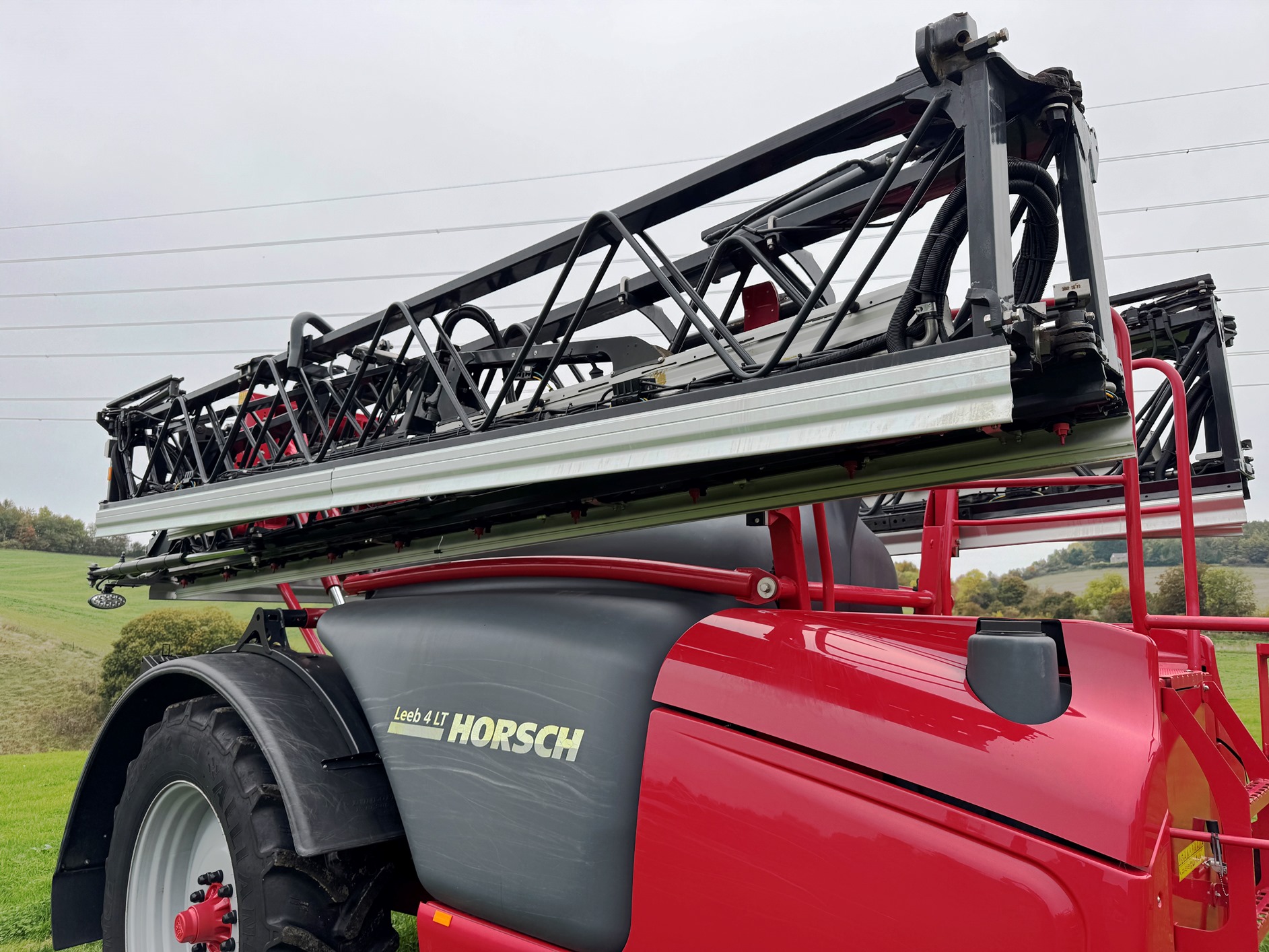

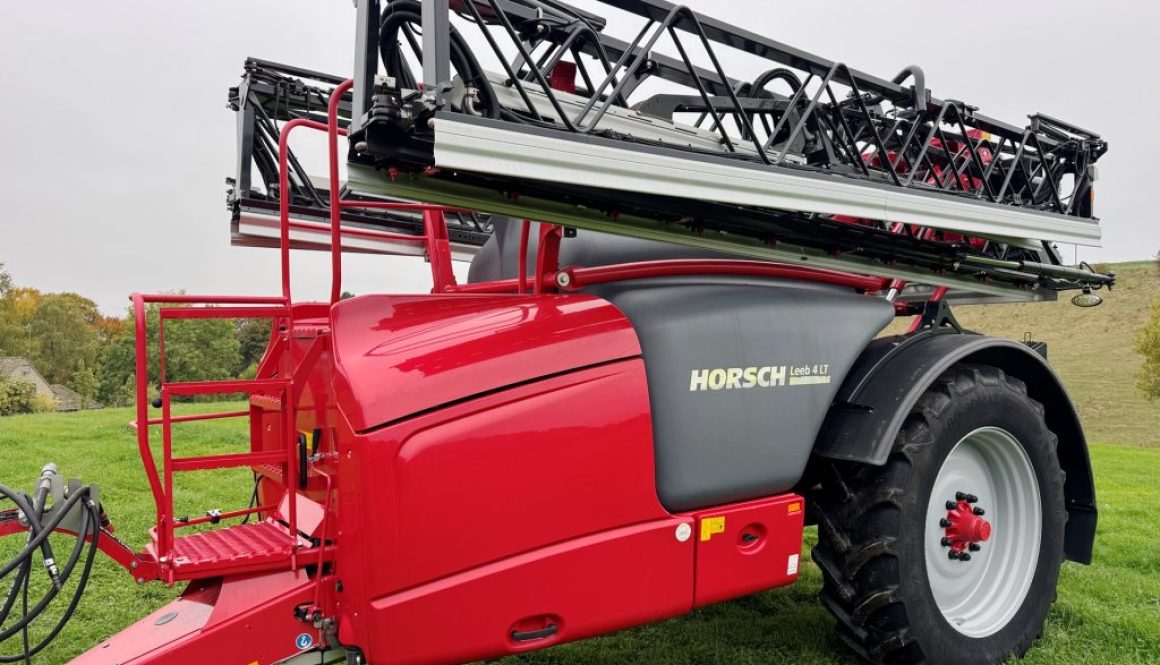

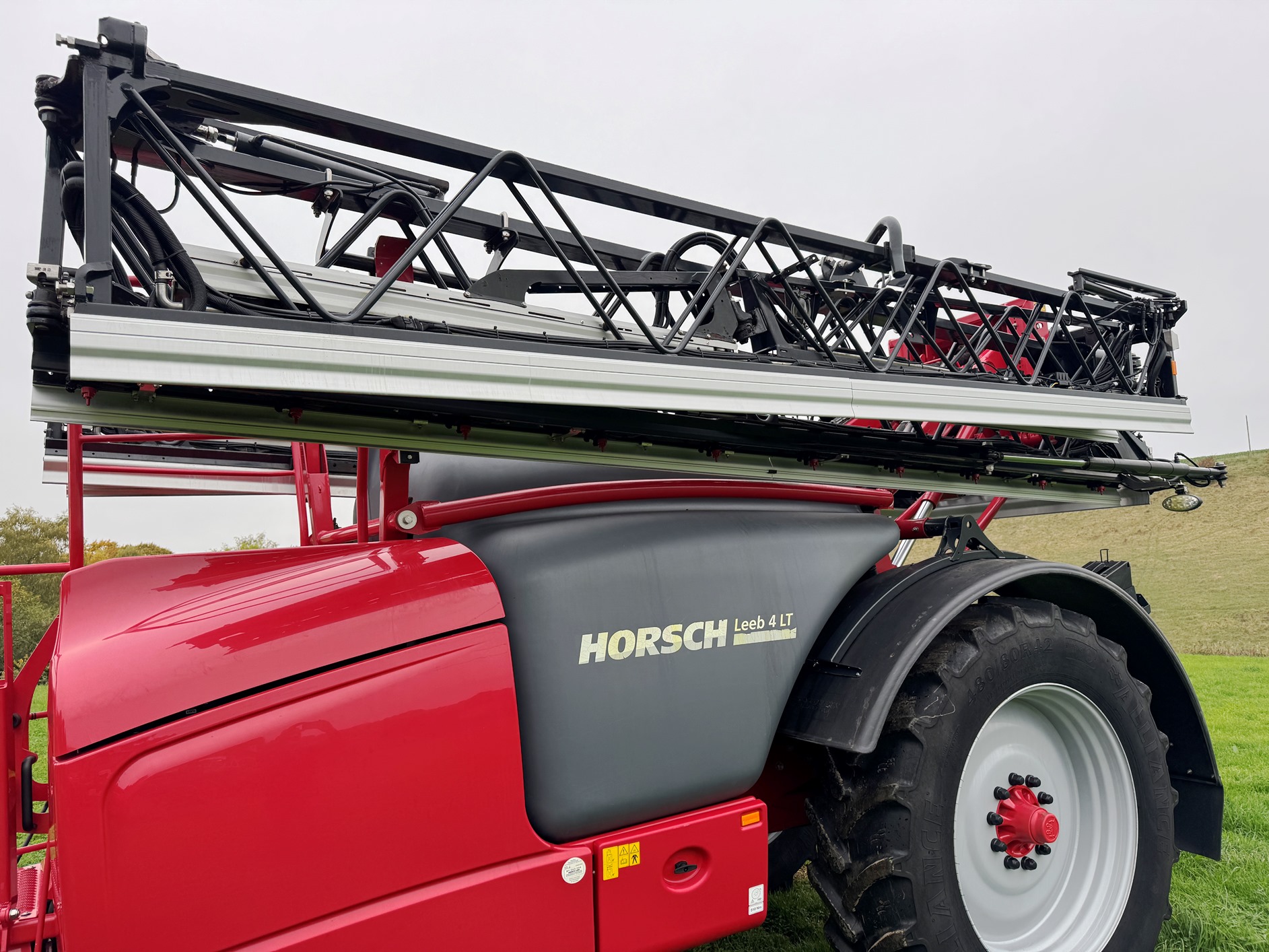

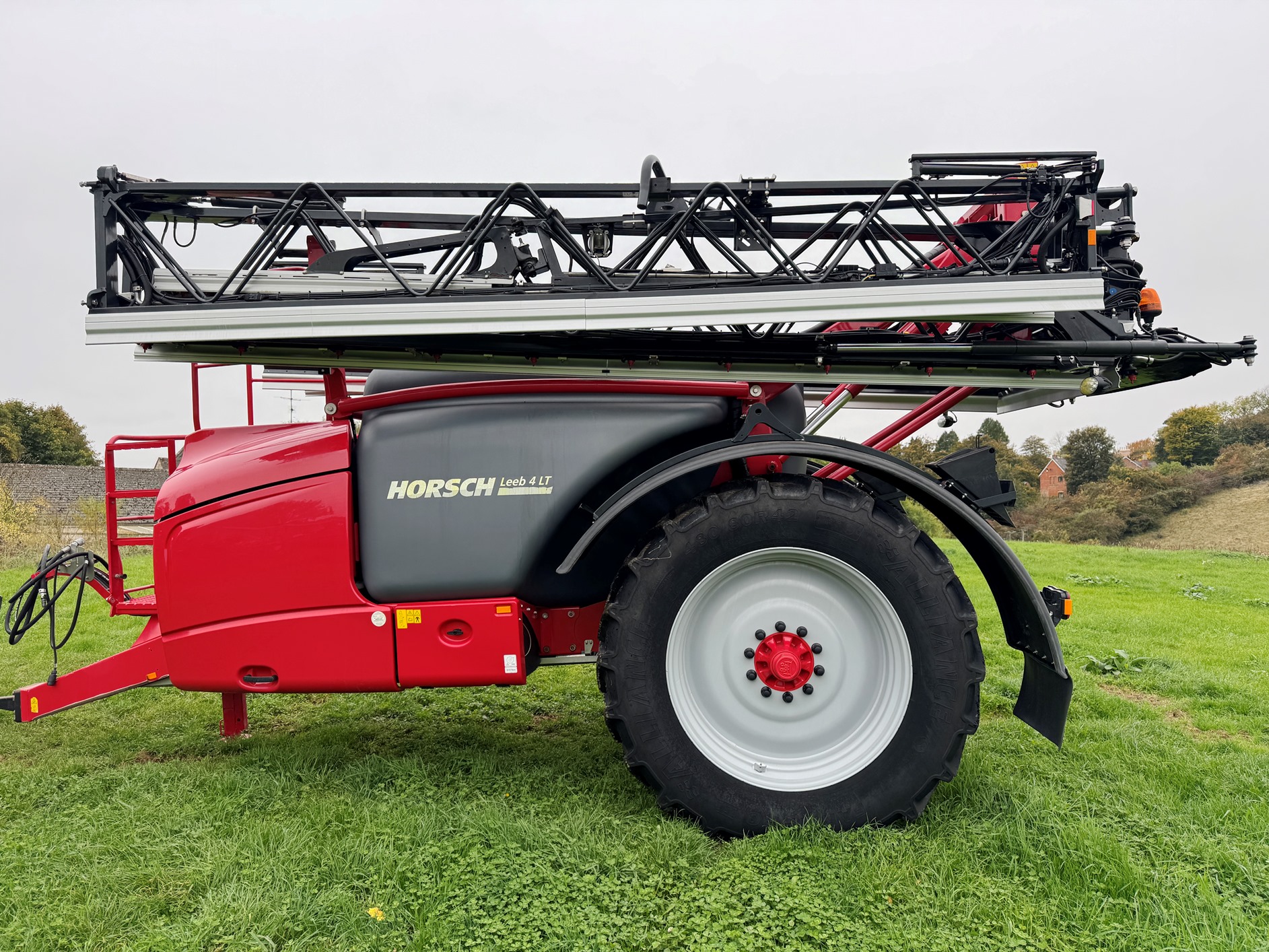

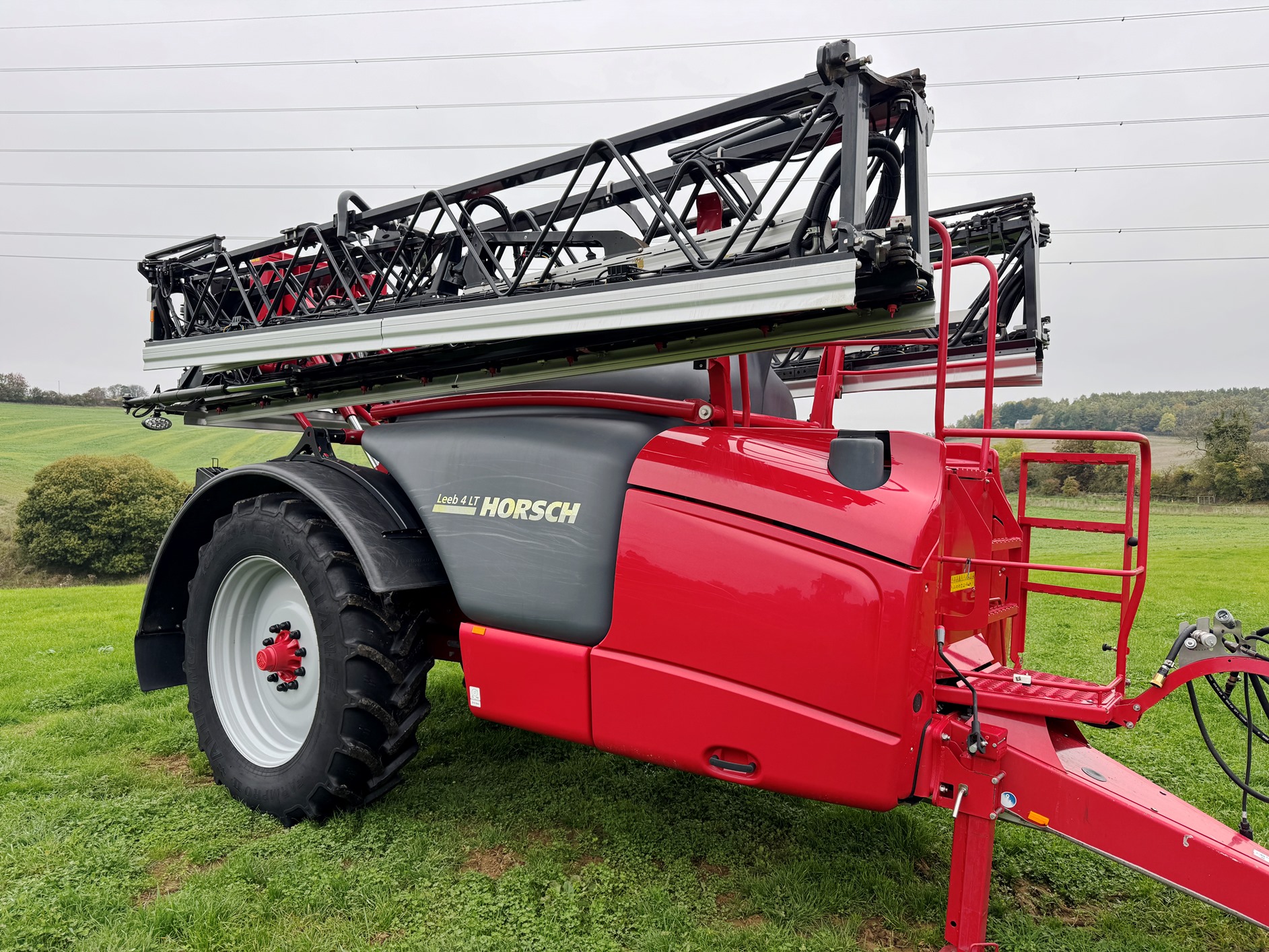

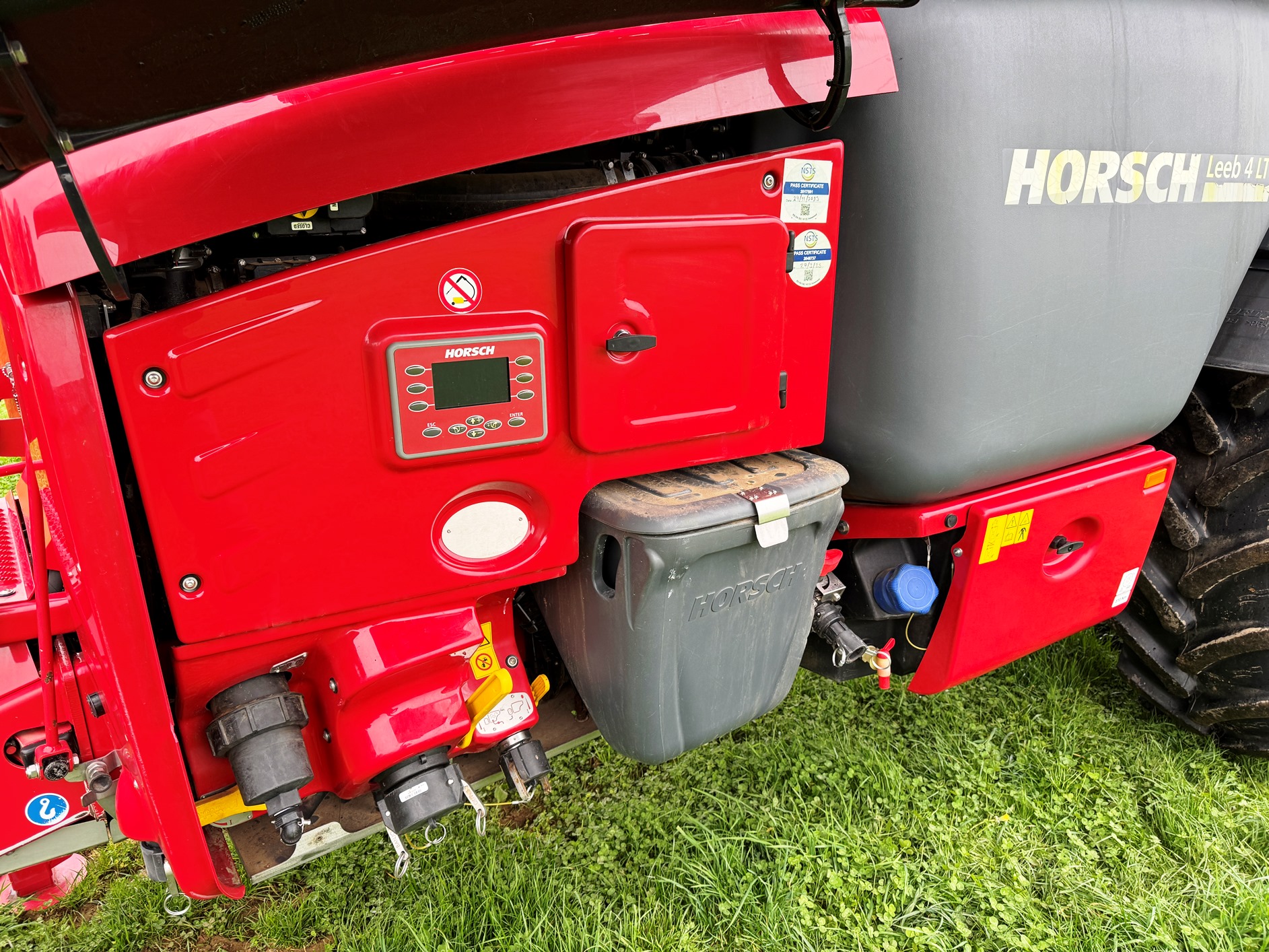

Horsch Leeb 4LT – 30m – 2020

Serial number: 36722669

Age and condition:
Year: 2020
Hectares sprayed: 14500
Condition: mint! Machine in excellent condition, no liquid fertiliser application and from straight arable farm. Incredibly well looked after and immaculate condition, no damage or repairs.

Sprayer specification:
4000 lts tank polythene (PE), optimized shape for low centre of gravity
400 lts clean water tank for in field tank washing
Auto steering rear axles
Plumbing: CCS Pro filing and washing.
Centrifugal 600 lt/min pump (hydraulic drive with load sensing power beyond)
Additional agitation pump
In cab operation of all sprayer functions; finger tip controls at work station; digital tank filling and control; Sprayer self fill
Booms: 30m boom with Boom Control Pro – 4 sensors with independent boom incline positive and negative
Spray lines: fitted with Manual Select quad nozzle assemblies on 2 levels – auto selection between two jets; Full spray line recirculation.
13 section controls – GPS
Boom lighting with additional work station lighting

Control system:
CCS Pro plumbing
Boom Control Plus
GPS section control – 13 sections
ISOBUS connection with joy stick

Wheel equipment:
Alliance 480/80R42 – 80% good

Supply options:

Current NSTS certificate (number 2048737) valid until 27/03/2026: POA

OR

Supplied fully tested, serviced as required and a 12 month NSTS certificate: POA

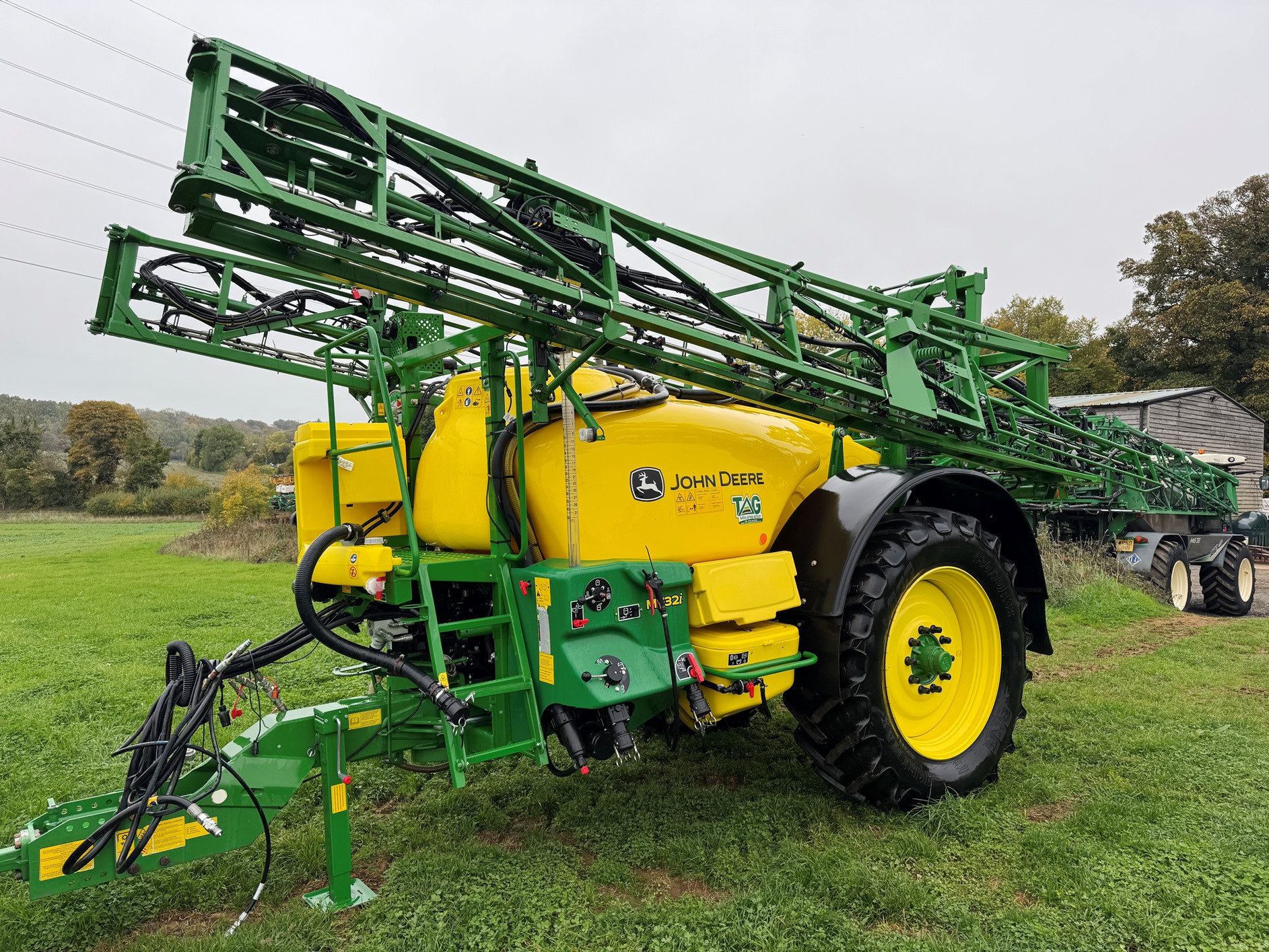

IMG_2250

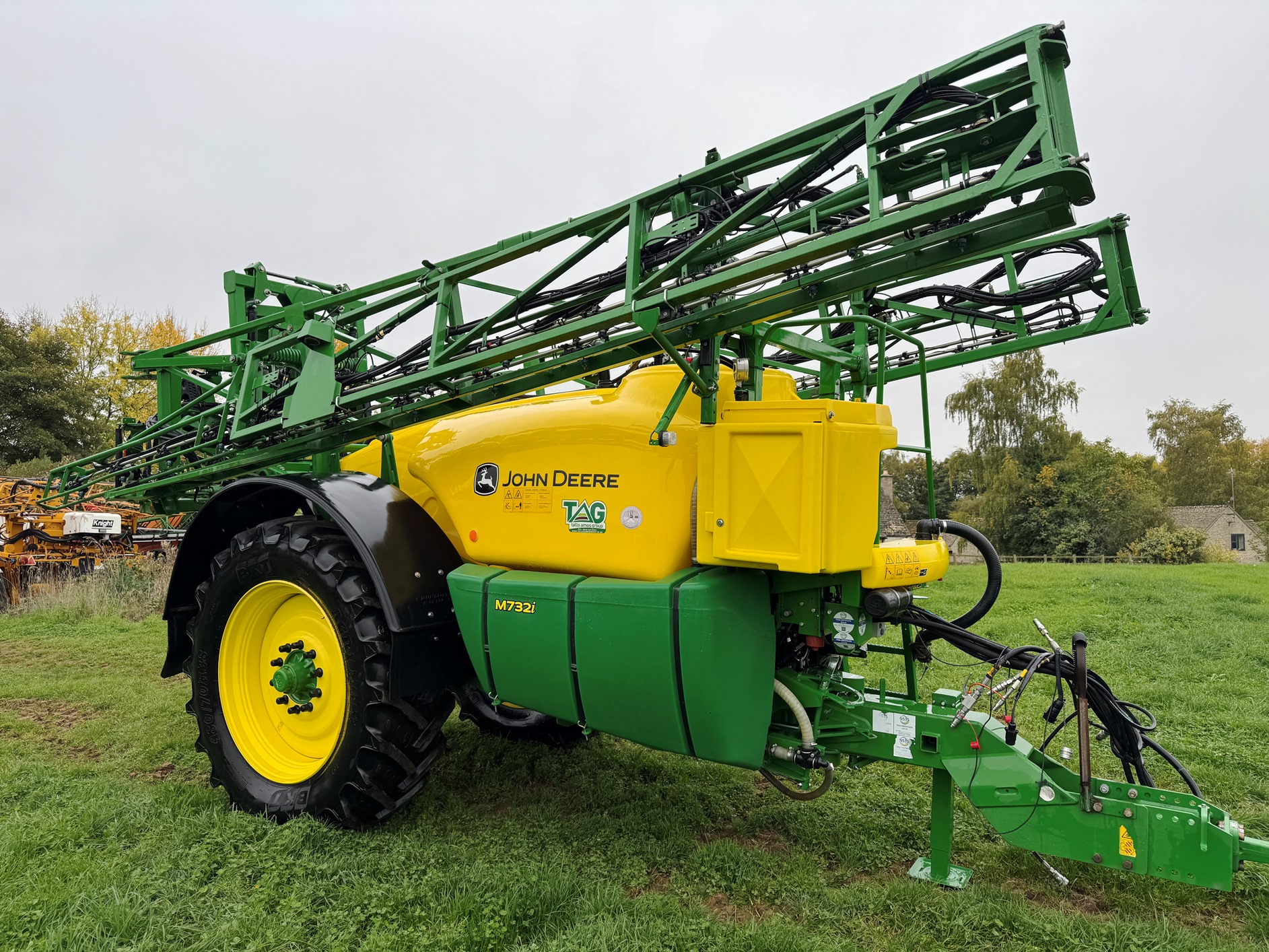

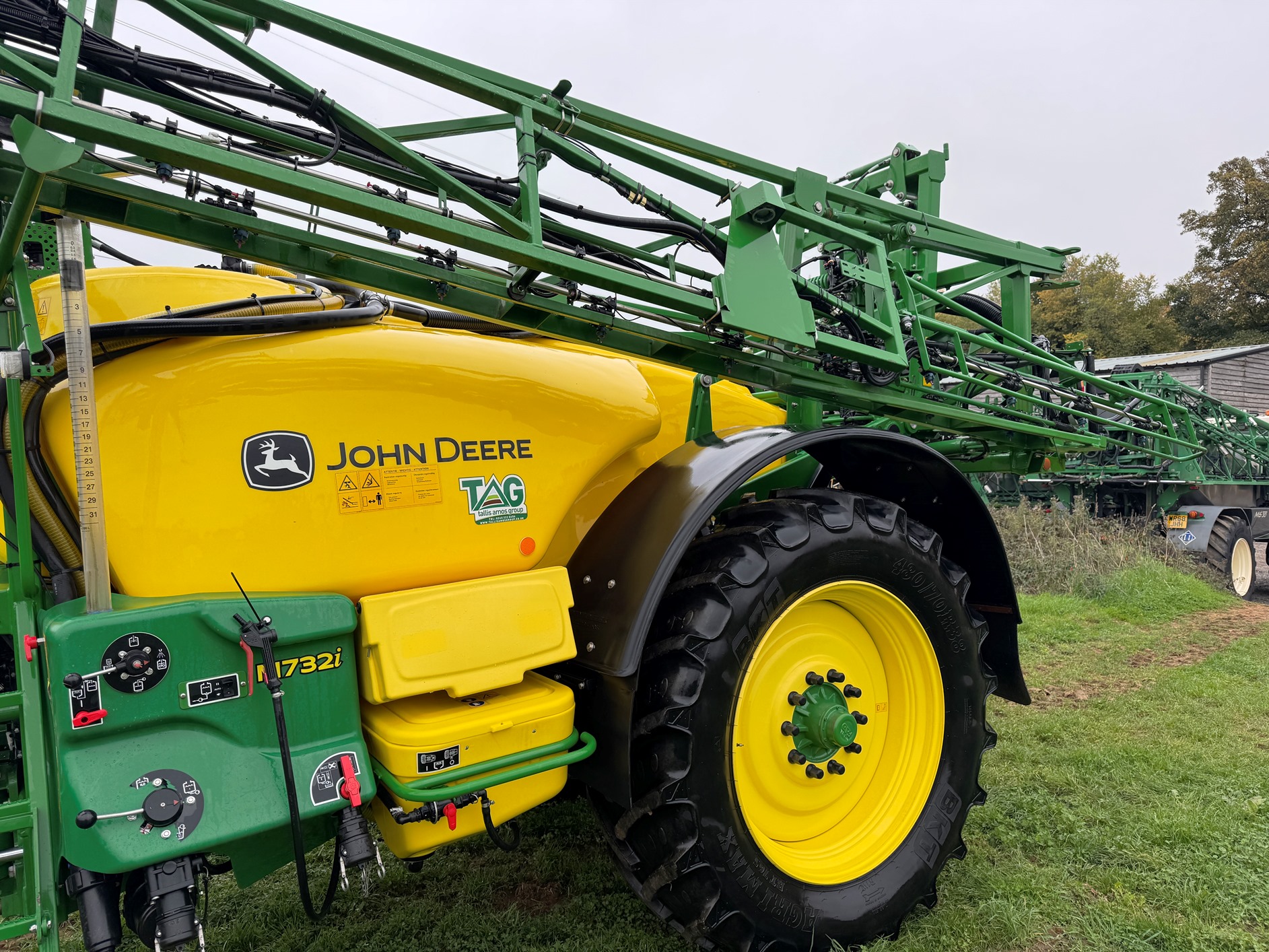

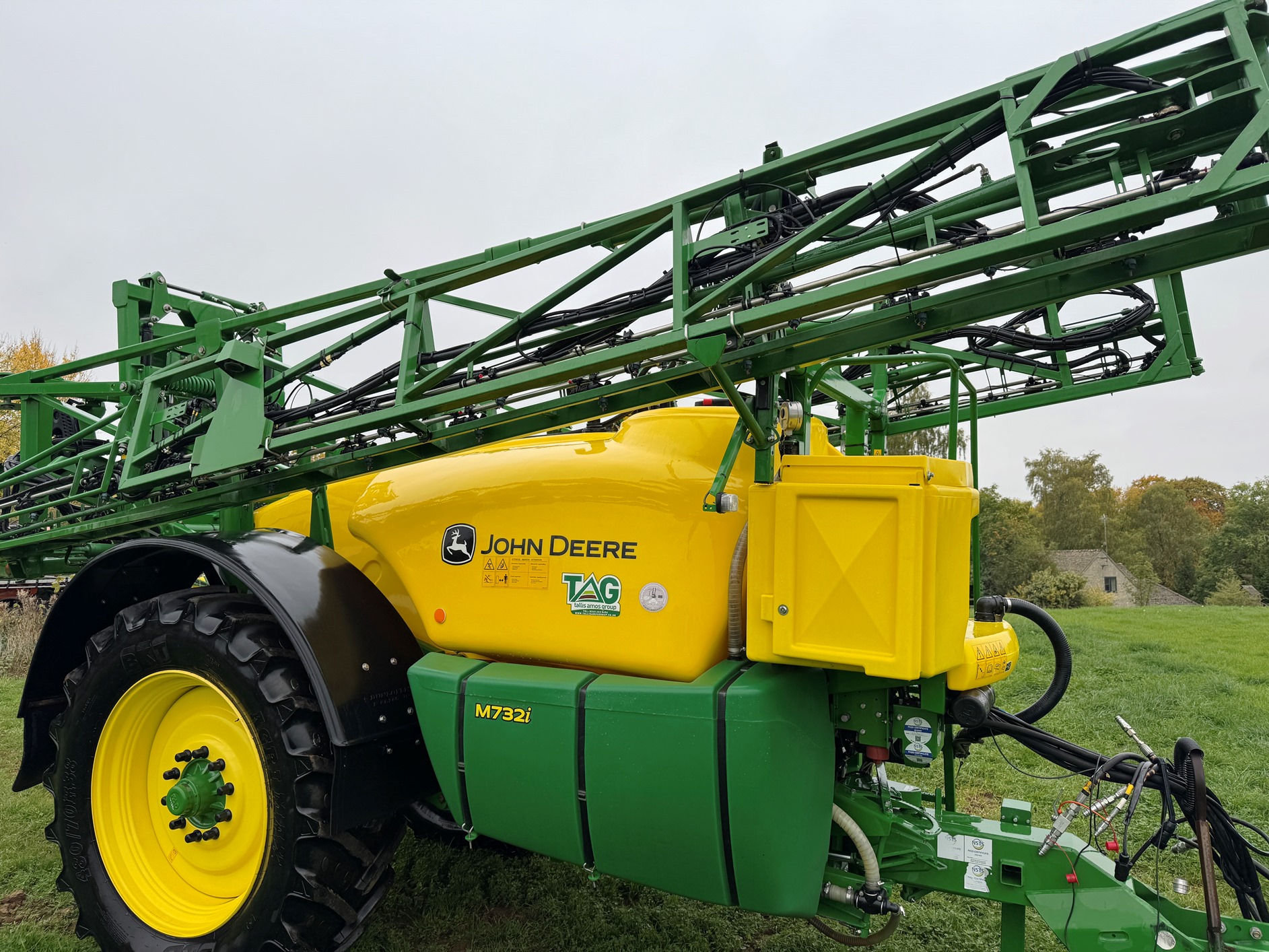

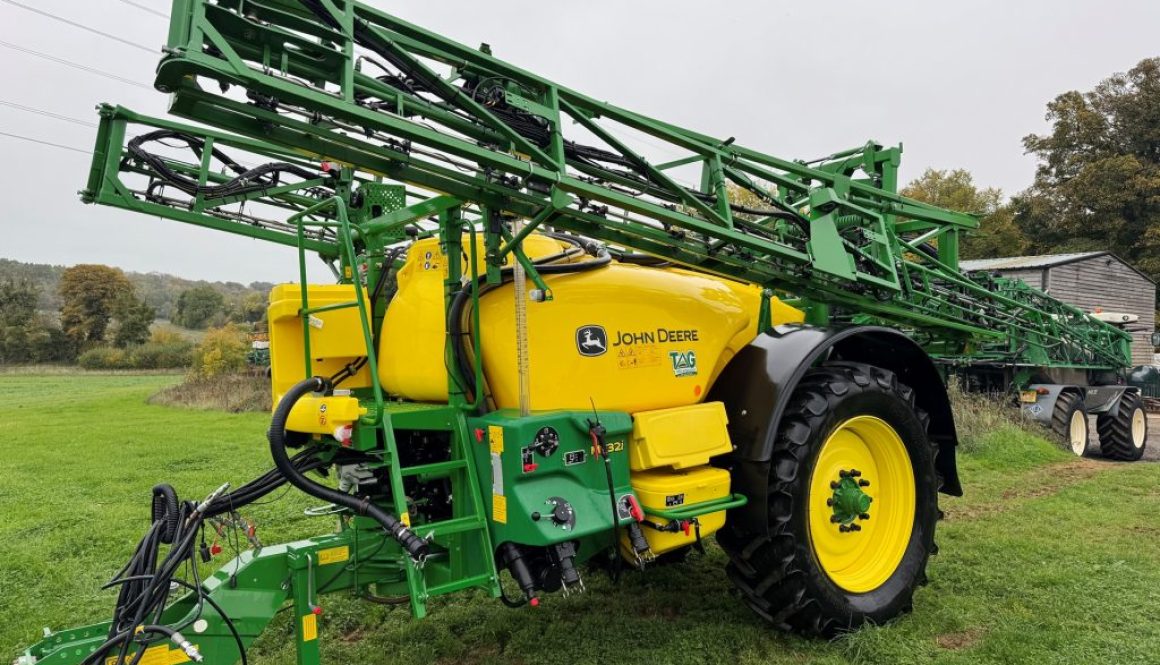

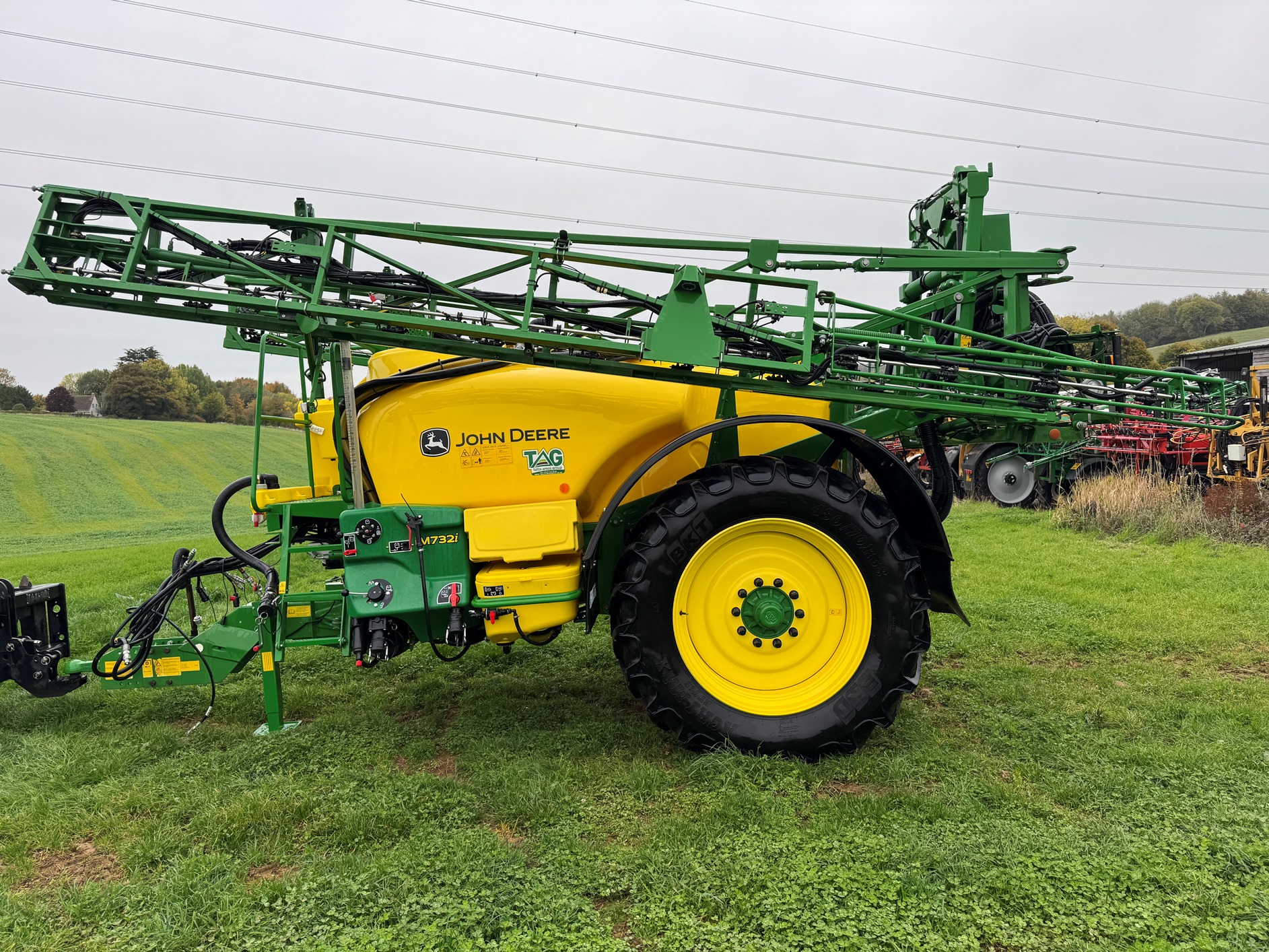

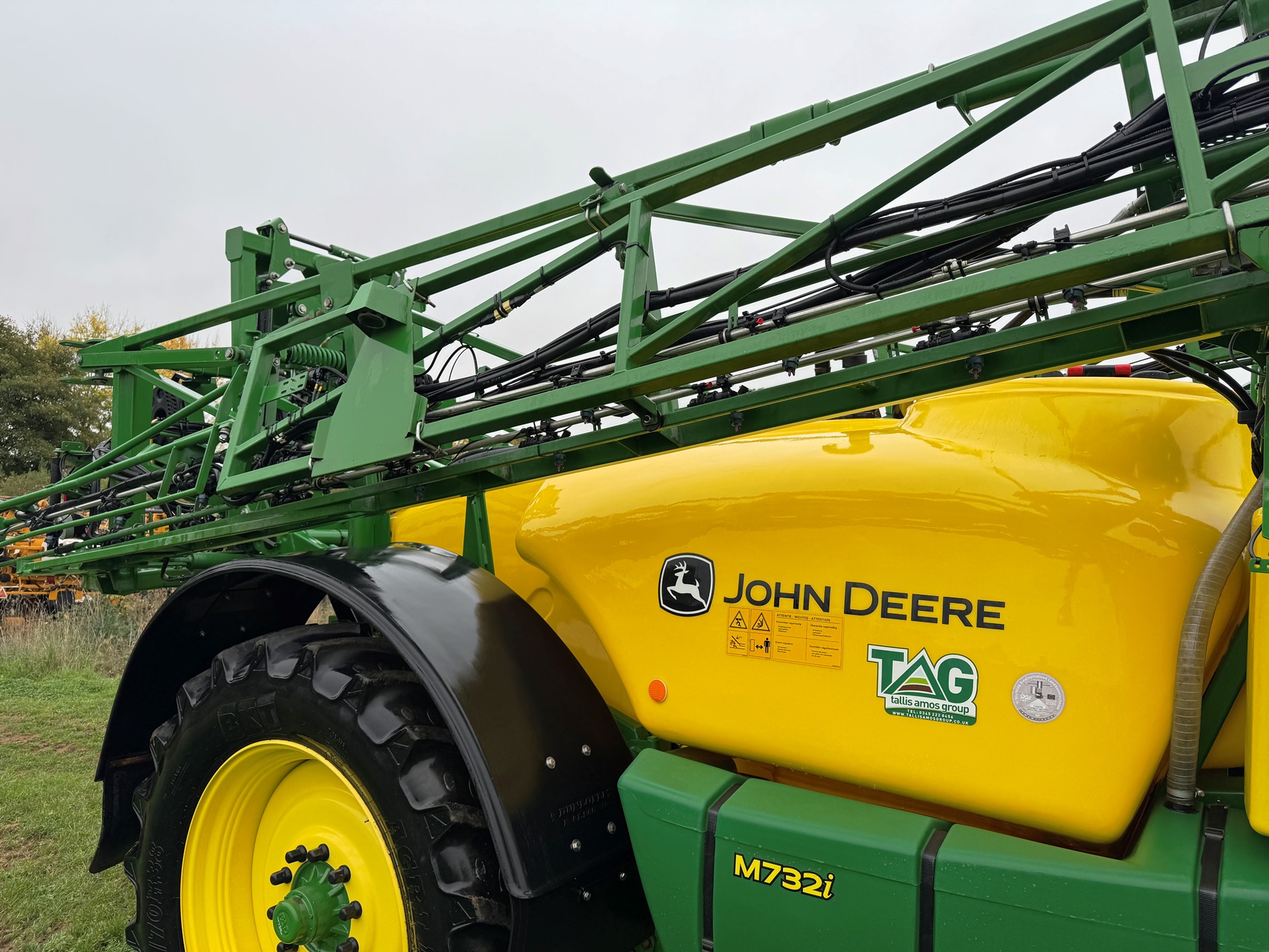

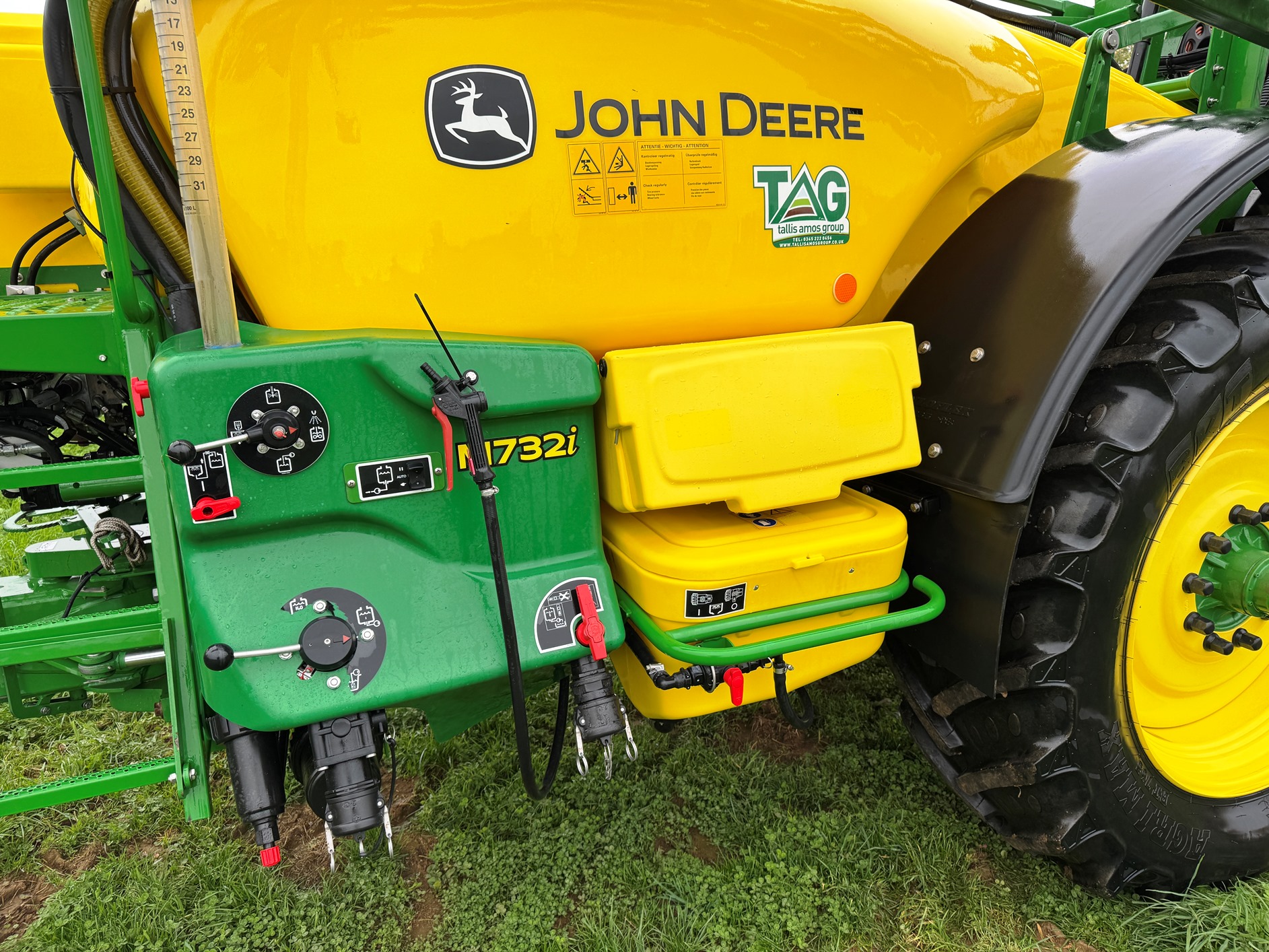

John Deere M732i 24m – 2019

Serial number: 1WZ0732MKK0190639

Age and condition:
Model year: 2019
Hectares: 11765
Condition: very good, really almost like new, all straight and immaculate condition.

Sprayer specification:
3200 lt tank with full in field tank rinsing (400 lts clean water)
Fully automatic steering
24m fully hydraulic booms mounted on Z parallel linkage with boom suspension and anti-yaw dampening
Auto boom height – Boom Trac
Boom Lights
Stainless steel pray lines fitted with 5 way nozzle bodies; air shut off nozzles; CVS recirculation.
All in cab controls with GPS section control
All plumbing controls controlled via two manual control taps on near side of sprayer
Low level chemical induction bowl with full can washing
Storage locker and clean water for hand washing (40lts)
Sprayer fitted with AR280 BP lt/min piston diaphragm pump and self fill and pipe – hydraulic drive
On board compressor hydraulic drive
Power beyond hydraulics
Full chassis suspension with aeon progressive block
Road lights, hydraulic braking and demount stand
External wash down
Scharmuller 80mm ball hitch

Sprayer controls:
Isobus operation
Supplied with joy stick
GPS section control 8 section
Boom Track

Wheel equipment:
Intermediary: BKT Agri Max 480/60R38 – 90% good

Supply options:

Current NSTS (number 2029313) valid until 13/01/2026: POA

OR

Full sprayer testing and a 12 month NSTS certificate: POA



IMG_2004

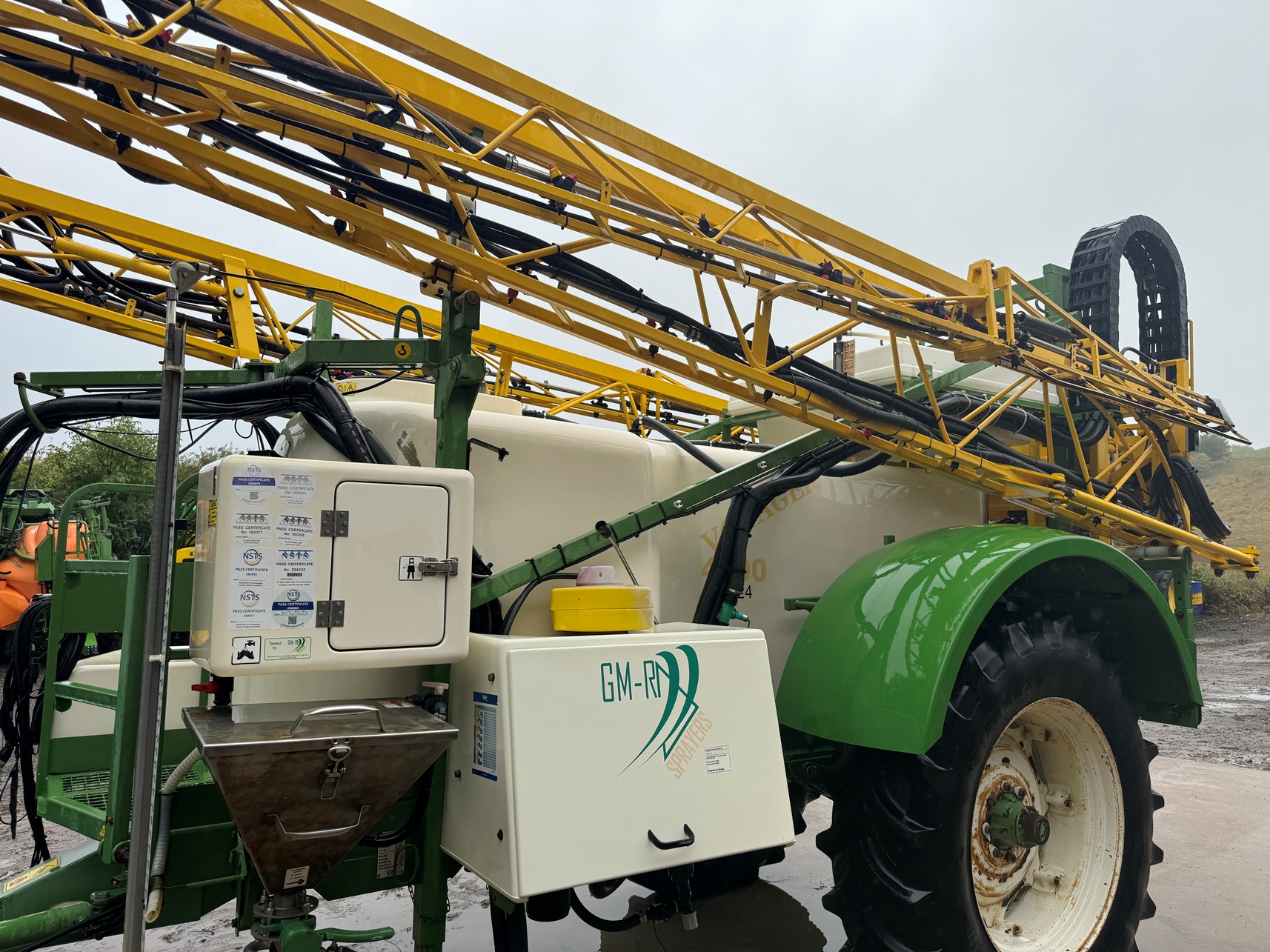

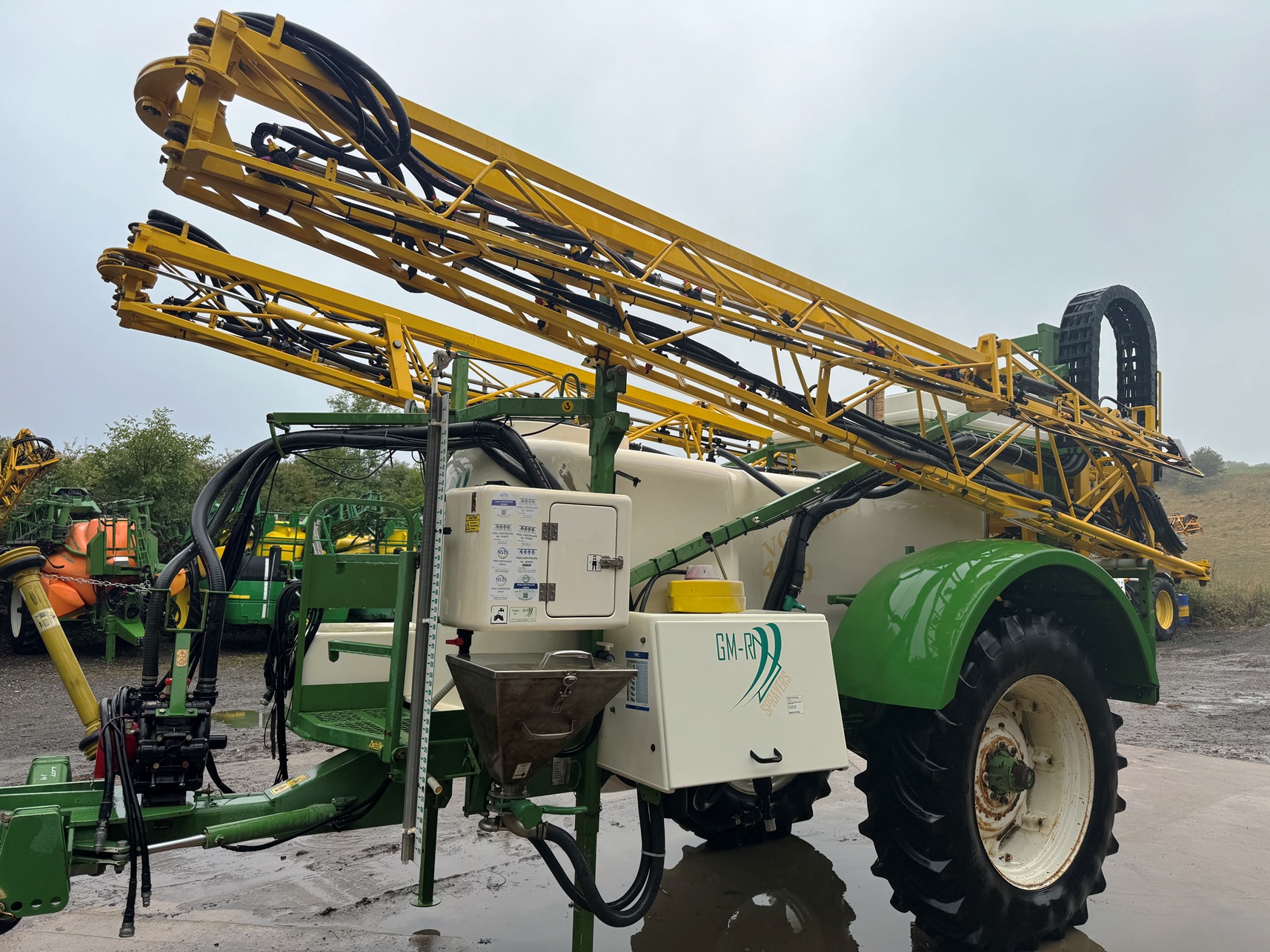

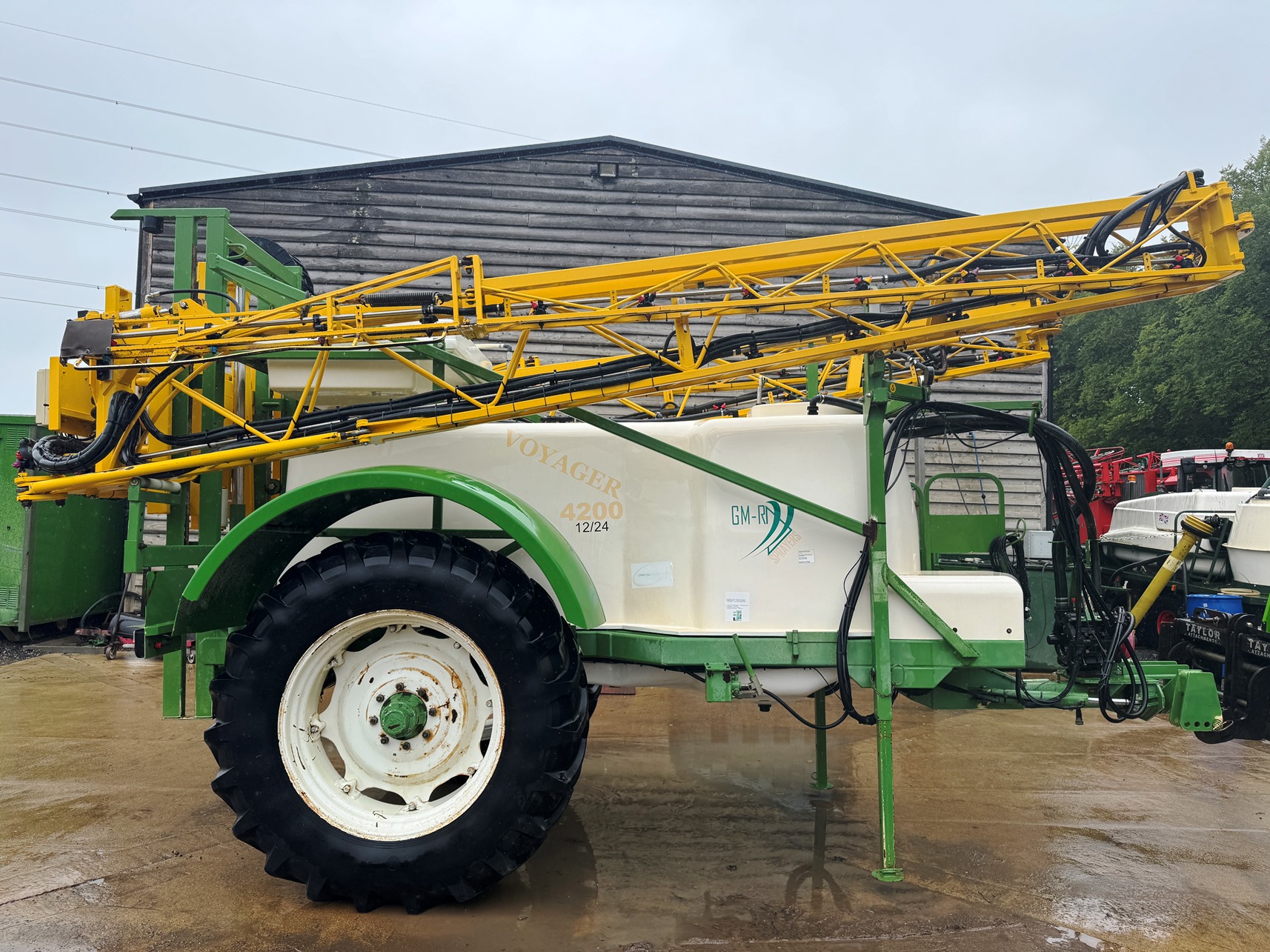

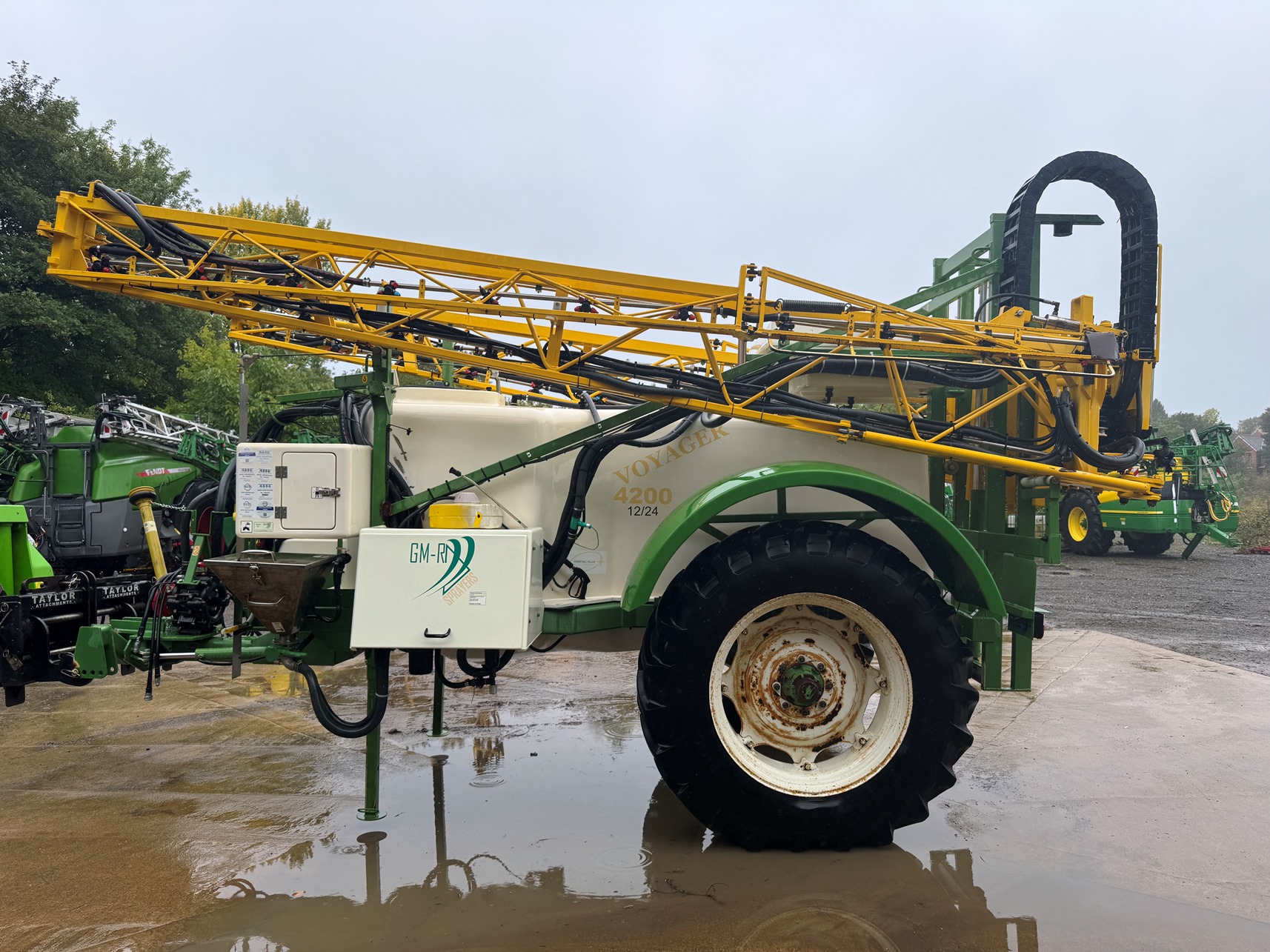

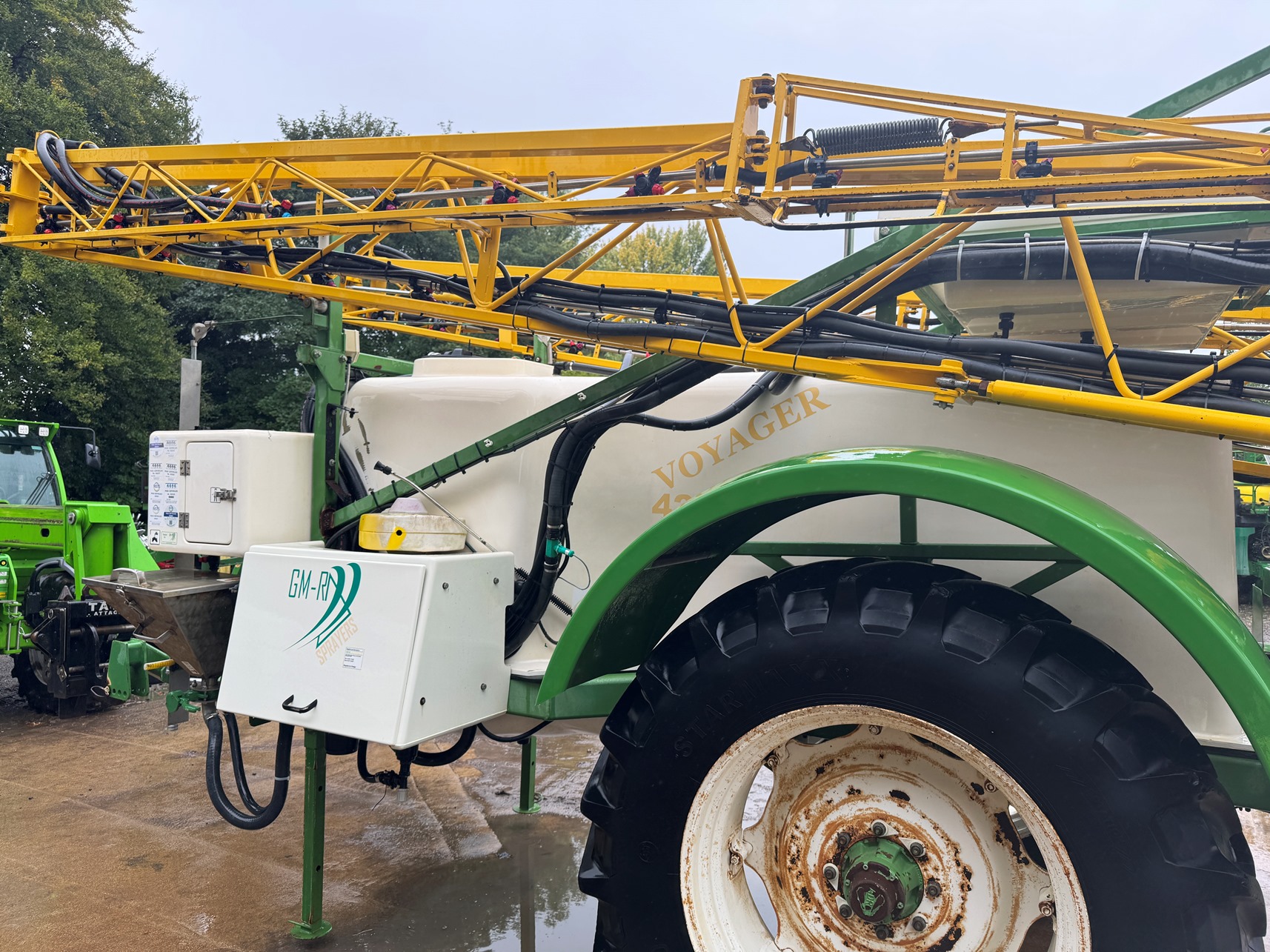

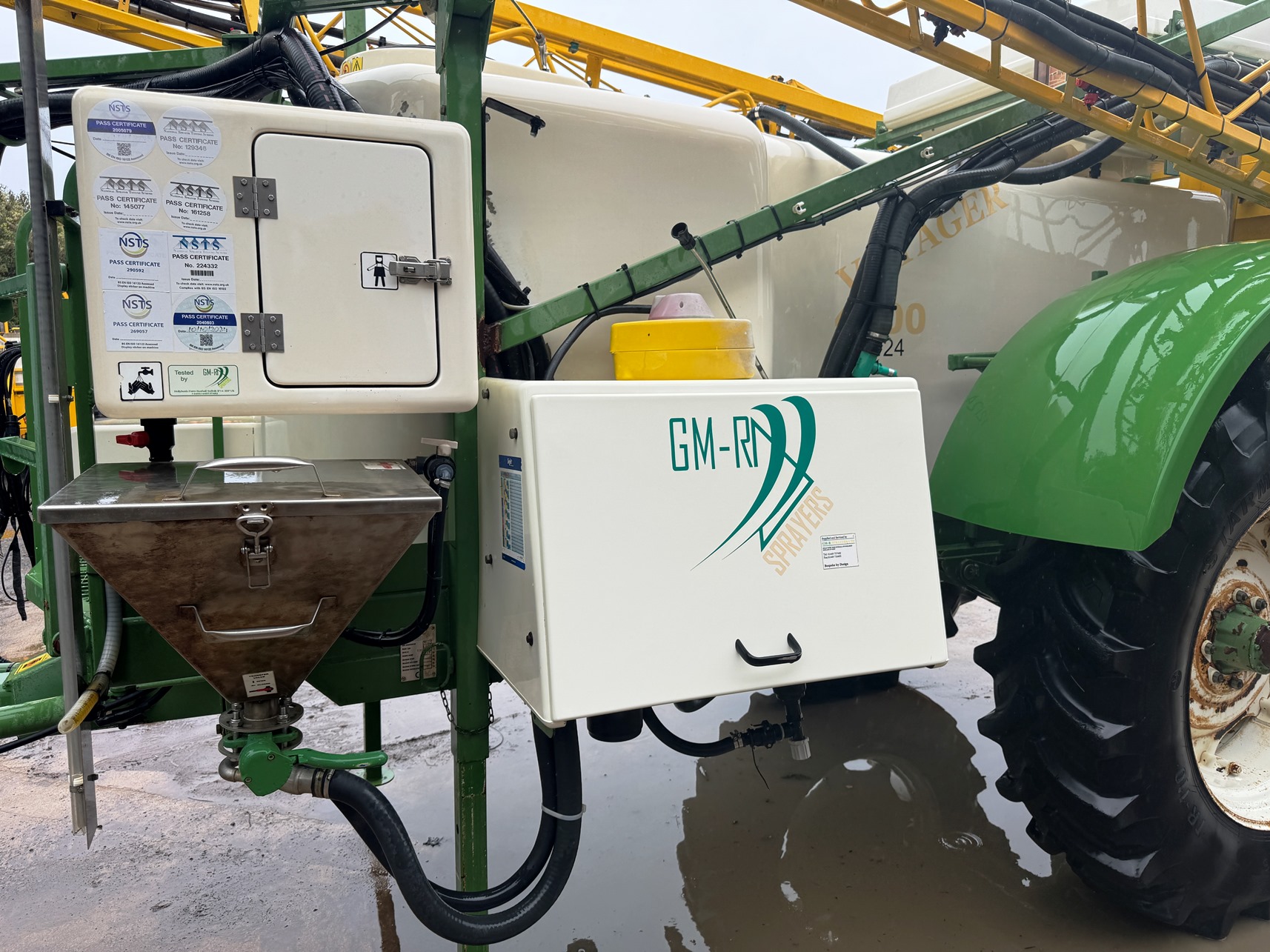

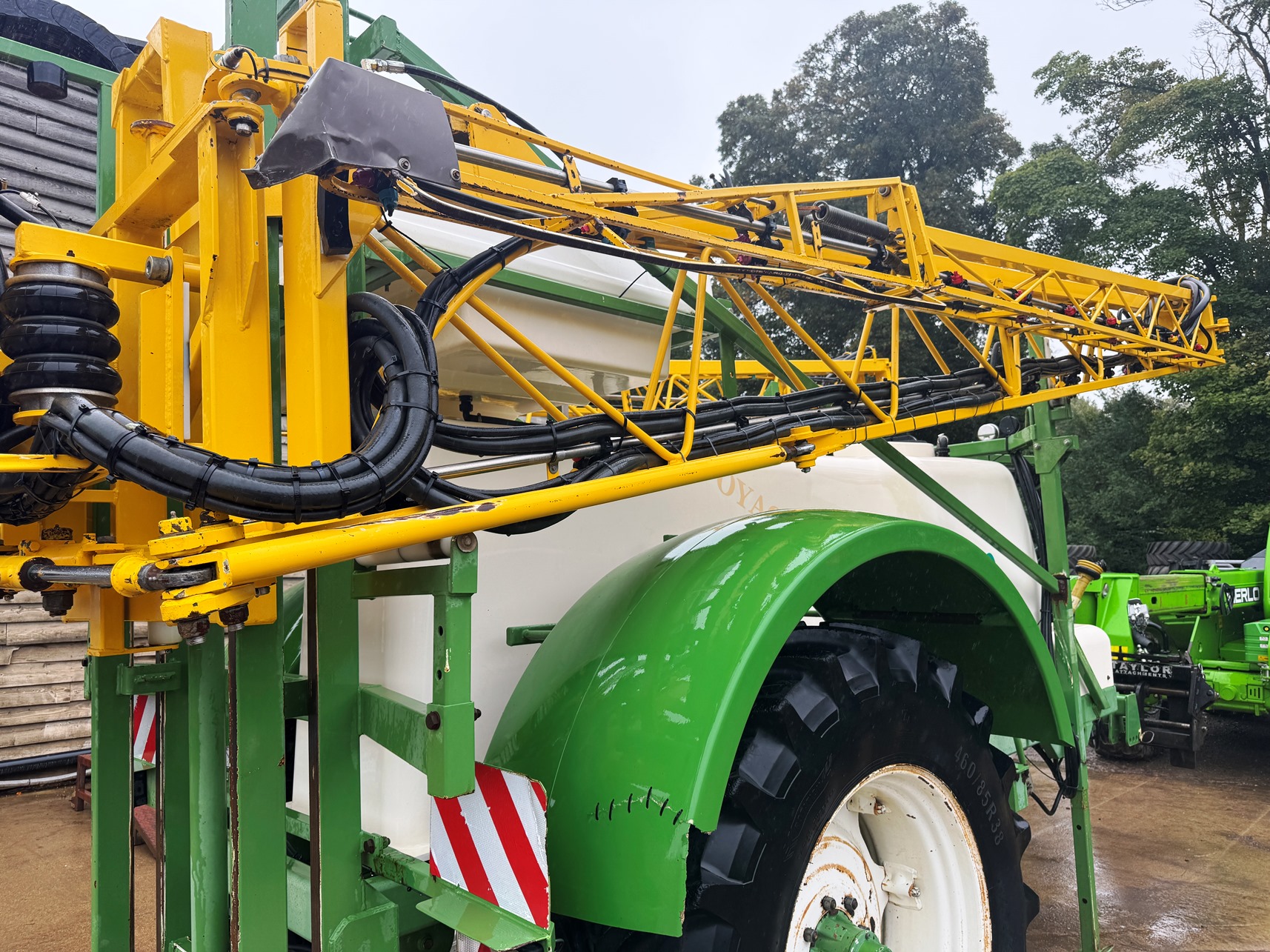

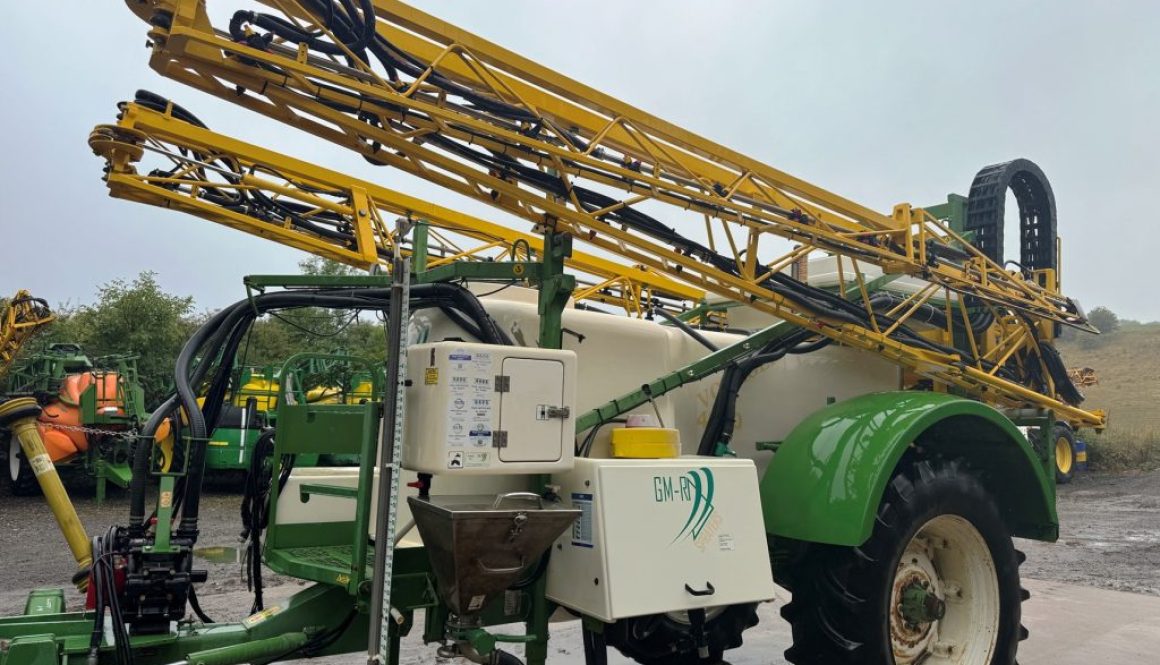

GMR Voyager 4200 24m – 2012

,

Serial number: 1203411

Age and condition:
Year: 2012
Condition: For the year, very good overall condition, paint is good, no damage or repairs. This is a one owner machine and a well maintained sprayer.

Sprayer specification:
4200lts fully baffled tank
full in field tank washing with separate mounted clean water tank
Combi Steer – steering rear axles
12/24m booms with raise and lower, fold and boom tilt all fully hydraulic, independent boom incline
Electro hydraulic boom controls
6 piston pump AR 280 lts/min with sprayer self-fill and hose, 2 stage filtration
spray lines with 5 way nozzle assemblies and spray line re-circulation air shut off 6 sections
full in cab operation
low level chemical induction bowl with can washing
clothes locker and clean water for hand washing
fully braked axles and chassis suspension
Full road lighting

Control system:
GMR Switch Box – sprayer and electro hydraulics/steering functions
Tee Jet 844 auto rate

Wheel equipment:
Row crop: Starmax 460/85R38 – 70% good
LGP: Telleborg Twin 414 700/65R38 – worn tread but good

Supply options:

Supplied fully tested, serviced as required and 12 month NSTS certificate – POA

OR

Supplied ex yard as seen current NSTS October 2025 (test number 2040803), fully working ex farm: £10,000.00 (plus VAT)

IMG_1970

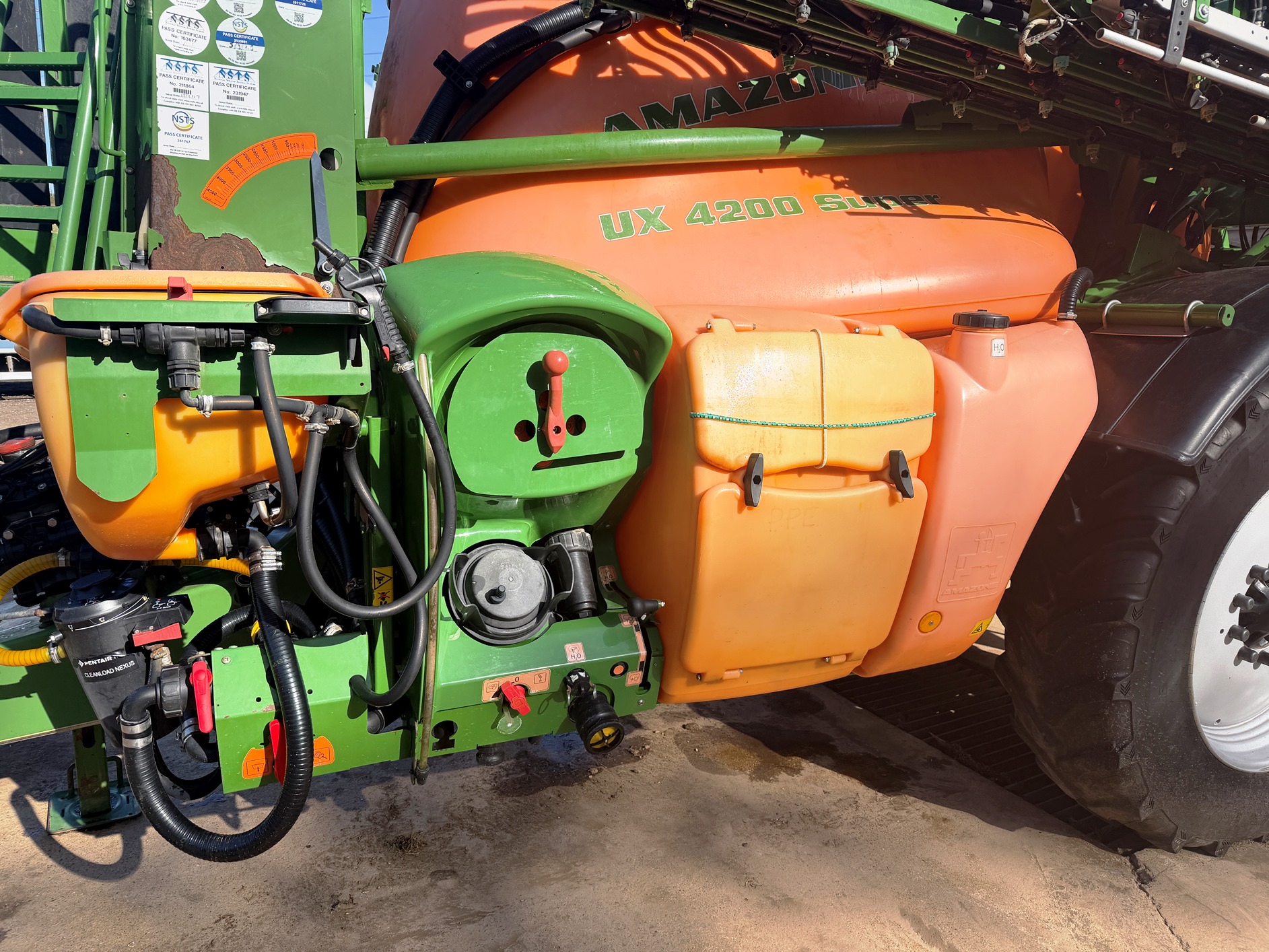

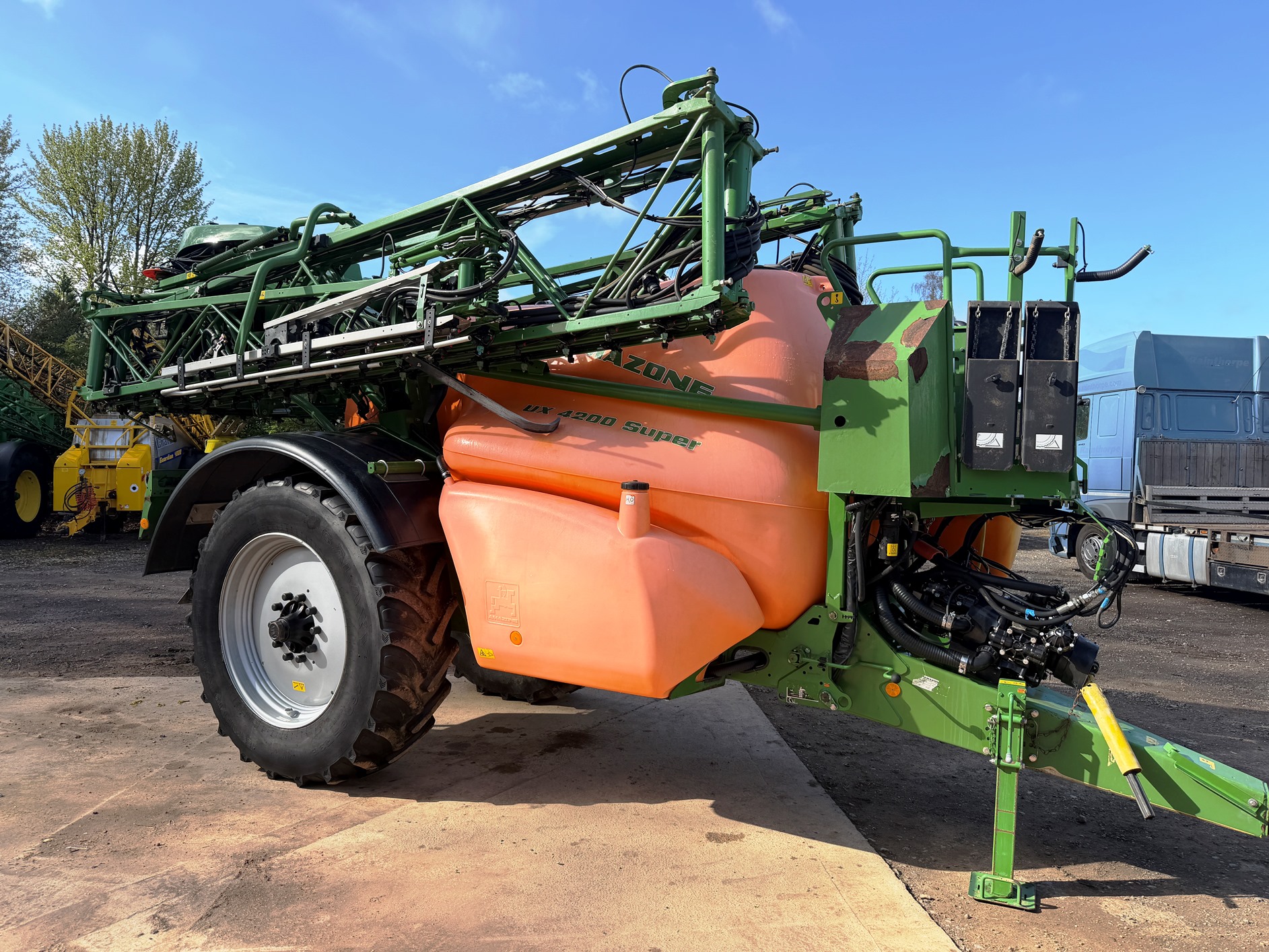

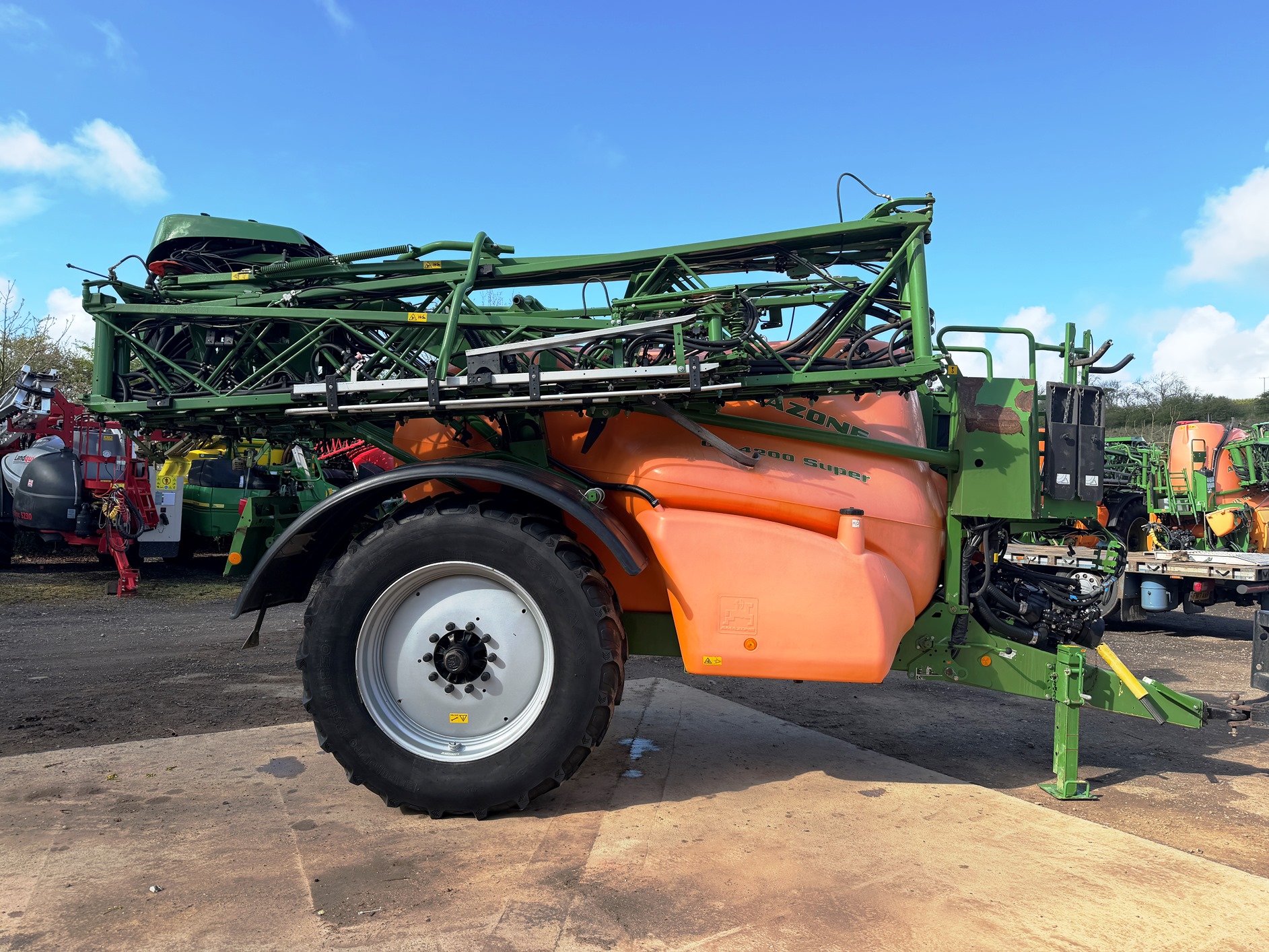

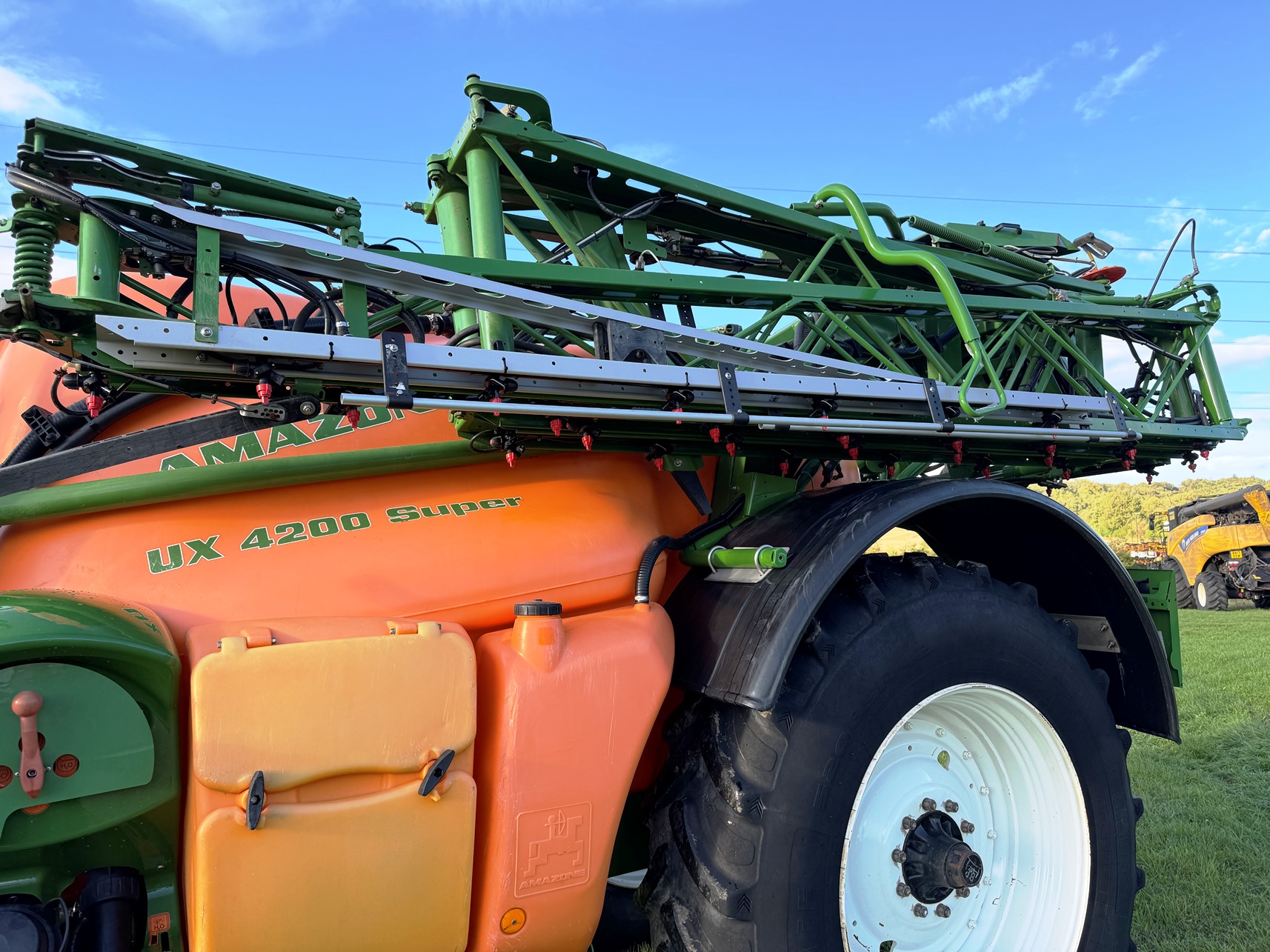

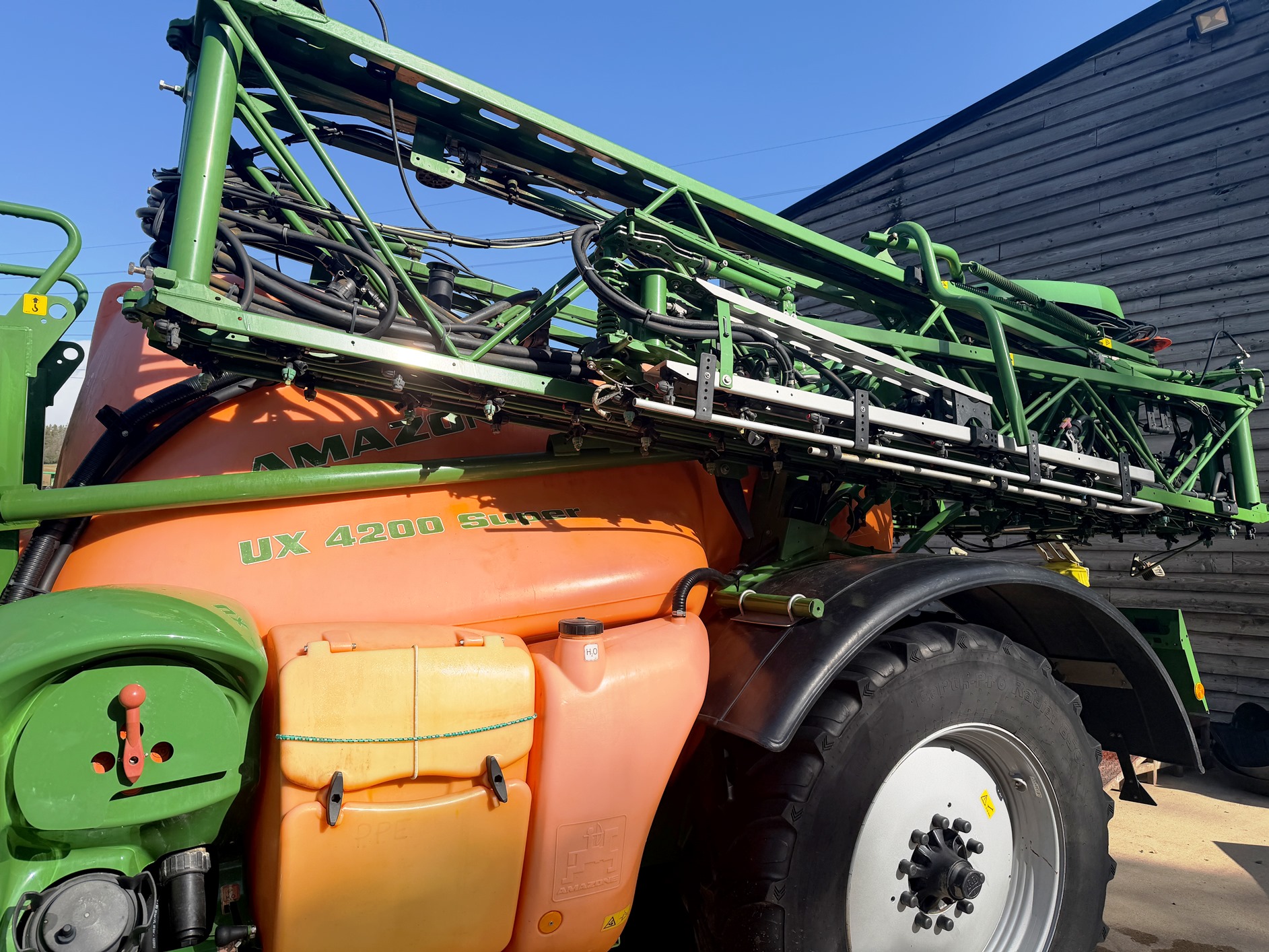

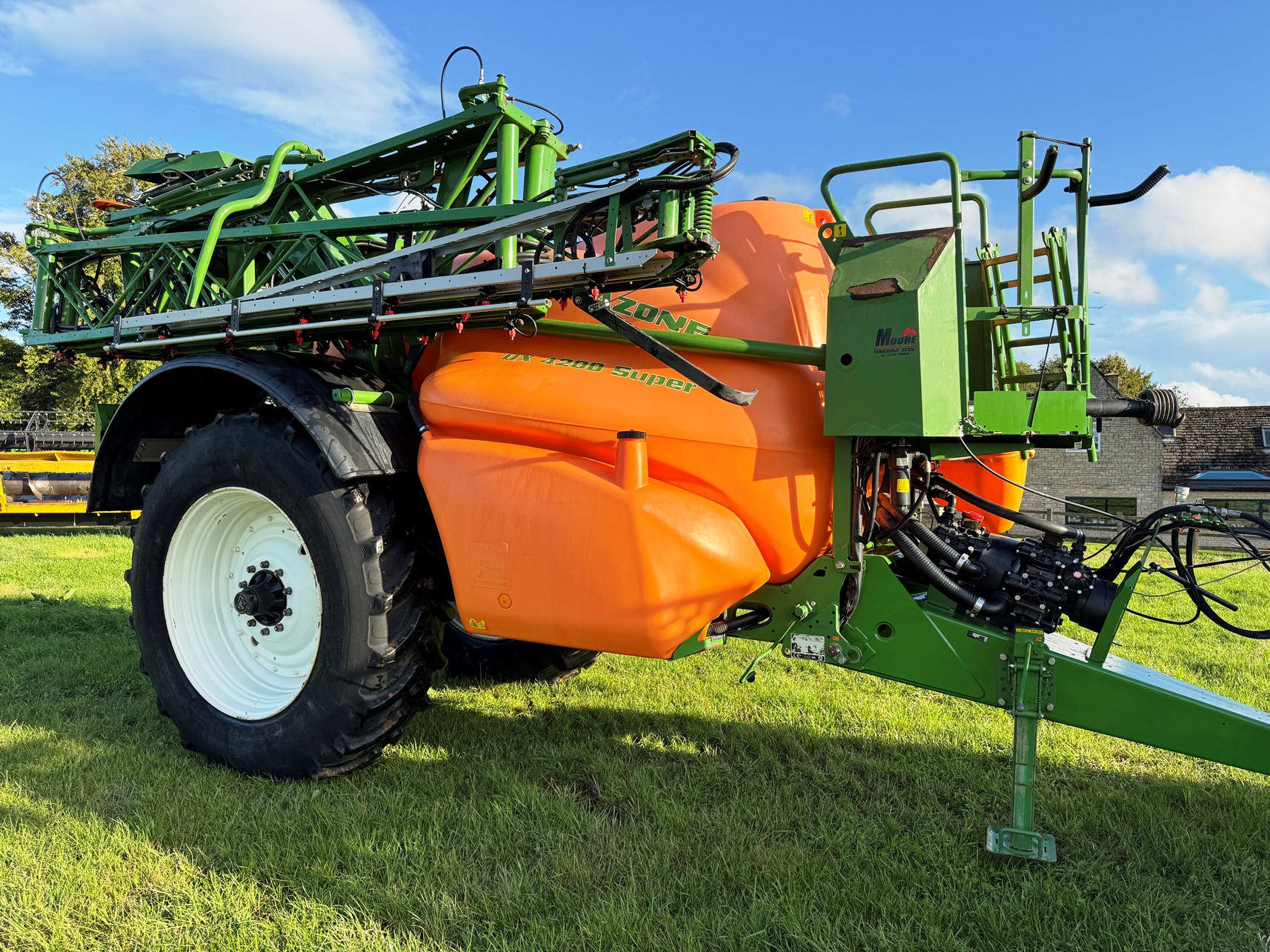

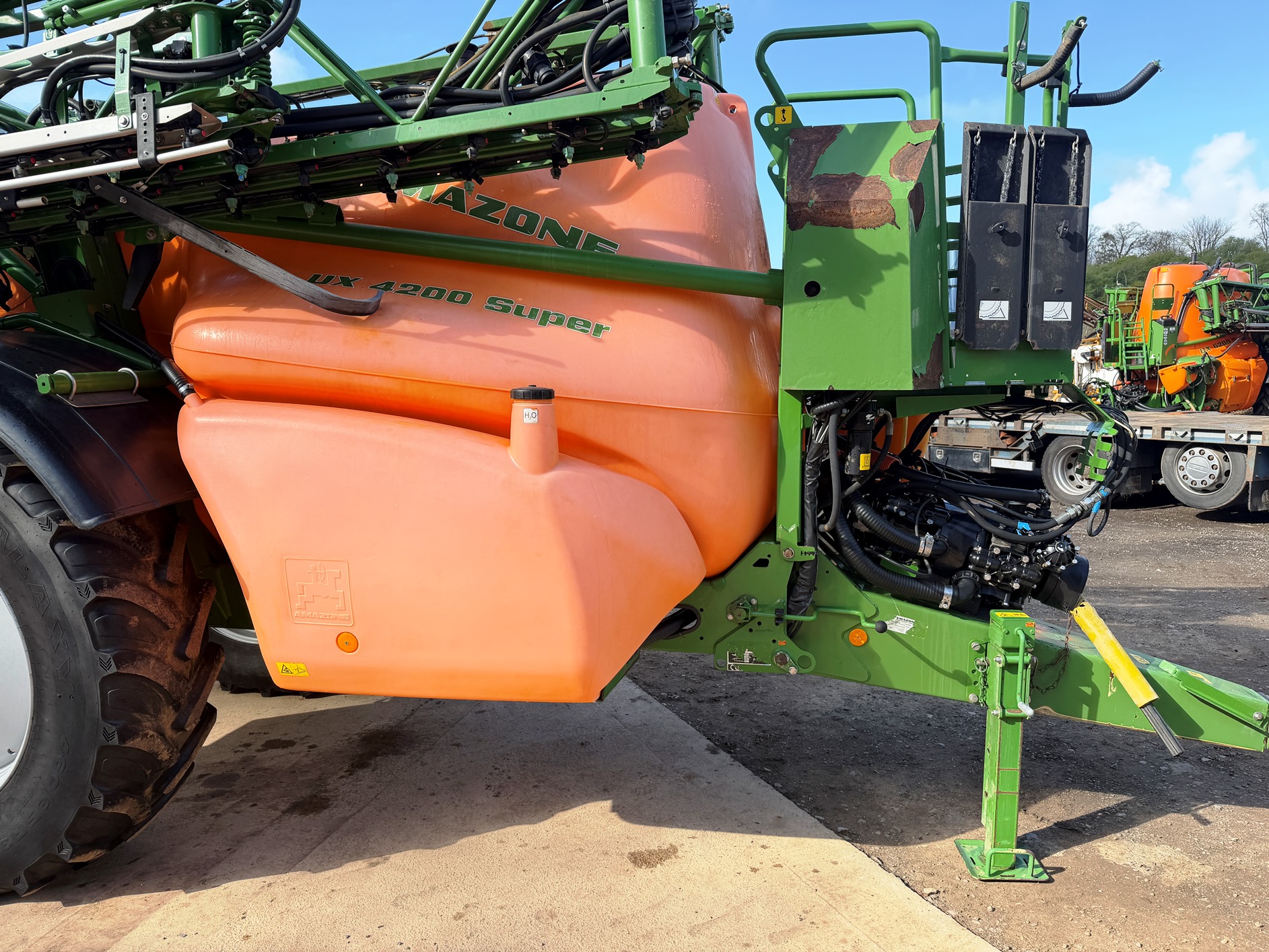

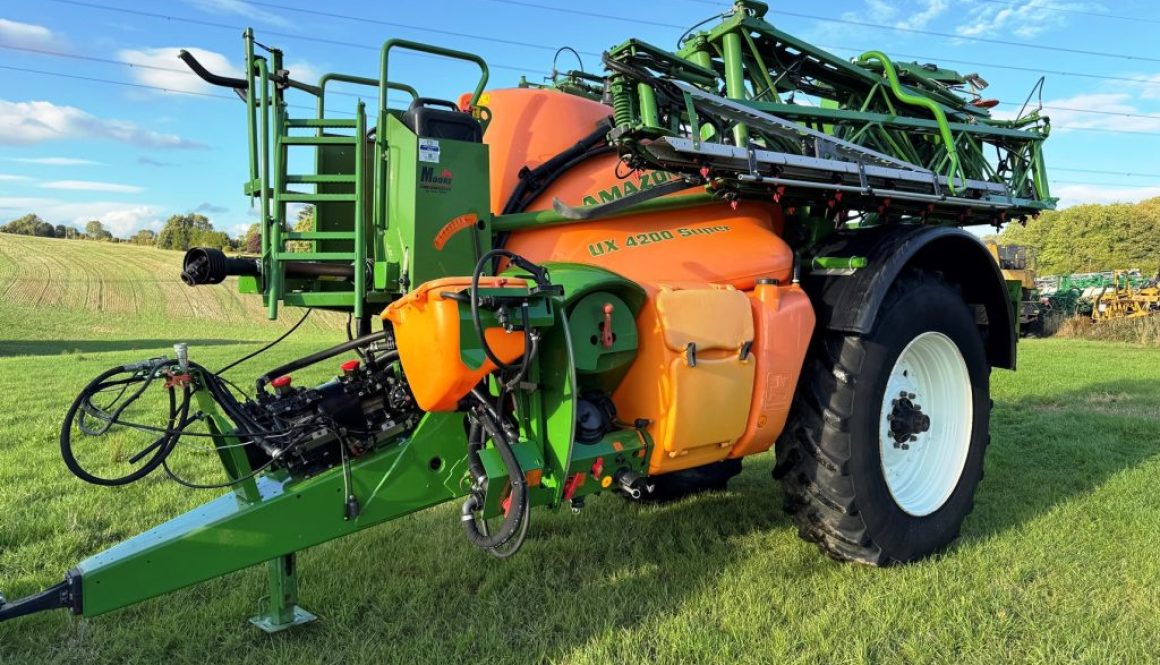

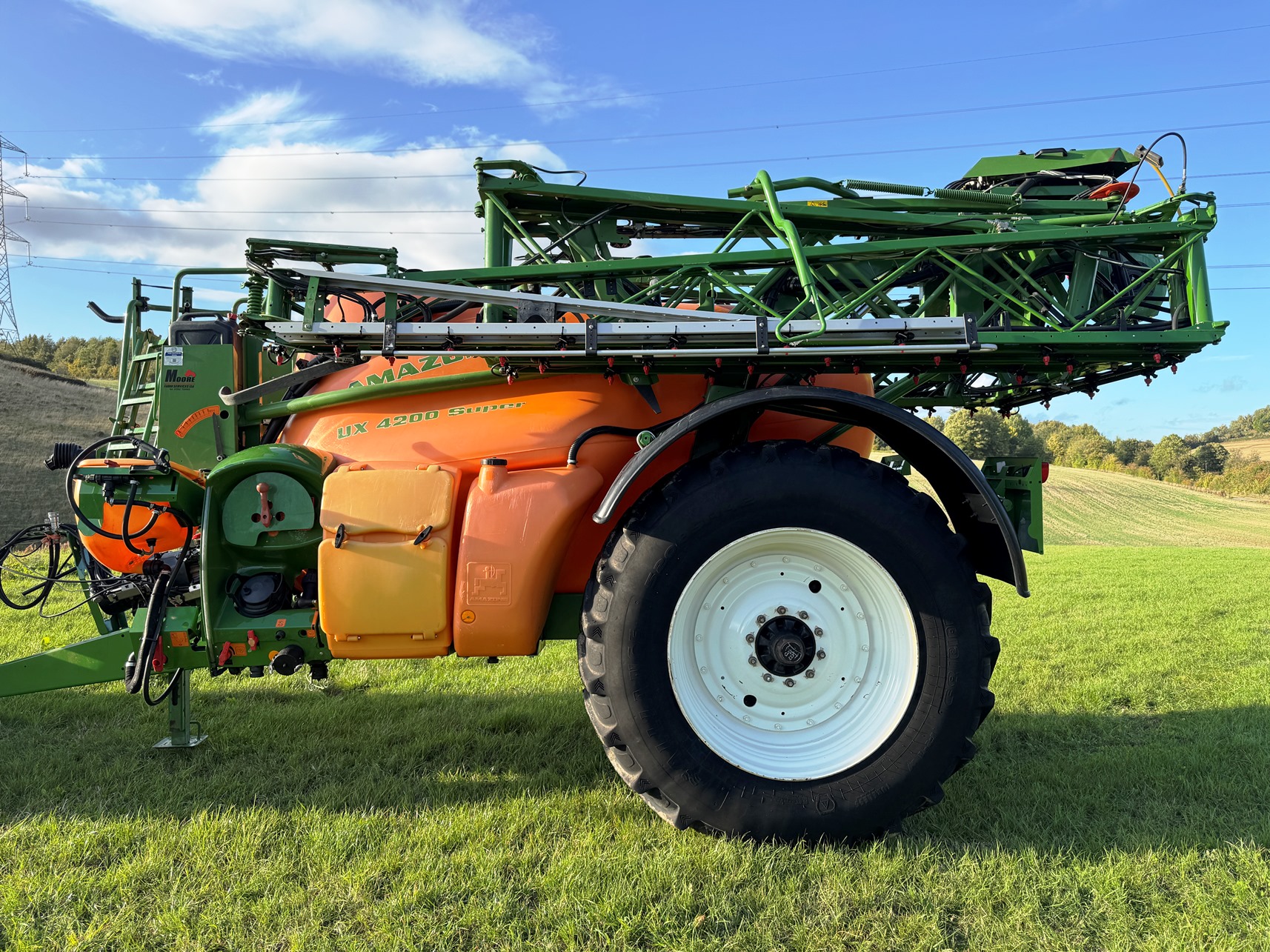

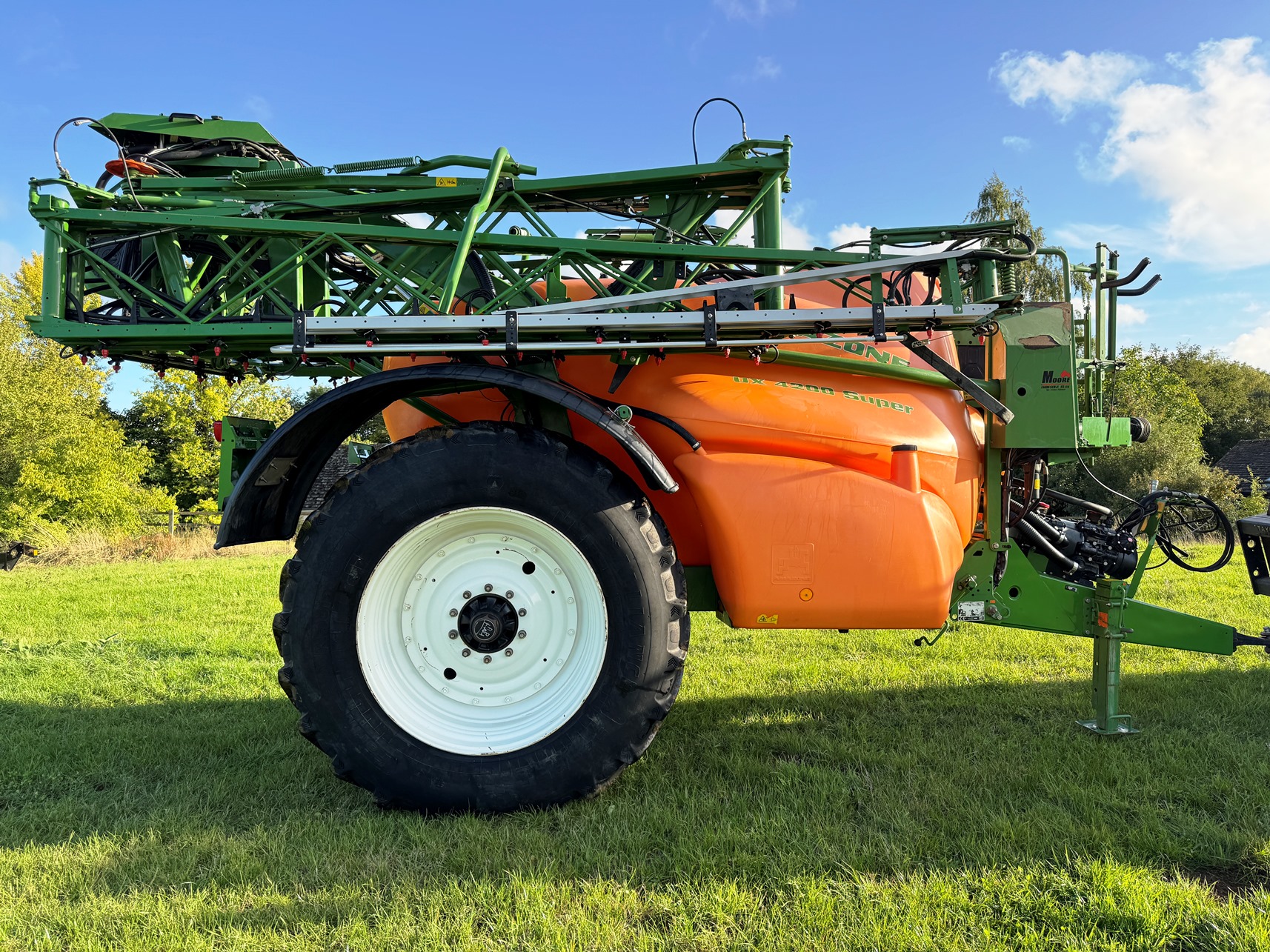

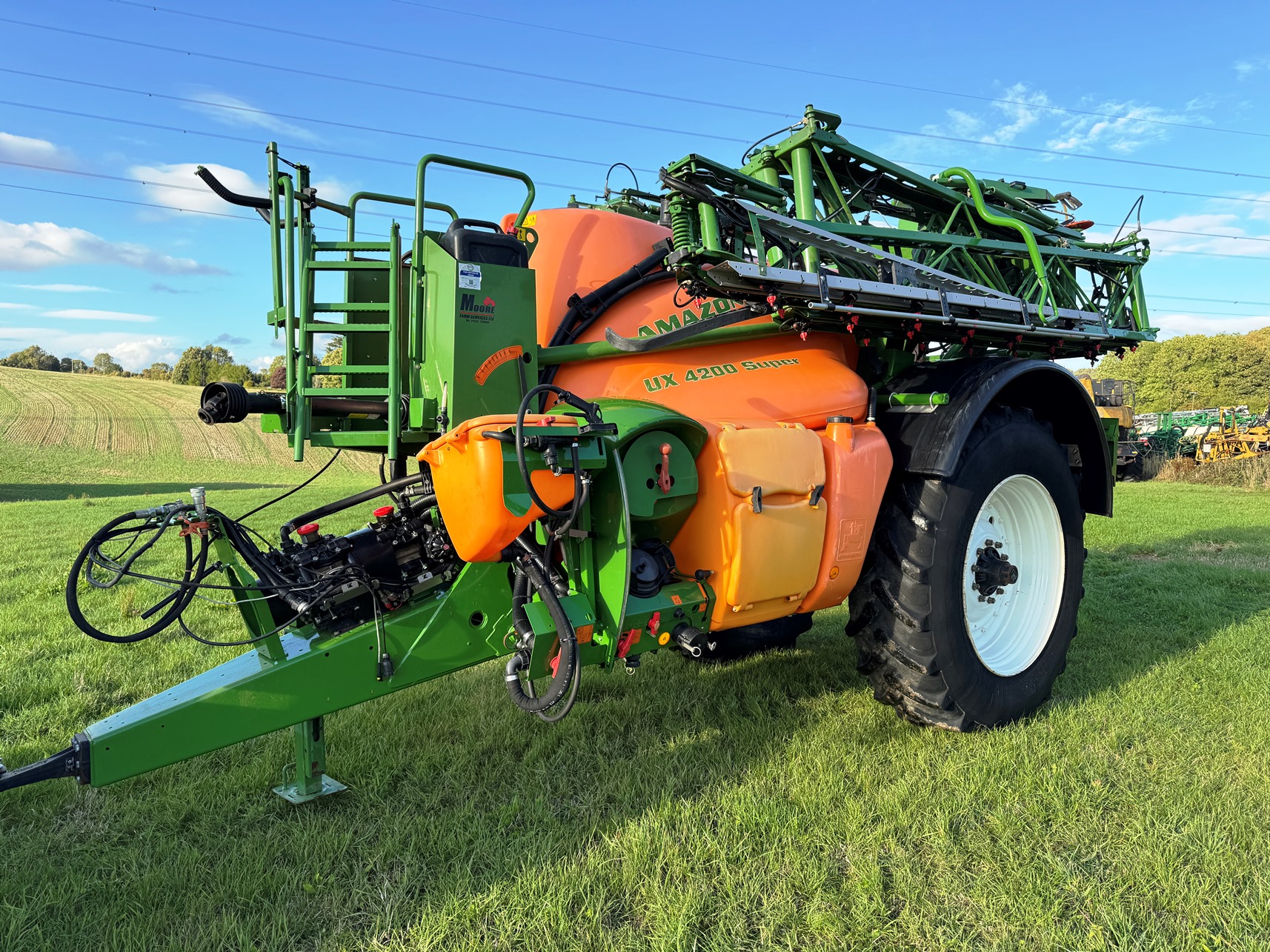

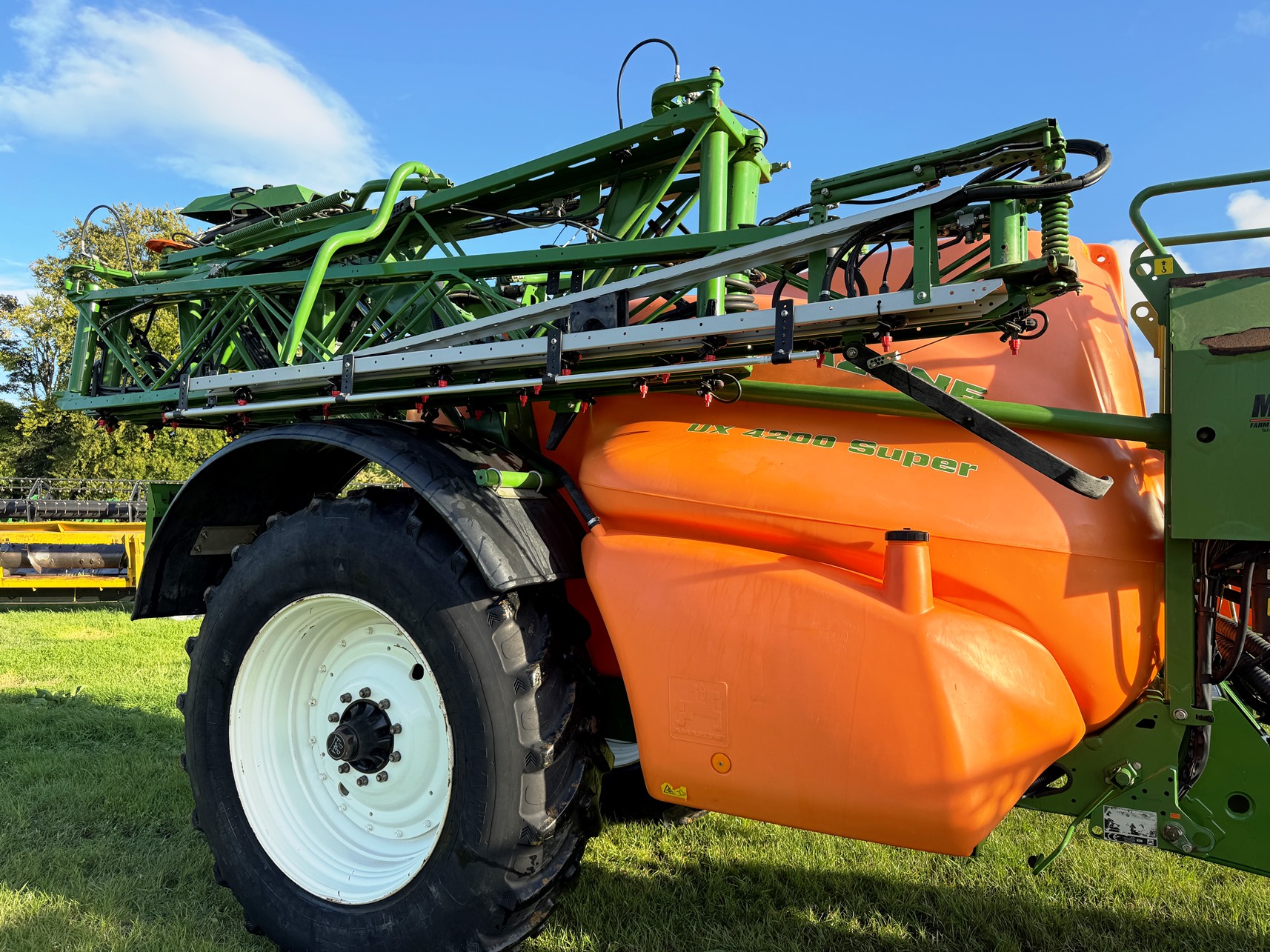

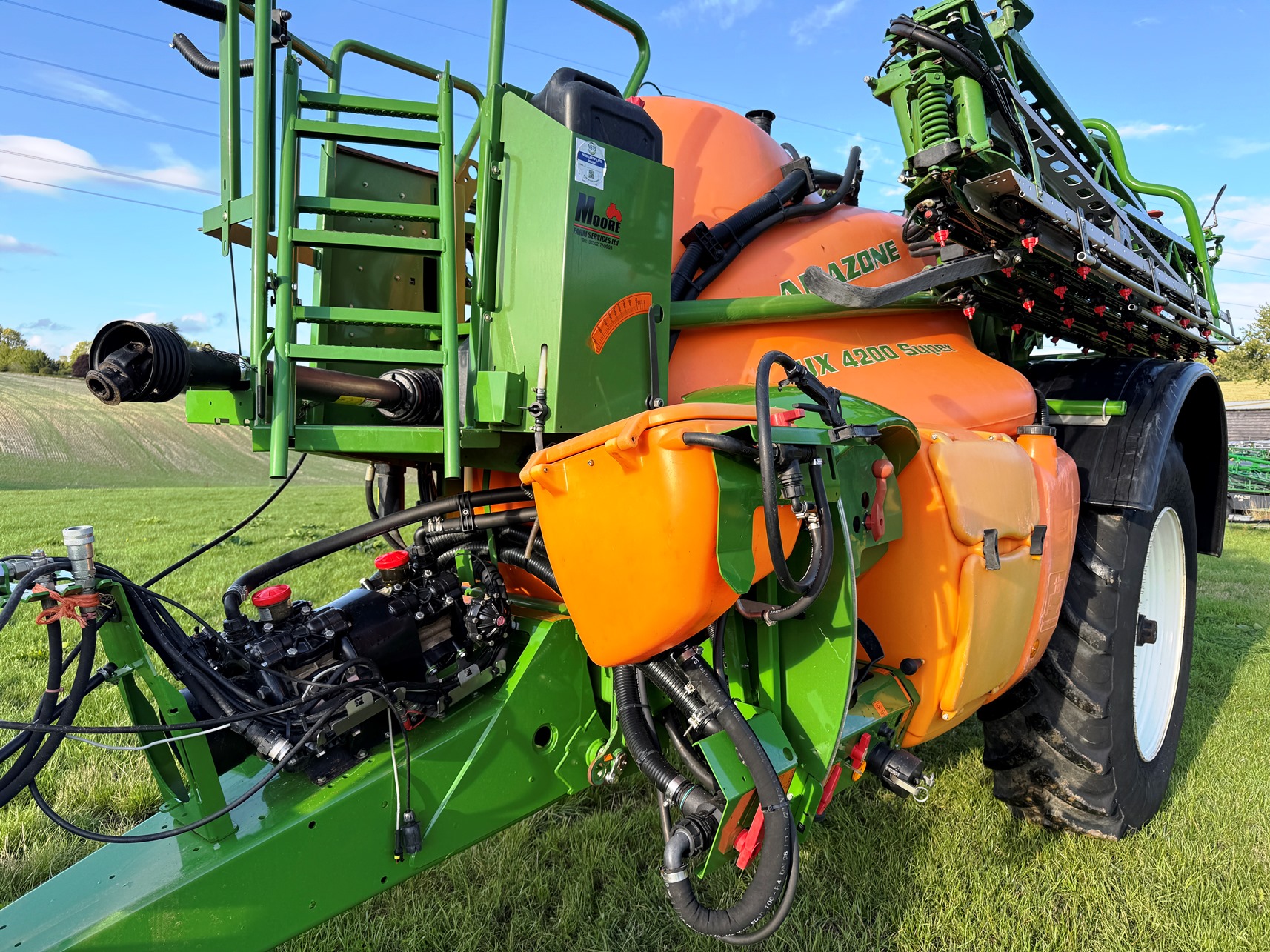

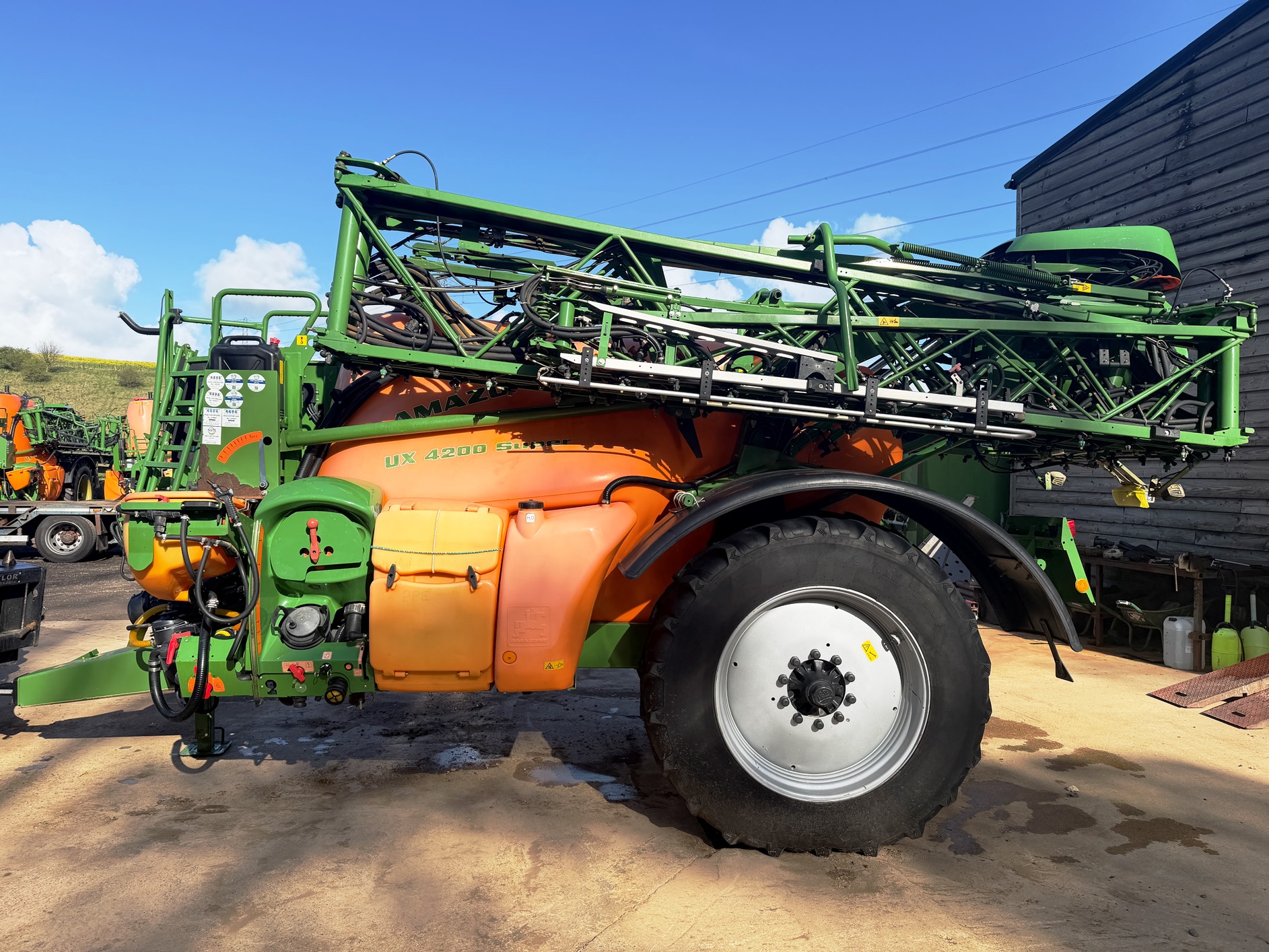

Amazone UX4200 Super 30m – 2013

Serial number: UX0000702

Age and condition:
Year: 2013
Hectares sprayed: 21280
Condition: a very clean tidy sprayer off an arable only farm and no liquid fertiliser use, no damage or repairs, all very straight and genuine.

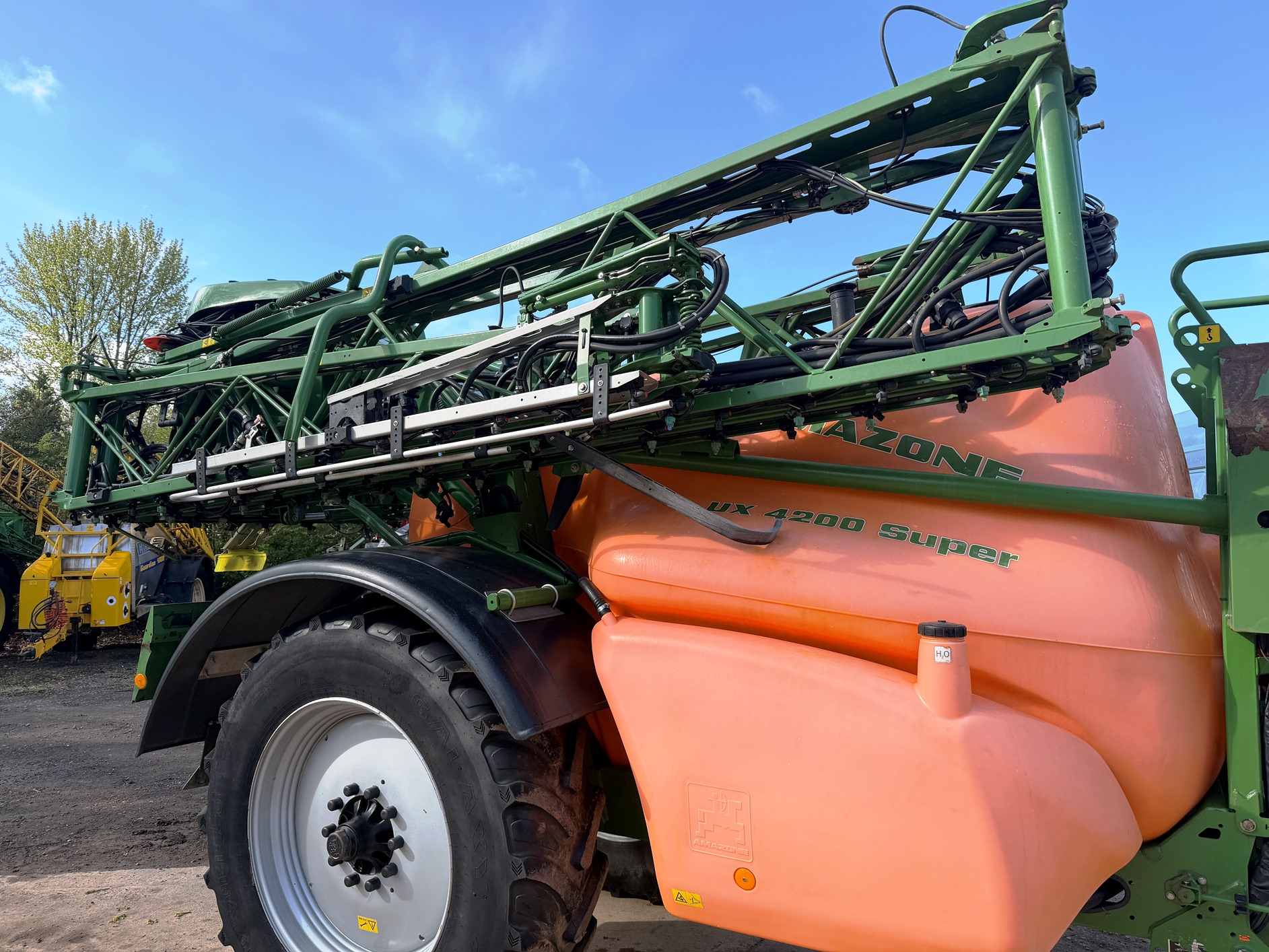

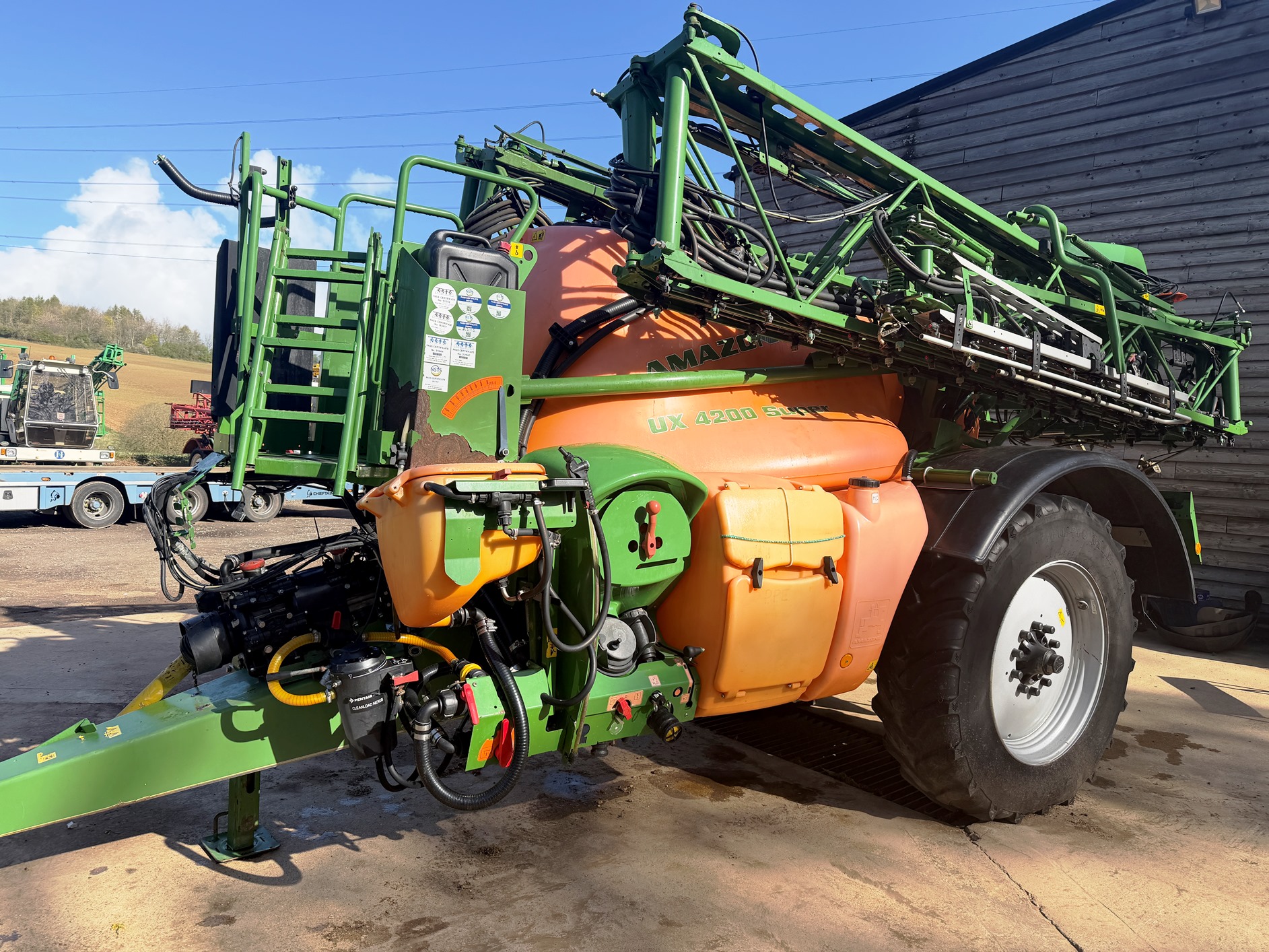

Chassis:
Auito steering axles; suspended draw bar with shock absorbance; hydraulic braking; road lights; demount stand.

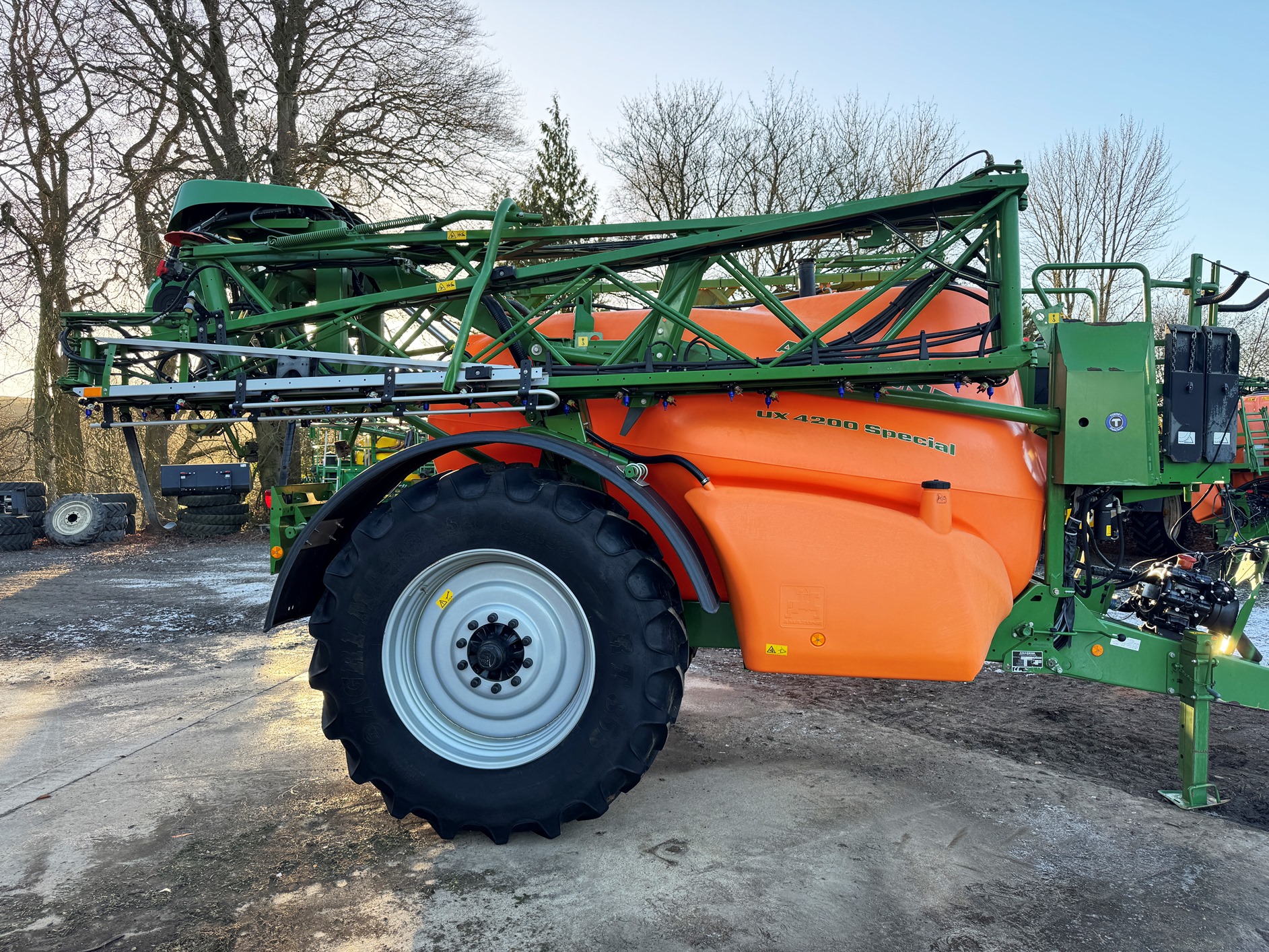

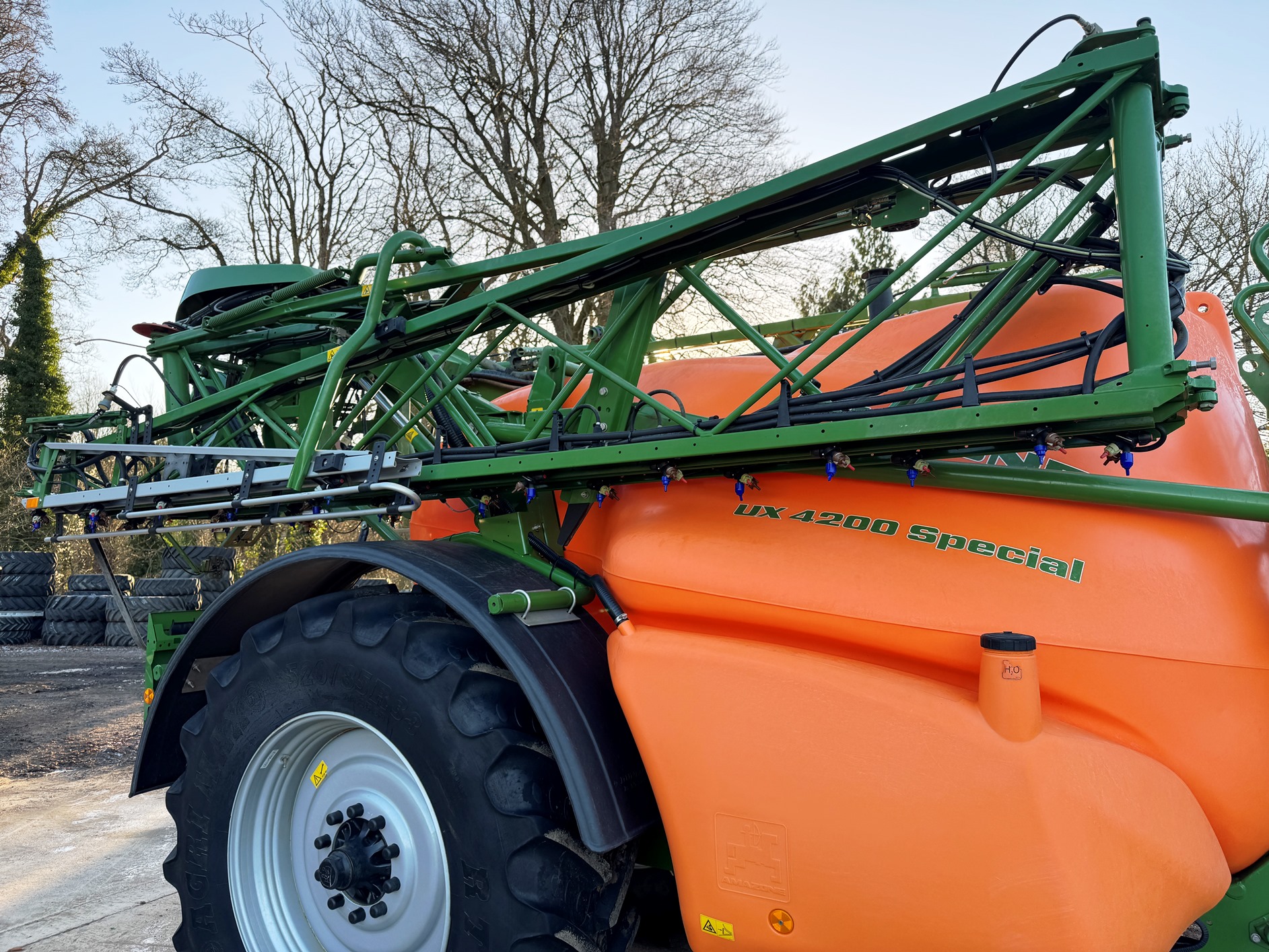

Sprayer specification:

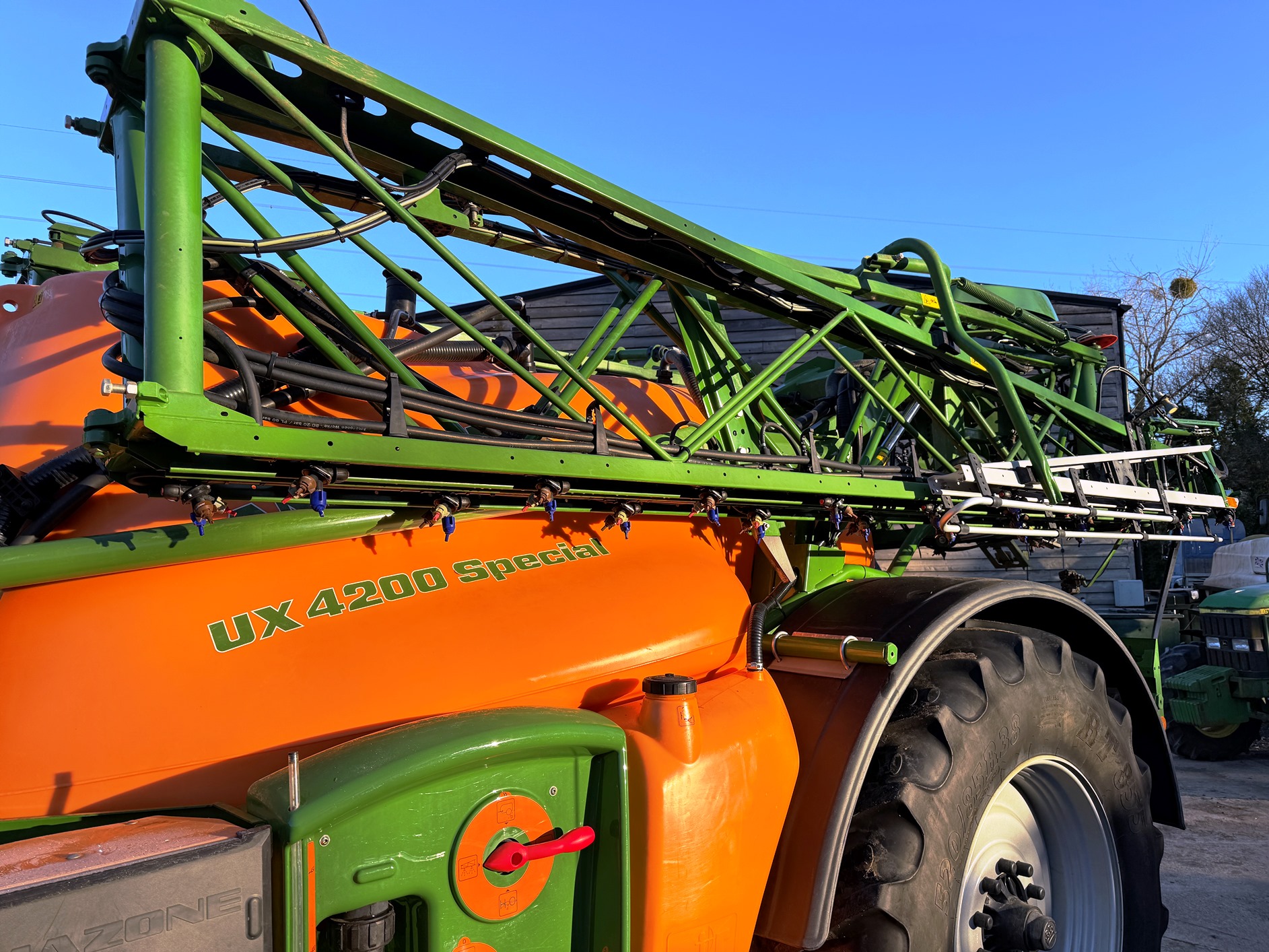

4200 lt polyethylene tank with low centre of gravity
full in field tank washing with separate clean water tank for in field tank washing
30m booms with break backs and multi shock absorbing parallelogram suspension – 24m spray option
Fully electro hydraulic boom controls with auto boom height control – distance control – and independent variable boom geometry
Central control system with adjustable hydraulic tank agitation
Low level chemical induction bowl with power injector for powders and can washing
Twin 6 piston diaphragm pump with self-filling and hose – 500 lts/min
spray lines fitted with DUS re-circulation and tri-jet nozzle assemblies; 11 sections
Protective clothes locker, external wash down kit and hand washing, road lights

Control systems:
ISOBUS – full operation
Ama-Pad screen – GPS auto section control activated – 11 sections
Auto boom height control and headland assist
Multi-Functional joy stick for all sprayer operations
24/30m spraying option – easy conversion to 28m –

Wheel equipment:
Intermediary: Alliance 520/85R43 – 60% good

Current NSTS valid until 23/07/2026 (test number 2054565): POA

or

Sold ex yard fully tested, serviced as required and a 12 month NSTS certificate: POA

Load More
